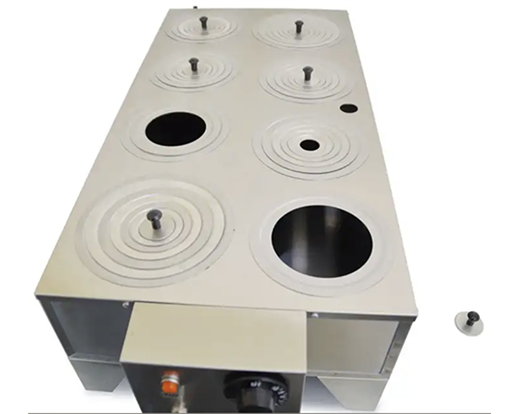

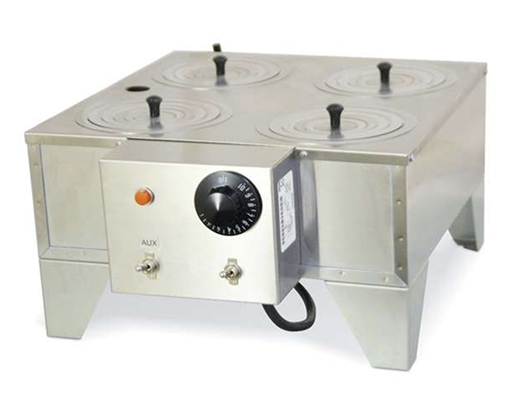

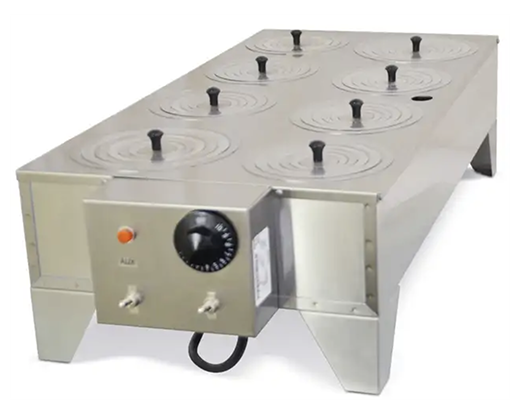

Concentric Ring Water Baths Models 1493RS and 1494RS, Boekel
Applications
Boekel Concentric Ring Water Baths are ideal whenever constant, gentle heat is required for applications such as:
Solvent extraction
Melting solids
Evaporating liquids
Analysis of total dissolved solids
KD concentration
Sludge drying
Features
2 year warranty
Four or eight openings
Heavy duty 3 inch legs permanently attached to the body
Two power settings, one for rapid heat up and one for reduced power consumption
Tubular heater, hydraulic thermostat
No wiring or assembly required
Hand crafted from stainless steel to ensure a long service life
Supplied with water level regulator and ring sets
Operating temperature range of 40°C to 100°C
| Catalog # |
W132-2 |
W132-4 |
W132-1 |
W132-3 |
| Model No |
1493 |
1493-2 |
1494 |
1494-2 |
Product Dimensions
Overall (w x l x h) |
36 x 36 x 20cm
(14 x 14 x 8 in) |
36 x 71 x 20cm
(14 x 28 x 8 in) |
| Interior Height: |
13 cm (5 in) |
13 cm (5 in) |
| No. of Openings: |
4 – 13 cm (5 in) diameter |
6 – 13 cm (5 in) diameter and
2 - 15 cm (6 in) diameter |
| Net Weight: |
4.5 kg (10 lb) |
7.3 kg (16 lb) |
| Shipping Weight: |
6.4 kg (14 lb) |
9.1 kg (20 lb) |
| Temperature Range: |
40°C to 100°C |
| Volume: |
14 liters |
28 liters |
| Electrical: |
1493: 115 VAC; 50/60 Hz; 1250W
1493-2: 230 VAC; 50/60 Hz; 1250W |
1494: 115 VAC; 50/60 Hz; 1800W
1494-2: 230 VAC; 50/60 Hz; 1800W |
