FI-Streem Glass Water Purification Stills, Labstrong
You have not viewed any products recently.
View Larger
FI-Streem Glass Water Purification Stills, Labstrong
- Space saving designs can be wall or bench mounted
- Fully automatic microprocessor controls
- Glass components prevent leaching of impurities into distilled water
Product Description

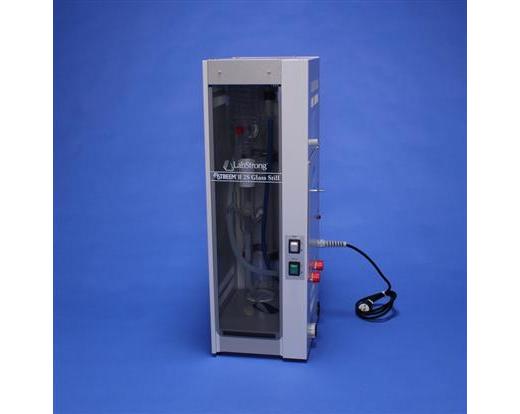

FI-Streem II 2S Glass Still
- Patented vapor trap eliminates carry-over of contaminants in the vapor-borne water droplets.
- Easy push-button controls for automatic operation.
- For convenience, FI-Streem II 2S was designed with dual feed capabilities for tap or pretreated feedwater.
- Includes over temperature and low water cutoff safety device.
- 24 hour automatic operation when used with a Model A1054 30L storage reservoir.
FI-Streem III 4 Liter and 8 Liter Glass Stills
- Patented vapor trap eliminates carry-over of contaminants in the vapor-borne water droplets.
- Totally enclosed still assures your safety from breakage or hot surfaces.
- Fully automatic microprocessor controls activated by pressing membrane touch pad control. Simplifies operation and cleaning, while also assuring high reliability.
- 24 hour automatic control activates still as required to maintain a full reservoir.
- Automatic drain cycle reduces frequency of cleaning.
- Thermistor and heat sensor offer double protection against low water conditions.
- For convenience, unit is designed with capabilities for tap or pretreated feedwater.
General Specifications
| Max Pressure |
Min Pressure |
Auto Stop/Start |
Auto Drain |
Low Water Cut-off |
| 80 psig |
15 psig |
yes - when connected to FI-Streem tank or using level monitor provided |
yes |
yes |
FI-Streem II 2S Glass Still
| Model No |
Product Water Capacity |
Cooling Water |
Overall WxDxH |
Operating Weight |
| A74415-60 |
1.5 LPH |
30 LPH |
10.5 x 13.8 x 31.5 in |
48.5 lbs |
| A74415 |
2.0 LPH |
30 LPH |
10.5 x 13.8 x 31.5 in |
48.5 lbs |
| A74410 |
2.0 LPH |
30 LPH |
10.5 x 13.8 x 31.5 in |
48.5 lbs |
| A74420 |
4.0 LPH |
60 LPH |
10.25 x 13.8 x 31 in |
38 lbs |
| A74428 |
4.0 LPH |
60 LPH |
10.25 x 13.8 x 31 in |
38 lbs |
FI-Streem III Glass Stills
| Model No |
Product Water Capacity |
Cooling Water |
Overall WxDxH |
Operating Weight |
| A56210-857 |
4 LPH |
60 LPH |
12 x 15 x 29.5 in |
65 lbs |
| A56218-857 |
4 LPH |
60 LPH |
12 x 15 x 29.5 in |
65 lbs |
| A56220-857 |
8 LPH |
120 LPH |
19 x 15 x 29.5 in |
80 lbs |
| A56228-857 |
8 LPH |
120 LPH |
19 x 15 x 29.5 in |
80 lbs |
