Filtration, HPLC Liquid Waste Disposal, EZwaste®
You have not viewed any products recently.
View Larger
Filtration, HPLC Liquid Waste Disposal, EZwaste®

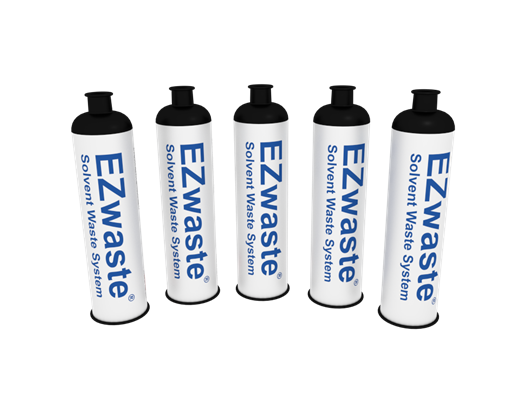

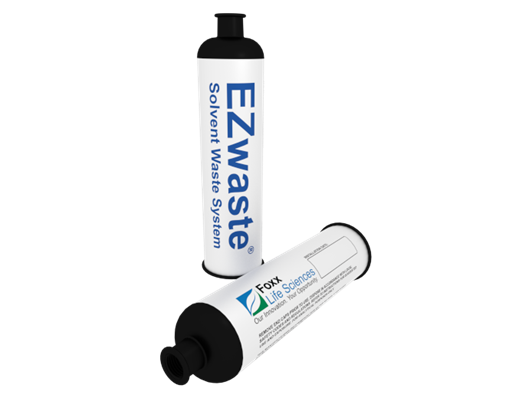

EZwaste Solvent Waste System
The Replacement Chemical Exhaust Filter EZwaste® Solvent Waste System is designed to be an affordable solution for HPLC liquid waste disposal. Each system is manufactured to safely collect waste from two HPLC machines. This system features an activated carbon filter which traps volatile organic compounds from being released into the air. This prevents chemicals from being inhaled by lab workers and provides an easy mechanism of disposal for vapor wastes. The EZwaste® Solvent Waste system also features a closed loop design which protects against leaks and spills, improving overall lab safety.

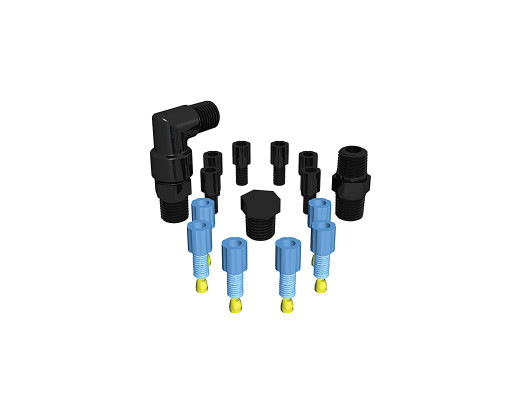

EZwaste Safety Vent Replacement Fittings Kit - 1/8" OD and 1/4" Fittings
The 1/8 inch OD and 1/4 inch Fittings Kit is the replacement to be used with the EZwaste Safety Vent. Each fittings kit includes 6 nuts and ferrules fittings, 6 fitting plugs, 1 straight filter fitting, 1- 90° elbow fitting, and 1 filter fitting plug.
The EZwaste Solvent Waste System is designed to be an affordable solution for HPLC liquid waste disposal. Each system is manufactured to safely collect waste from two HPLC machines. This system features an activated carbon filter which traps volatile organic compounds from being released into the air. This prevents chemicals from being inhaled by lab workers and provides an easy mechanism of disposal for vapor wastes. The EZwaste Solvent Waste system also features a closed loop design which protects against leaks and spills, improving overall lab safety.
Safety Vent Replacement Fittings Kit
- Nut Material: Delrin
- Nut Color: Blue
- Fitting Plug Material: Delrin
- Fitting Plug Color: Black
- Ferrule Material: ETFE
- Ferrule Color: Yellow
- Filter Fitting & Plug Material: Polypropylene
- Filter Fitting & Plug Color: Black
- Nut fitting Dimensions (H x OD): 22.2 x 9.5mm
- Plug fitting Dimensions (H x OD): 22.2 x 9.5mm
- Filter Fitting Thread: 1/4 inch
- Quantity: Kit includes 6 nuts and ferrules fittings, 6 fitting plugs, 1 straight filter fitting, 1- 90° elbow fitting, and 1 filter fitting plug
|

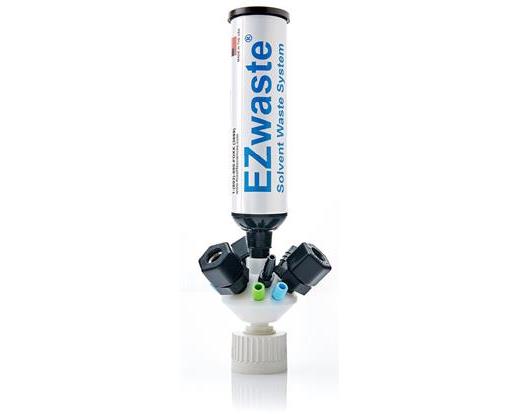

HPLC 38-430 Cap Assembly
- Cap Material: Polypropylene
- Cap Size: 38-430
- OD Tubing Ports: 3 x 1/8 inch or 1/16 inch - 3 x 1/4 inch
- Hose Barb: 3 x 1/4 inch HB & 3/8 inch HB
- Filter Length: 6.97 inch (177mm)
- Filter Base Diameter: 1.89 inch (48mm)
- Filter Top Diameter: 1.73 inch (44mm)
- Filter thread: 1/4 inch
|
