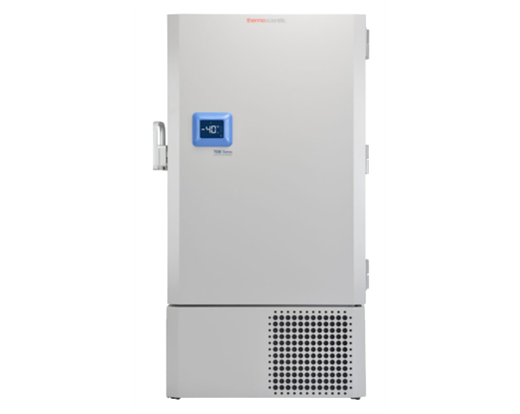

Freezers, TDE Series, -40°C Ultra-low Temperature Freezer, Thermo Scientific
Dependable storage with operational savings and sustainability
- Easy to use- plug in and go; no setup required
- H-drive Information Center (HIC) combines easy-to-read temperature with simple capacitive touch buttons
- Advanced security features- alarm settings, setpoint security passcode, and padlock compatible doors
- Egonomic design- single-hand door operation, eye-level display, and shelf-level placement that do not require floor-level loading of racks

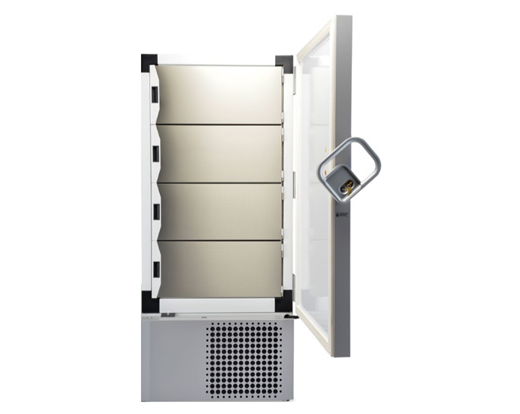

- Four inner doors minimize ambient temperature during sample retrieval
Designed to keep your samples safe
- Worry-free storage; with low peak variation, samples are protected throughout the entire cabinet
- Secure freezer settings with sample security
- Backed by our Global Service and Support Team
Limit environmental impact and lower HVAC costs
- Uses as low as 4.4 kWh/day, depending on size
- Less heat emission lowers HVAC costs
- SNAP compliant, natural hydrocarbon refrigerants
- Environmentally-friendly, waterblown foam insulation is compliant with SNAP
- Manufactured in an award-winning, zero-waste-to-landfill facility
User-friendly and quiet
- New HIC touch screen user interface
- Quiet enough to reside directly in the laboratory; at just 48 dBA, the sound is comparable to a home refrigerator
Designed for ease of use with a focus on product reliability with no sacrifice to performance
- Energy reduction saves on electricity
- Heat output reduction saves on HVAC need/continued cost
- Lower noise allows for “in lab” equipment positioning minimizing footsteps
- Plugs into a normal outlet
- Sets the baseline for our warranty coverage
- *R208-109 includes: 10 sliding drawer racks and 250 2-inch boxes with 100-count cell dividers
| |
R208-103 |
R208-104 |
R208-105 |
R208-106 |
R208-107 |
R208-108 |
| Capacity |
19.4 cu.ft. (549L) |
24.1 cu.ft. (682L) |
28.8 cu.ft. (816L) |
| Cap-2"box/2mL vial |
400 / 40,000 |
500 / 50,000 |
600 / 60,000 |
| Capacity/shelf |
166 lb (75kg) |
206 lb (93kg) |
246 lb (111kg) |
| Dimensions (exterior) |
78.0 x 28.3 x 38.5 inch
(198.1 x 71.9 x 97.7cm) |
78.0 x 34.0 x 38.5 inch
(198.1 x 86.4 x 97.7cm) |
78.0 x 39.6 x 38.5 inch
(198.1 x 100.6 x 97.7cm) |
| Dimensions (interior) |
51.2 x 23.1 x 28.3 inch
(130.1 x 58.8 x 71.9cm) |
51.2 x 28.8 x 28.3 inch
(130.1 x 73.0 x 71.9cm) |
51.2 x 34.4 x 28.3 inch
(130.1 x 87.3 x 71.9cm) |
| Door Style |
1 outer, 4 inner |
| Temperature Range |
-10°C to -40°C |
| Electrical Requirements |
115V/60Hz/ 7.2A |
208-230V/ 60Hz/3.4A |
115V/60Hz/ 7.5A |
208-230V/ 60Hz/4A |
115V/60Hz/ 7.5A |
208-230V/ 60Hz/4A |
| Weight |
687 lb (312kg) |
734 lb (333kg) |
820 lb (372kg) |
| Shelves |
3 |
| Plug Type |
NEMA 5-20 |
NEMA 6-15 |
NEMA 5-20 |
NEMA 6-15 |
NEMA 5-20 |
NEMA 6-15 |
| Certification, Compliance |
cULus |
| Smart View Compatible |
Yes |
| Display |
HIC 5.6 inch 7-segment display with capacitive touch buttons |
| Refrigerant |
R290 |
| Defrost |
Manual |
