Fume Hoods, Safety Fume Hood

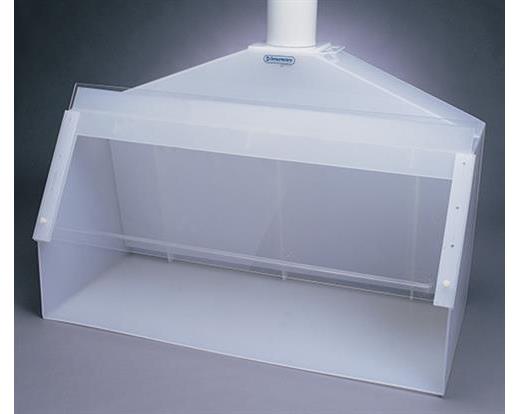

Fabricated Fume Hoods
The translucent polypropylene plastic hood is non-conductive, chemical-resistant and corrosion-proof.
- Clear acrylic sash provides unimpeded visibility and light to the work area; may be set open at three positions from 25cm (10 inch) to 53cm (21 inch)
- Durable construction includes 6.4mm (1/4 inch) thick polypropylene with heavier sections where needed
- Full length, 3.2mm (1/8 inch) thick interior baffle directs airflow across the table surface as well as vertically
- Stack has a 15.2cm (6 inch) outside diameter, with a damper
- Outside dimensions: (WxDxH) 122 x 61 x 91cm (48 x 24 x 36 inch)
- Exhaust system capable of drawing 500 cfm (free air) is recommended
- Shipped in a crate; weight 45.4 kg. (100 lbs)

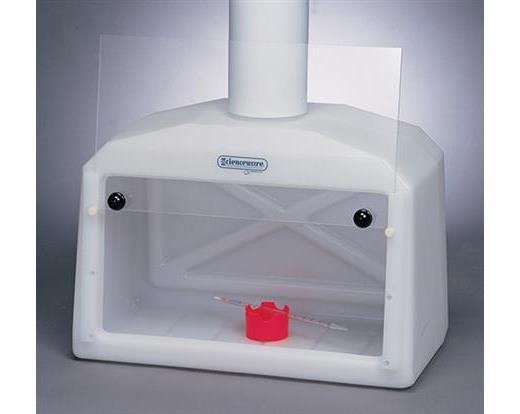

Benchtop Fume Hoods
Designed for small facilities or installations in which a number of fume hoods are needed, this unit is excellent for use in schools, junior colleges and universities.
- One-piece shell molded of chemical resistant polyethylene with rounded inside corners for easy cleaning
- Clear acrylic sash slides on a track featuring stop pins for open, closed or intermediate positions; bottom gap allows for continuous air flow
- Front opening: (WxH) 56 x 30cm (22 x 12 inch)
- Stepped exhaust duct can be used with either a 12 or 15cm (4 or 6 inch) diameter duct
- Exhaust system capable of drawing 200 cfm (free air) is recommended
- Overall dimensions: (WxDxH) 69 x 33 x 56cm (27 x 13 x 22 inch) Shipping weight: 17 kg. (38 lbs)
