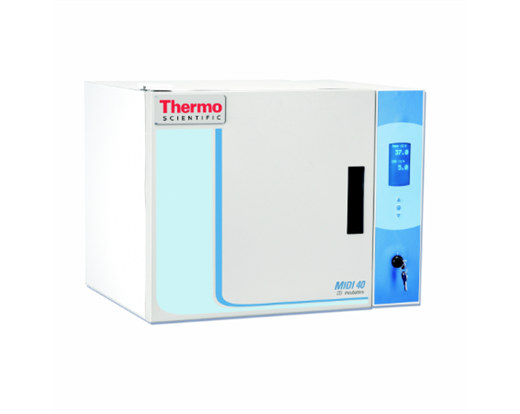

Midi CO2 Incubators, Thermo Scientific
Midi CO2 Incubators
Safely and efficiently operate Thermo Scientific Midi 40 CO2 Incubators. They use the Thermo Scientific IntrLogic™ II microprocessor-based control system with alphanumeric setpoint display of temperature, CO2, alarm, calibration and diagnostic functions. Enhanced microprocessor-based IntrLogic II control provides comprehensive control, monitoring and display of all incubator systems for safe, efficient operation. This is a fully featured 1.4 cu.ft. (40L) incubator occupying less than 2 sq.ft. (0.6m2) of space.
Key Features:
- Provides convenient personalized culture space for undisturbed incubation conditions and avoidance of contamination risk
- Ideal for small-sample throughput requirements
- Less than 24″ (61cm) wide, the compact Midi features digital read-out and alphanumeric displays to simplify operation and monitoring
IntrLogic II Microprocessor Control:
- Factory calibration maintains accurate thermal gas performance
- Microprocessor-based automatic thermal conductivity CO2 control
- Three-button touchpad control and setpoint security
- Comprehensive alarm system with audible and visual alerts monitors temperature and CO2 functions Temperature range: 5°C above ambient to 60°C
- Temperature control ±0.1°C EasyView™ highly visible vacuum-fluorescent display
Construction:
- Reinforced cabinet permits stacking
- Scratch-resistant, high-impact painted finish for easy cleaning
- Solid outer door closes gently against the cabinet with a magnetic gasket
- Tempered glass inner door is heated by outer door to prevent condensation
- Nonporous silicon gasket maintains chamber integrity
- Seamless stainless-steel interior chamber
- Radiant wall heating provides accurate, uniform temperature with natural air convection
- Four stainless steel shelves
- Heated, removable humidity pan generates RH values to 95% with rapid recovery rates to promote optimal cell growth
| Chamber Material |
stainless-steel interior with coved corners |
| CO2 Concentration Range |
0 to 20% |
| CO2 Sensor Technology |
TC |
| Humidity Delivery |
Water Pan |
| Relative Humidity |
Ambient to 95%, controlled |
| Temperature Range (Metric) |
5° to 60°C |
| Height Exterior (Metric) |
18 inch (46.5cm) |
| Width Exterior (Metric) |
24 inch (60cm) |
| Height Interior (Metric) |
14 inch (35.5cm) |
| Depth Interior (Metric) |
12 inch (30cm) |
| Width Interior (Metric) |
13.5 inch (33.5cm) |
| Shipping Weight (Metric) |
70 lb. (32kg) |
| Shelves |
4 each |
| Voltage |
120V; 230V |
| Amperage |
1.5A; 1A |
| Data Outputs |
RS485 |
| Cabinet Material |
18-gauge, cold-rolled steel |
| Hertz |
60Hz; 50/60Hz |
| Ports |
N/A |
| Capacity (Metric) |
1.4 cu.ft. (40L) |
| Shelf Material |
Stainless-steel |
| Certifications/Compliance |
CE, UL, cUL |
