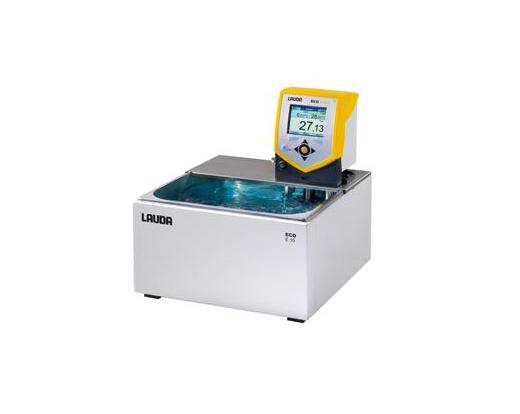

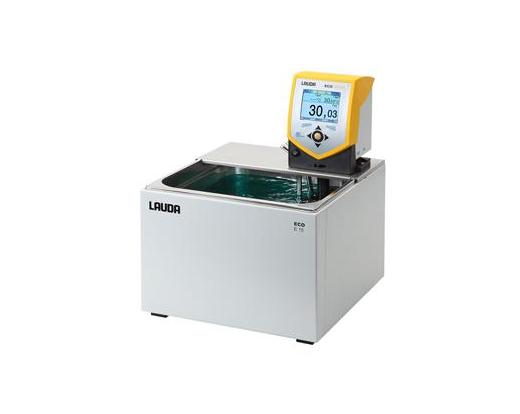

Lauda Heating Bath/Circulator, ECO Models E4G, E10G, E15G, E20G
All Models include:
Thermostatic bath with latest microprocessor technology
Colored TFT display for simultaneous indication of actual and set values and grafic illustration of the temperature profile
Clear text menu navigation
Easy input via cursor and soft keys
Fully electronic continuous controller with PID action
Safety class III for operation with flammable and non-flammable liquids. Over-temperature cut-out adjustable via menu
Vario pump with six adjustable performance levels
Easy control of the flow rate between internal and external circulation during operation without contact with the bath
USB interface as standard
Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus)
Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
Integrated programmer with max. 150 segments, splitable in 5 programmes
Cooling coil as standard
Bath vessel made from stainless steel with drain valve

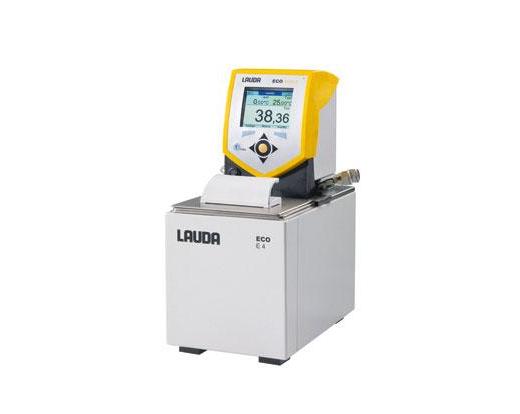

Additional Features for ECO E4G (W328-6 and W325-26):
Over-temperature cut-out adjustable via menu
Pump connectors as standard
| Model Number |
Power |
Working Temperature Range |
Working Temperature Range With External Cooling |
Temperature Control |
Heater Power |
Pump Pressure Max. |
Pump Flow Max. |
Bath Volume |
Size of Bath (W x D x H) |
Overall Dimensions (W x D x H) |
|
| W328-6 |
115V, 60 Hz |
20°C to 200°C |
-20°C to 200°C |
±0.01°C |
2.6 kW |
0.55 bar |
22L/min |
3.5 L |
105 x 135 x 150 mm |
168 x 272 x 376 mm |
| W325-26 |
220V, 60 Hz |
20°C to 200°C |
-20°C to 200°C |
±0.01°C |
2.6 kW |
0.55 bar |
22L/min |
3.5 L |
105 x 135 x 150 mm |
168 x 272 x 376 mm |
| W325-28 |
115V, 60 Hz |
20°C to 200°C |
-20°C to 200°C |
±0.01°C |
2.6 kW |
0.55 bar |
22L/min |
11 L |
300 x 190 x 150 mm |
331 x 361 x 376 mm |
| W325-27 |
220V, 60 Hz |
20°c to 200°C |
-20°C to 200°C |
±0.01°C |
2.6 kW |
0.55 bar |
22L/min |
11 L |
300 x 190 x 150 mm |
331 x 361 x 376 mm |
| W325-30 |
115V, 60 Hz |
20°C to 200°C |
-20°C to 200°C |
±0.01°C |
2.6 kW |
0.55 bar |
22L/min |
16 L |
300 x 190 x 200 mm |
331 x 361 x 426 mm |
| W325-29 |
220V, 60 Hz |
20°C to 200°C |
-20°C to 200°C |
±0.01°C |
2.6 kW |
0.55 bar |
22L/min |
16 L |
300 x 190 x 200 mm |
331 x 361 x 426 mm |
| W328-8 |
115V, 60 Hz |
20°C to 200°C |
-20°C to 200°C |
±0.01°C |
2.6 kW |
0.55 bar |
22L/min |
19 L |
300 x 365 x 150 mm |
331 x 537 x 376 mm |
| W328-14 |
220V, 60 Hz |
20°C to 200°C |
-20°C to 200°C |
±0.01°C |
2.6 kW |
0.55 bar |
22L/min |
19 L |
300 x 365 x 150 mm |
331 x 537 x 376 mm |
Ordering Info
| Cat No |
Vendor Part No |
Power | Temperature Range | Temperature Control | Bath Volume |
Qty |
Price |
Qty |
UOM |
| W328-6 |
L001197 |
115V, 60 Hz | 20°C to 200°C | ±0.01°C | 3.5 L |
In Stock |
1 |
$6,078.00 |
|
EA |
| W325-26 |
L001177 |
220V, 60 Hz | 20°C to 200°C | ±0.01°C | 3.5 L |
In Stock |
1 |
$6,078.00 |
|
EA |
| W325-28 |
L001198 |
115V, 60 Hz | 20°C to 200°C | ±0.01°C | 11 L |
In Stock |
1 |
$6,186.00 |
|
EA |
| W325-27 |
L001178 |
220V, 60 Hz | 20°C to 200°C | ±0.01°C | 11 L |
In Stock |
1 |
$6,186.00 |
|
EA |
| W325-30 |
L001199 |
115V, 60 Hz | 20°C to 200°C | ±0.01°C | 16 L |
In Stock |
1 |
Inquire |
|
EA |
| W325-29 |
L001179 |
220V, 60 Hz | 20°C to 200°C | ±0.01°C | 16 L |
In Stock |
1 |
Inquire |
|
EA |
| W328-8 |
L001200 |
115V, 60 Hz | 20°C to 200°C | ±0.01°C | 19 L |
In Stock |
1 |
$6,624.00 |
|
EA |
| W328-14 |
L001180 |
220V, 60 Hz | 20°C to 200°C | ±0.01°C | 19 L |
In Stock |
1 |
$6,624.00 |
|
EA |
