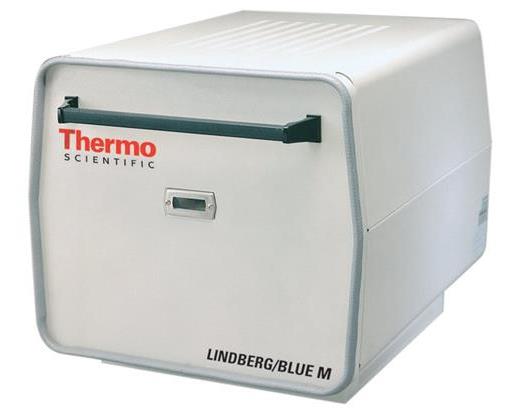

Lindberg/Blue M™ Heavy-Duty 1200°C Box Furnaces, Thermo Scientific
Thermo Scientific™ Lindberg/Blue M furnaces feature a unique internal construction and outer shell design that reduces external surface temperatures without compromising interior temperature uniformity. Furnaces feature individual heating elements at chamber top, bottom and sides for uniform heat distribution. Unique Moldatherm™ ceramic fiber insulation to allow rapid heatup, recovery and cooldown rates.
- Swing-down door provides convenient loading platform
- Helically coiled, high-temperature alloy wire elements for extended service life
- High-temperature insulation in vestibule and floating plug door to minimize heat loss and improve temperature control
- Spring-loaded door holds door securely shut; door rests in horizontal position when open
- Sight glass for convenient observation of heated load during operation
- Refractory plate heating unit
- Long-life Platinel II thermocouple with 10 ft. compensated lead wire and polarized plug
- Rugged, heavy-duty Inconel* hearthplate supports load and protects the furnace from damage due to spillage (Model BF51542C)
- Heating element imbedded in Moldatherm insulation (Model BF51542C)
1200°C Digital, Single Setpoint Controller
- Control console is fully wired and includes advanced microprocessor-based digital control, a solid-state power module, ON/OFF circuit breaker and thermocouple input jack
- Includes microprocessor-based PID control (proportional, integral, derivative), single segment, single setpoint, one ramp to setpoint
- Built-in adjustable high limit overtemperature protection
- Simultaneous LED display of actual temperature vs. setpoint
- Can be configured to display temperature in either °C or °F
Ordering Alerts: Choice of controllers available, including 1200°C digital single-program/multiple-segment programmable controller and overtemperature control.
Required Accessories: Independent control console CC58114C
Compatible with: Controllers (CC58114C, CC58114PBC, CC58114PC, CC58114BC)
Warranty and Service Offering: 12 months
| Temperature Range |
100° to 1200°C |
| Volts |
208/240 |
| Hertz |
50/60 |
Catalog Number
(Manufacturer No.) |
Capacity |
Interior Dimensions
(D x W x H) |
Exterior Dimensions
(L x W x H) |
Description |
Power Consumption |
Shipping Weight |
F911-1
(BF51442C) |
9L (0.32 cu.ft.) |
35.6 x 19.5 x 13.3cm
(14 x 7.5 x 5.25 inch) |
50.8 x 50.8 x 62.2cm
(20 x 20 x 24.5 inch) |
With refractory plate heating element |
4800w |
66kg
(145 lb.) |
F911-3
(BF51542C) |
23L (0.81 cu.ft.) |
36.8 x 26.7 x 24.1cm
(14.5 x 10.5 x 9.5 inch) |
78.7 x 71.1 x 72.4cm
(31 x 28 x 28.5 inch) |
With Moldatherm Heating Element (Four Sides) |
6200w |
152kg
(335 lb.) |
Options
| Cat No |
Vendor Part No |
Description |
Qty/UOM |
Price |
Qty |
UOM |
| F920-1 |
CC58114A-1 |
Controller, Single-Zone Console; Digital; 120V |
In Stock |
1 |
$3,850.00 |
|
EA |
| F920-7 |
CC58114BA |
Controller, Single-Zone Console; Digital; OverTemperature Control; 120V |
In Stock |
1 |
Inquire |
|
EA |
| F920-15 |
CC58114PC-1 |
Controller, Single-Zone Console; Digital; Programmable; 208/240V |
In Stock |
1 |
$5,090.00 |
|
EA |
| F920-8 |
CC58114PBC-1 |
Controller, Single-Zone Console; Digital; Programmable; OverTemperature Control; 208/240V |
In Stock |
1 |
$7,210.00 |
|
EA |
| F920-10 |
CC58434PC-1 |
Controller, Three-Zone Console; Digital; Programmable Controller for Center Zone with Over Temperature Control; 208/240V |
In Stock |
1 |
$10,550.00 |
|
EA |
| F920-3 |
CC58114C-1 |
1200°C Heavy-duty Box Furnace 1-zone Console 240 |
In Stock |
1 |
$3,850.00 |
|
EA |
| F911-44 |
102460 |
Relay Input, 50A, DC |
In Stock |
1 |
$168.00 |
|
EA |
