Pumps, Vacuum System, Vario Select, BrandTech®

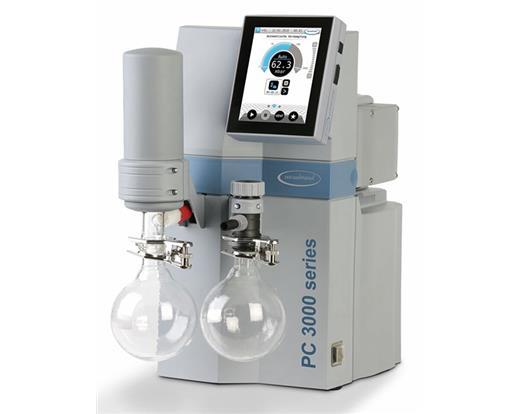

The VACUUBRAND® PC3001 VARIO® Select is the best choice vacuum system for bench-top sized rotary evaporators and other evaporative applications. The integrated VACUU•SELECT touch screen controller gives you fingertip control to select an automatic routine for your desired application. For example, for a rotary evaporator, the PC3001 VARIO select automatically controls the vacuum, with minimal supervision, continuously optimizing to changing vapor conditions without programming. Just press “start” and the PC3001 VARIO select provides faster evaporation and tighter control, while freeing you up to do more important work. You can even set up your own custom routine by modifying existing routines, or assembling your own with drag-and-drop building blocks. It features a VARIO version of our MD1C vacuum pump, with integrated solvent recovery in a compact, attractive package.
- Excellent Corrosion Resistance- VACUUBRAND Oil-free Chemistry Diaphragm Vacuum Pumps are constructed of materials with excellent corrosion resistance, such as PTFE heads and diaphragms. All multistage pumps are equipped with a gas ballast to provide consistent pump performance with condensed vapors.
- No Oil Changes- These vacuum pumps utilize diaphragm vacuum technology. The totally dry operation eliminates the misting, handling and disposal of contaminated waste associated with rotary vane pumps. No oil to change or monitor!
- Reduced Maintenance- Typical diaphragm lifetimes are well in excess of 15,000 hours of use before replacement- that's years in most applications, minimizing downtime and service costs. When it is finally time for service, their unique design eliminates tedious, trial-and-error stroke length recalibration.
- Improved Productivity- VACUUBRAND pumps are engineered for performance, with flow rates as much as 40% higher at working vacuum level than competitive pumps with similar free air capacity ratings. Higher flow rates mean reduced process times and higher throughput.
- Quiet & Reliable- VACUUBRAND pumps offer whisper-quiet operation and low vibration. Plus, all VACUUBRAND pumps and systems must pass rigorous product testing before leaving the factory. It's your assurance of a reliable pump.
Cat. No. |
Model |
Ultimate Vacuum mbar |
Free Air Capacity at 60Hz |
Flange Inlet
Connection |
Outlet
Connection |
w/o gas ballast |
w/ gas ballast |
cfm |
lpm |

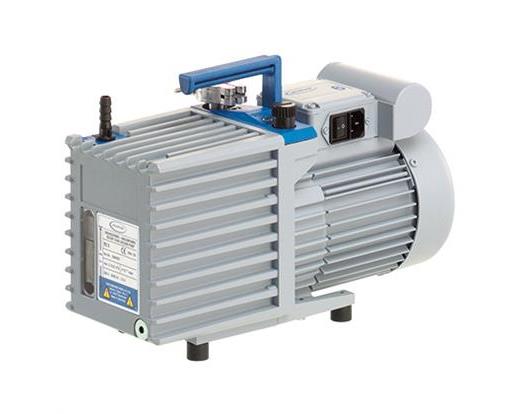

P647-34 |
RZ 6 (dual voltage) |
2 x 10-3 |
1 x 10-2 |
4.0 |
113 |
KF 16 |
10mm hose nozzle |
Cat. No. |
Model |
Ultimate Vacuum |
Free Air Capacity at 60Hz |
mbar |
torr |
cfm |
lpm |

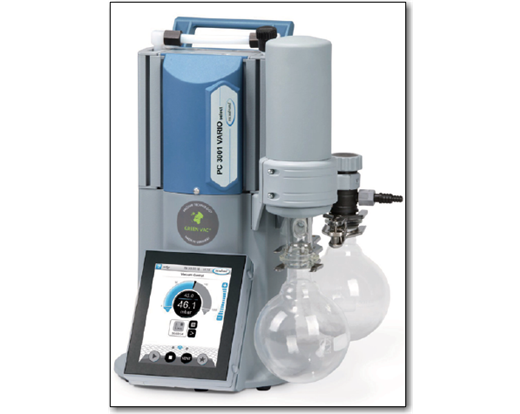

P647-42 |
PC3001 |
2 |
1.5 |
1.2 |
34 |

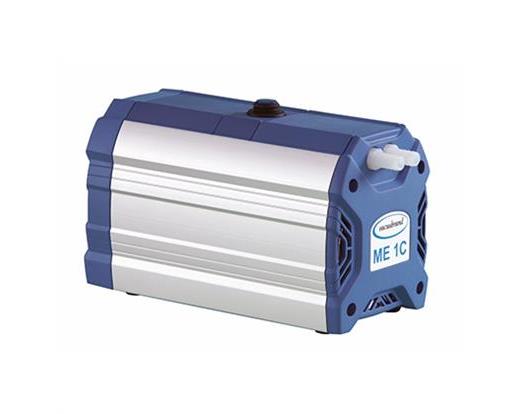

P647-43 |
ME 1C |
100 |
75 |
0.5 |
14 |

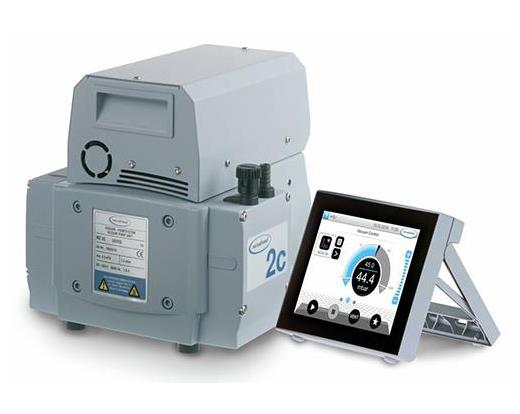

P647-46 |
MZ 2C NT |
100 |
5 |
1.4 |
38 |
P647-47 |
MZ 1C |
7 |
9 |
0.5 |
15 |
