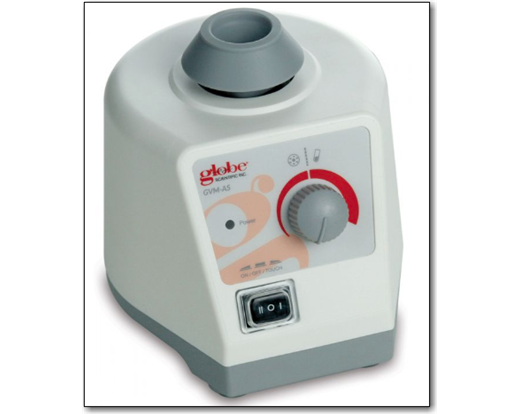

Vortex Mixers, Variable Speed Vortex Mixer
The GVM-AS Variable Speed Vortex Mixer is the best choice for vortex mixing in your lab. Speed adjustment between 100 - 2500rpm is as easy as rotating the analog dial. A slight press on the top cup quickly and efficiently vortexes virtually any tube. Continuous run function and available adapters allow for simultaneous mixing of multiple samples. A heavy-duty cast aluminum base and suction cup feet make the GVM-AS extremely stable despite its compact footprint.
- Touch operation or continuous mode
- Variable speed control from 0 to 2500rpm
- Suitable for various tube types and mixing applications with optional adapters
- Specially designed vacuum suction feet for stability
- Robust cast aluminum construction
- Small footprint
- Rubber suction feet ensure placement and mitigate vibration
- Wide variety of accessories for virtually every tube used in your lab
- Spill resistant chassis
| Model |
S550-1 |
S550-2 |
S550-3 |
| Voltage |
120V, 60Hz |
230V, 50Hz |
230V, 50Hz |
| Power |
60W |
| Mixing Motion |
Orbital |
| Orbital Diameter |
4mm |
| Motor Type |
Shaded pole motor |
| Motor Rating Input |
58W |
| Motor Rating Output |
10W |
| Speed Range |
0 to 2500rpm |
| Speed Display |
Scale |
| Run Type |
Touch operation or continuous |
| Dimensions (W x D x H) |
127 x 130 x 160mm (5 x 5.1 x 6.3 inch) |
| Weight |
3.5Kg (7.7 lbs) |
| Operating Temperature |
5 to 40°C |
| Permissible Relative Humidity |
80% RH (non-condensing) |
| Protection Class |
IP21 |
| Warranty |
2 Years |
