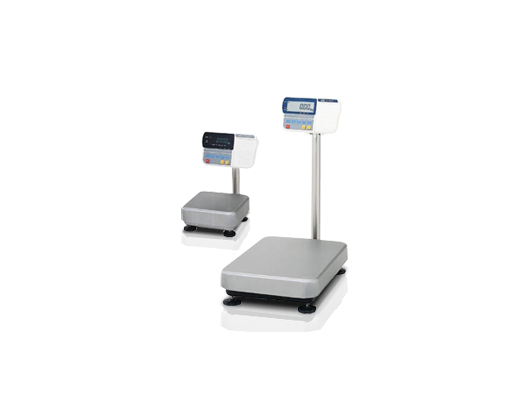

Balances, Bench Scale, HV-G Series, NTEP, A&D Weighing
The HV-G Series Triple Range, platform scales provide counting, percentage, and comparator functions. These versatile scales are useful for packaging, shipping, pharmaceutical, and other applications
- Comparator for setting high and low weight targets
- Optional comparator buzzer for selected settings
- Setpoint control for simple batching
- Tilting meter head for best viewing angle
| Catalog No |
B138-22 / B138-56 |
B138-23 / B138-57 |
B138-24 / B138-58 |
| Model No |
HV-15KGL / GV |
HV-60KGL / GV |
HV-200KGL / GV |
| Capacity (kg) |
15 |
6 |
3 |
60 |
30 |
15 |
220 |
150 |
60 |
| Resolution (kg) |
0.005 |
0.002 |
0.001 |
0.02 |
0.01 |
0.005 |
0.1 |
0.05 |
0.02 |
| Capacity (lb) |
30 |
15 |
6 |
150 |
60 |
30 |
500 |
300 |
150 |
| Resolution (lb) |
0.01 |
0.005 |
0.002 |
0.05 |
0.02 |
0.01 |
0.2 |
0.1 |
0.05 |
| Capacity (oz) |
480 |
240 |
96 |
2400 |
960 |
480 |
8000 |
4800 |
2400 |
| Resolution (oz) |
0.2 |
0.1 |
0.05 |
1 |
0.5 |
0.2 |
5 |
2 |
1 |
| Capacity (lb-oz) |
30 |
- |
- |
- |
- |
- |
- |
| Resolution (lb-oz) |
0.1 |
- |
- |
- |
- |
- |
- |
| Max. Count |
15,000 pieces |
12,000 pieces |
11,000 pieces |
| Operating Temp. |
-10°C ~ 40°C / 14°F ~ 104°F |
| Linearity |
±5g |
±2g |
±1g |
±20g |
±10g |
±5g |
±100g |
±50g |
±25g |
| PanSize (mm) |
250(W) x 250(D)mm |
330(W) x 424(D)mm |
390(W) x 530(D)mm |
| Pan Size (inch) |
9.8(W) x 9.8(D) inches |
12.95(W) x 16.69(D) inches |
15.35(W) x 20.87(D) inches |
| Physical Dim. (mm) |
275(W) x 474(D) x 368(H) |
330(W) x 621(D) x 771(H) |
390(W) x 712(D) x 773(H) |
| Physical Dim. (inch) |
10.8(W) x 18.7(D) x 14.5(H) |
13.0(W) x 24.4(D) x 30.4(H) |
15.4(W) x 28.0(D) x 30.4(H) |
| Power |
GL Series: AC Adapter or 6 "D" size alkaline batteries (600 hours)
GV Series: AC Mains only |
| Weight (approx.) |
6kg / 13.2 lb |
11kg / 24.3 lb |
17kg / 37.5 lb |
| Standard Accessories |
AC Adapter (for GL Series only), Display Cover and Manual |
