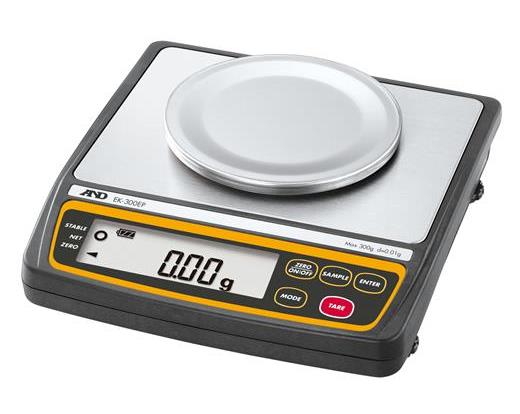

Balances, Compact Balance, EK-EP Series, A&D Weighing
Compact, lightweight and affordable. FM & FMc approved for excellent explosion protection. Portable and battery powered, requiring no power supply from a safe area. Get it today and start using it today.
- Intrinsically Safe (FM Approved)
- For precise weighing in potentially explosive atmospheres
- 250 hours of Battery Life (4 AA batteries)
- Counting & Comparator function
- Auto Power-Off Function
- LCD Backlight Display
| Catalog No. |
B137-39 |
B137-40 |
B137-41 |
| Model No. |
EK-300EP |

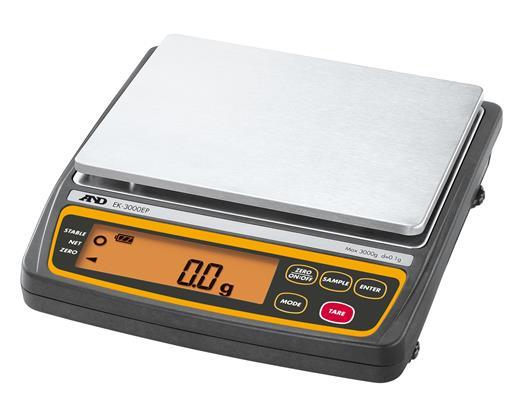

EK-3000EP |
EK-12KEP |
| Weighing Capacity |
300g |
3000g |
12kg |
| Readability |
0.01g |
0.1g |
1g |
Repeatability
(standard deviation) |
0.01g |
0.1g |
1g |
| Linearity |
±0.02g |
±0.2g |
±1g |
| Sensitivity drift |
±20 ppm /°C (10°C-30°C / 50°F-86°F) |
| Counting Mode |
Min. unit weight |
0.01g |
0.1g |
1g |
| No. of samples |
5, 10, 25, 50 or 100 pieces |
Percent
Mode |
Min. % display |
0.1% |
| Min. 100% weight |
1g |
10g |
100g |
| Operating temperature range |
0°C-40°C / 32°F-104°F, less than 85% R.H. (non-condensing) |
| Class / division standards |
IS / I / 1 / C,D / T3C |
| Zone standards - FM/FMc |
Aex / Ex ia IIB T3 |
| Battery operation* |
Approximately 250 hours (with 4 AA alkaline batteries, backlight off) |
| Weighing pan size |
Ø4.33 inches |
5.24 x 6.69 inches |
| Net weight |
Approx. 1.2kg |
Approx. 1.5kg |
Calibration weight†
(not included) |
300g |
3000g |
10kg |
* Note: The following batteries must be used to maintain FM approval: Energizer AA E91 alkaline LR6 AM3, or Duracell AA alkaline MN 1500 LR6, or Panasonic AA alkaline LR6(XJ) 1.5V.
† Factory Setting
