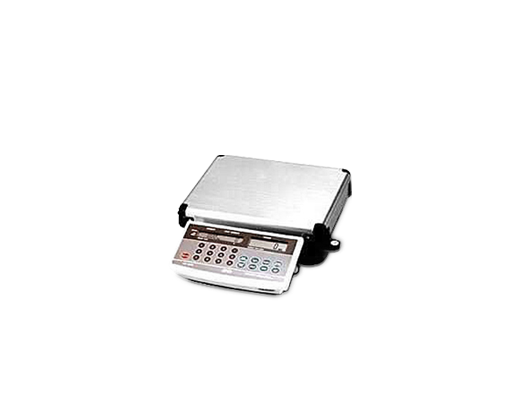

Balances, Counting, HD Series, High Capacity, A&D Weighing
HD Series high capacity counting scales offer a choice of simple operation for direct entry of tare weight, piece weight and sample size. Automatic Counting Accuracy Improvement (ACAI) feature provides maximum accuracy.
- Designed for cost-conscious users
- Automatic Counting Accuracy Improvement (ACAI)
- Comparator function for packaging operations
- AC power, dry cell or optional rechargeable battery
| Catalog No |
B122-5 |
B122-6 |
B122-7 |
B122-8 |
B122-9 |
B122-10 |
| Model No |
HD-12KA |
HD-30KA |
HD-60KA |
HD-12KB |
HD-30KB |
HD-60KB |
| Kilogram (metric) |
12kg x 2g |
30kg x 5g |
60kg x 10g |
12kg x 2g |
30kg x 5g |
60kg x 10g |
| Decimal Pounds (lb) |
30 x 0.005 |
60 x 0.01 |
120 x 0.02 |
30 x 0.005 |
60 x 0.01 |
120 x 0.02 |
| Min. Unit Wt (1/30,000 mode-selectable) |
0.4g |
1g |
2g |
0.4g |
1g |
2g |
| Min. Unit Wt (1/120,000 mode-selectable) |
0.1g |
0.25g |
0.5g |
0.1g |
0.25g |
0.5g |
| Sample Size |
5, 10, 25, 50 or 100 pcs |
5, 10, 25, 50, 100 pcs. or user selectable |
| Sensitivity Drift |
20ppm/°C (5°C ~ 35°C / 41°F ~ 95°F) |
| Operating Temp. |
-10°C to 40°C (14°F to 104°F), less than 85% RH (No-condensing) |
| Linearity |
±0.5g |
±1g |
±2g |
±0.5g |
±1g |
±2g |
| Display |
LCD / 6 Digits,
17mm / 0.67 inch (Height) |
LCD / Weight & Unit Weight 5 Digits,
Piece Count Wt. 6 Digits, 17mm / 0.67 inch (Height) |
| Power |
AC Adapter, six AM2 (C type) 1.5V dry batteries or
rechargeable NiCd Battery Pack (AD-1681) |
| Battery Life |
Approx. 100 hours continuous operation with manganese batteries, 200 with alkaline,
20 hours with rechargeable NiCd Battery Pack, (AD-1681) at 20°C / 68°F |
| Pan Size |
(mm) |
300 (W) x 380 (D) |
| (inch) |
11.81 (A) x 14.96 (P) |
| Dimensions (W x D x H) |
(mm) |
411 x 470 x 120 |
| (inch) |
16.18 x 18.50 x 4.72 |
| Weight |
Approximately 3kg / 6.6 lb. |
| Standard Accessories |
AC Adapter, Manual |
Ordering Info
| Cat No |
Vendor Part No |
Capacity | Resolution | Display | Pan Size |
Qty |
Price |
Qty |
UOM |
| B122-5 |
HD-12KA |
30 lb / 12kg | 0.005 lb / 2g | Single, No 0-9 keypad | 11.8" x 15" |
In Stock |
1 |
$1,190.00 |
|
EA |
| B122-6 |
HD-30KA |
60 lb / 30kg | 0.01 lb / 5g | Single, No 0-9 keypad | 11.8" x 15" |
In Stock |
1 |
$1,190.00 |
|
EA |
| B122-7 |
HD-60KA |
120 lb / 60kg | 0.02 lb / 10g | Single, No 0-9 keypad | 11.8" x 15" |
In Stock |
1 |
$1,190.00 |
|
EA |
| B122-8 |
HD-12KB |
30 lb / 12kg | 0.005 lb / 2g | 3 Displays, with 0-9 keypad | 11.8" x 15" |
In Stock |
1 |
$1,320.00 |
|
EA |
| B122-9 |
HD-30KB |
60 lb / 30kg | 0.01 lb / 5g | 3 Displays, with 0-9 keypad | 11.8" x 15" |
In Stock |
1 |
$1,320.00 |
|
EA |
| B122-10 |
HD-60KB |
120 lb / 60kg | 0.02 lb / 10g | 3 Displays, with 0-9 keypad | 11.8" x 15" |
In Stock |
1 |
$1,320.00 |
|
EA |
