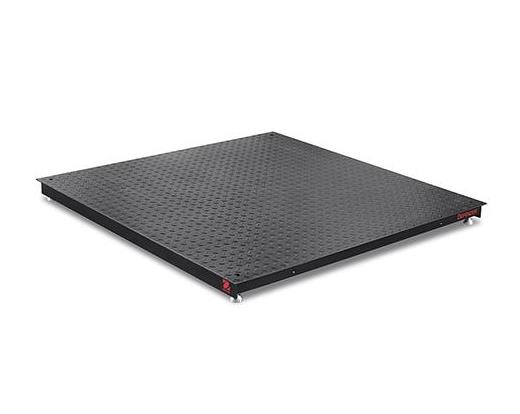

Balances, Floor Scale, Defender 3000 Series, Industrial, Ohaus
Defender 3000 Floor Scales for Standard Industrial Applications
Defender 3000 Floor Platforms meet dry weighing needs for industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features a bright display that changes color when in check mode. Scale also includes counting and totalization modes. Ramps and mounting plates are available.
Unique Features
- Powder coated carbon steel, treaded or 304 stainless steel, flat surface decks with 4 alloy steel load cells, fixed top plate (5mm / 0.196 inch thick) with structural bracing for stiff construction
- Platforms available from in sizes of 3 x 3 feet, 4 x 4 feet, and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs
- Results are clearly shown on the large, bright backlit LCD display
- In Checkweighing mode, display changes color (yellow/green/red) to alert users when within the target weight range
- Four alloy steel shear beam load cells with top-adjustable height swiveling ball-in-cup design feet to ease installation and Stainless steel bases feature washdown IP68 loadcells for wet area use
- Applications- Weighing, Checkweighing, Counting, Totalization
- Display- 7 Segment LCD with multicolor backlight
- Operation- Internal power supply with power cord (included), 6C (LR14) batteries (not included) or rechargeable battery (not included)
- Communication- Standard RS232 and optional USB Device or Ethernet
- Construction- ABS plastic or 304 stainless steel indicator, 5 mm/0.196 in. fixed top plate, black painted steel treaded platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available
- Design Features- Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)
| |
B150-27/S |
B150-28/S |
B150-29/S |
| Maximum Capacity |
2,500 lb (1,250kg) |
5,000 lb (2,500kg) |
| Readability |
0.5 lb (0.2kg) |
1 lb (0.5kg) |
| Readability (Certified) |
0.5 lb (0.5kg) |
1 lb (0.5kg) |
| Platform Size |
3 ft x 3 ft (914mm x 914mm) |
4 ft x 4 ft (1,219mm x 1,219mm) |
| Dimensions |
3 ft x 3.5 inch x 3 ft
(914mm x 90mm x 914mm) |
4 ft x 3.5 inch x 4 ft (1,219mm x 90mm x 1,219mm) |
| Battery Life |
30 Hours with Rechargeable Battery; 100 Hours with Disposable Batteries |
| Legal for Trade |
NTEP Certified |
| Tare Range |
To capacity by subtraction |
| Working Environment |
-10°C – 40°C, 85%RH, non-condensing (14°F – 104°F, 85%RH, non-condensing) |
| Platform Construction |

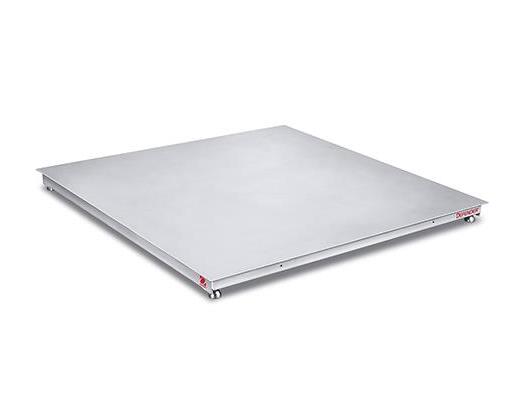

Painted Steel Diamond Plate (S-versions- Stainless Steel Platform) |
| Net Weight |
225 lb (102kg) |
269 lb (122kg) |
| Protection Rating |
Not applicable |
| Communication |
Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory) |
| Power |
6-C (LR14) Batteries (Not Included); Rechargeable Battery (Not Included); AC Power (Included) |
| Units of Measurement |
Metric Tons; Kilogram; Pound |
| Display |
7 Segment LCD with multicolor backlight |
| Outputs |
Not applicable |
Ordering Info
| Cat No |
Capacity | Readability | Platform | Material |
Qty |
Price |
Qty |
UOM |
| B150-27 |
1,250kg (2,500 lb) | 0.2kg (0.5 lb) | 3 x 3 ft | Powder-coated Carbon Steel platform |
In Stock |
1 |
$1,850.00 |
|
EA |
| B150-27S |
1,250kg (2,500 lb) | 0.2kg (0.5 lb) | 3 x 3 ft | Stainless Steel platform |
In Stock |
1 |
$1,950.00 |
|
EA |
| B150-28 |
1,250kg (2,500 lb) | 0.2kg (0.5 lb) | 4 x 4 ft | Powder-coated Carbon Steel platform |
In Stock |
1 |
$2,100.00 |
|
EA |
| B150-28S |
1,250kg (2,500 lb) | 0.2kg (0.5 lb) | 4 x 4 ft | Stainless Steel platform |
In Stock |
1 |
$2,200.00 |
|
EA |
| B150-29 |
2,500kg (5,000 lb) | 0.5kg (1 lb) | 4 x 4 ft | Powder-coated Carbon Steel platform |
In Stock |
1 |
$2,100.00 |
|
EA |
| B150-29S |
2,500kg (5,000 lb) | 0.5kg (1 lb) | 4 x 4 ft | Stainless Steel platform |
In Stock |
1 |
$2,200.00 |
|
EA |
