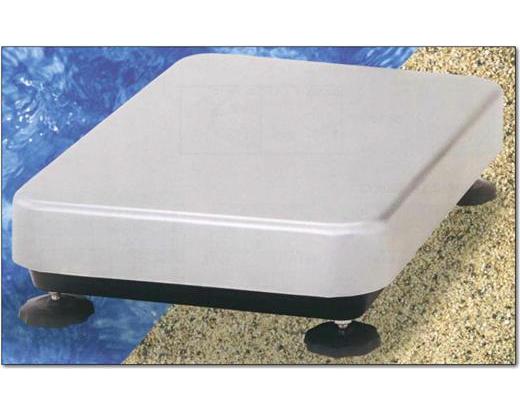

Balances, Load Cell Platform Scale, SB-Series, A&D Weighing
SB Series Load Cell Bases are water and dust proof (IP-65/NEMA4) for sanitary, clean, safe use in the toughest industrial environments.
- Four models ranging from 30lb to 500lb capacity (15kg - 220kg)
- Easy-to-clean, removable stainless steel weighing platform
- Two (2) year warranty
- Water and dust resistant load cell sensor
| Catalog No |
B123-1 |
B123-2 |
B123-3 |
B123-4 |
| Model No |
SB-15K10 |
SB-60K11 |
SB-100K12 |
SB-200K12 |
| Capacity |
15kg / 30 lb |
60kg / 150 lb |
100kg / 200 lb |
220kg / 500 lb |
| Zero Balance |
0.20mV / V±0.1mV/V |
0.16mV / V±0.1mV/V |
0.16mV / V±0.1mV/V |
0.13mV / V±0.1mV/V |
| Rated Output |
1mV / V±10% |
| Linearity & Hysteresis |
0.03% of R.O. |
| Compensated Temperature Range |
-10°C to 40°C |
| Max. Excitation Voltage |
15V DC |
| Input Terminal Resistance |
1190Ω ± 50Ω |
| Output Terminal Resistance |
1000Ω ± 10Ω |
| Isolation Resistance |
Greater than 5000MΩ at 50V DC |
| Cable |
∅4mm X 3m / ∅0.2 inch X 118.1 inch, shielded cable including 4 wires |
| Weighing Pan Size (mm) |
250 x 250 |
330 x 424 |
390 x 530 |
| Weighing Pan Size (inch) |
9.8 x 9.8 |
13.0 x 16.7 |
15.4 x 20.9 |
| Platform Weight (approximate) |
4.5kg / 9.9 lb |
8kg / 17.6 lb |
14kg / 30.9 lb |
| Weighing Pan Material |
Stainless Steel |
| Base Unit Material |
Stainless Steel |
Aluminum Alloy Die-casting |
