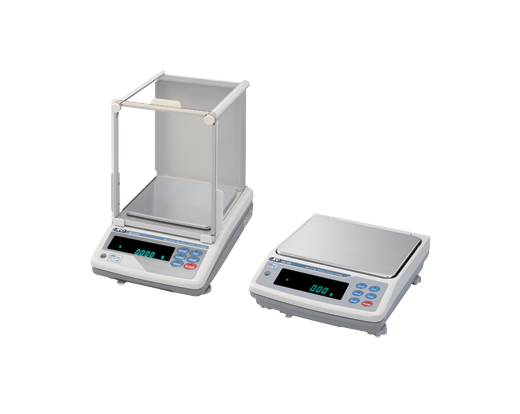

Balances, Mass Comparators, MC Series, A&D Weighing
MC Series Mass Comparators
Equipped with an internal mass for simplified calibration of the balance. Enhanced function settings reduce errors due to drafts and vibrations. The MC Series may also be used as high resolution balances. Display weighing results with an extra decimal place not normally found in balances of this capacity. The extended resolution enables measurements of minute weight changes of heavy objects and small variations in heavy tare containers.
- Super Hybrid Sensor Technology
- Manage ASTM & OIML Weights
- Auto-centering Pan Options
- RS-232C Standard
- Auto Environmental Adjustment
- Internal Calibration
- Counting/Percentage/Comparator Modes
- Bright VFD Display
- GLP/LIMS/ISO Compliance
- Underhook
| Catalog No |
B128-16 |
B128-17 |
B128-18 |
B128-19 |
| Model No |
MC-1000 |
MC-6100 |
MC-10K |
MC-30K |
| Weighing Capacity |
1100g |
6100g |
10.1kg |
31kg |
| Minimum Weighing Value |
0.0001g |
0.001g |
0.01g |
| Other units of measure |
kg / g / oz / lb / lb-oz / ozt / ct / mm / dwt / GN (See table below) |
Repeatability
(Standard Deviation)*1 |
0.0005g / 1kg to 500g |
0.004g / 5kg to 2kg |
0.005g / 10kg to 5kg |
0.10g / 30kg to 20kg |
| 0.0004g / less than 500g |
0.0015g / less than 2kg |
0.004g / 5kg to 2kg |
0.015g / less than 20kg |
| 0.0015g / less than 2kg |
| Linearity |
±0.003g |
±0.03g |
±0.03g |
±0.2g |
| Sensitivity drift (10ºC to 30ºC) |
±2 ppm / ºC |
±3 ppm / ºC |
| Operating Temperature |
5ºC to 40ºC (41ºF to 104ºF), 85%RH or less (no condensation) |
| Display refresh rate |
5 time / second or 10 times / second |
| Standard interface |
RS-232C |
| Weighing pan size |
128 x 125mm |
165 x 165mm |
270 x 210mm |
| Power consumption |
Approx. 11 VA (supplied by the AC adapter) |
| External dimensions |
210 (W) x 317 (D) x 86 (H) mm |
300 (W) x 355 (D) x 111 (H) mm |
| Net weight |
Approx. 4.6kg |
Approx. 5.1kg |
Approx. 9.3kg |
| Standard accessories |
AC adpter, Intruction manual, Glass breeze break (MC-1000/6100) or
Simple breeze break (MC)-10K/30K, In-use cover, WinCT (CD-ROM) |
| Minimum Display Values |
| kg |
|
|
0.000001 |
0.00001 |
| g |
0.0001 |
0.001 |
0.01 |
| oz |
0.000005 |
0.00005 |
0.0005 |
| lb |
0.0000005 |
0.000005 |
0.00005 |
| lb-oz |
0.01 |
0.001 |
| Troy oz |
0.000005 |
0.00005 |
0.0005 |
| carat |
0.0005 |
0.005 |
0.05 |
| momme |
0.00005 |
0.0005 |
0.005 |
| dwt |
0.0001 |
0.001 |
0.01 |
| grain |
0.002 |
0.02 |
0.2 |
*1 Repeatability when the auto-centering pan or an automatic loading machine is used under good ambient conditions
Options
| Cat No |
Description |
Qty/UOM |
Price |
Qty |
UOM |
| B128-26 |
Autocentering pan for MC-1000 |
In Stock |
1 |
$1,360.00 |
|
EA |
| B128-27 |
Autocentering pan for MC-6100 |
In Stock |
1 |
$1,360.00 |
|
EA |
| B128-28 |
Autocentering pan for MC-10/30K |
In Stock |
1 |
$1,735.00 |
|
EA |
| B125-16 |
*USB Option (Uni-Directional) with cable for MC-1000/6100
*B125-16, B130-44, B130-45, and the standard RS-232C interface cannot be used at the same time |
In Stock |
1 |
$175.00 |
|
EA |
| B130-44 |
Comparator Output, Factory Installed Only for MC-1000/6100
*B125-16, B130-44, B130-45, and the standard RS-232C interface cannot be used at the same time |
In Stock |
1 |
$910.00 |
|
EA |
| B130-45 |
Analog Output, Factory Installed Only for MC-1000/6100
*B125-16, B130-44, B130-45, and the standard RS-232C interface cannot be used at the same time |
In Stock |
1 |
$990.00 |
|
EA |
| B130-40 |
Animal Weighing Pan |
In Stock |
1 |
$210.00 |
|
EA |
| B130-36 |
Density Determination Kit for MC-1000 |
In Stock |
1 |
$720.00 |
|
EA |
| B147-50 |
Remote Controller |
In Stock |
1 |
$750.00 |
|
EA |
| B139-15 |
**Comparator output with a buzzer / RS-232C / Current loop for MC-10K/30K
**B139-15, B139-16, and the standard RS-232C interface cannot be used at the same time: the MC-10K/30K are not IP65 compliant with these options |
In Stock |
1 |
$425.00 |
|
EA |
| B139-16 |
**Analog voltage output / Current loop for MC-10K/30K
**B139-15, B139-16, and the standard RS-232C interface cannot be used at the same time: the MC-10K/30K are not IP65 compliant with these options |
In Stock |
1 |
$980.00 |
|
EA |
| B139-17 |
Waterproof RS-232C 5 meter cable for MC-10K/30K |
In Stock |
1 |
$360.00 |
|
EA |
| B128-29 |
Carrying Case for MC-10K/30K |
In Stock |
1 |
$615.00 |
|
EA |
| B135-32 |
External Rechargeable Battery Pack |
In Stock |
1 |
$800.00 |
|
EA |
| B128-24 |
Static Eliminator |
In Stock |
1 |
$1,300.00 |
|
EA |
| B147-46 |
Electrostatic fieldmeter |
In Stock |
1 |
$1,730.00 |
|
EA |
| B147-47 |
Weighing Data Logger |
In Stock |
1 |
$360.00 |
|
EA |
| B147-48 |
Tweezers for calibration weight |
In Stock |
5 |
$220.00 |
|
PK |
| B147-32 |
Foot Switch |
In Stock |
1 |
$96.00 |
|
EA |
| B128-30 |
RS-232C 2 meter cable (25pin-9pin) |
In Stock |
1 |
$55.00 |
|
EA |
| B147-55 |
AC Adapter (120V / 220V) - Standard with unit |
In Stock |
1 |
$50.00 |
|
EA |
| B126-11 |
USB to 25-pin RS-232 Converter |
In Stock |
1 |
$95.00 |
|
EA |
