Balances, Precision, FX-iWP Series with External Calibration, A&D Weighing

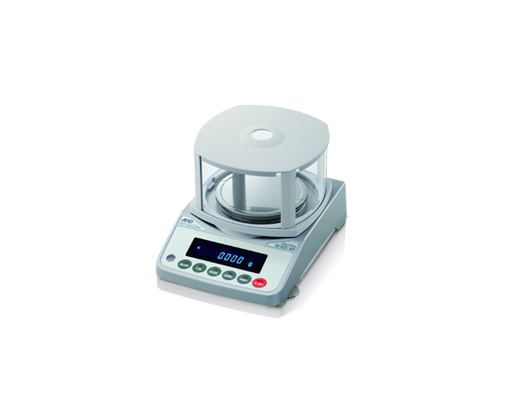

Precision FX-iWP Balance Series with External Calibration
The FX-iWP is the first Water proof/Dust proof, 0.001g compact precision balance. The FX-iWP incorporates the reduced size Compact Super-Hybrid Sensor (SHS), which provides quick (one second) readings with high precision. The new Statistical Calculation Function (SCF) provides statistical data display or output of weighed samples.
- IP65 Water proof/Dust Proof
- Compact SHS (Super Hybrid Sensor) 1 Second Stabilization
- Multiple Weighing Units(g, oz, lb, lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes, pcs, % and MLT)
- SCF-Statistical Calculation Function
- Quick USB Interface (B128-9)
| Catalog No |
B127-67 |
B127-68 |
B127-69 |
B127-46 |
B127-70 |
B127-71 |
| Model No |
FX-120iWP |
FX-200iWP |
FX-300iWP |
FX-1200iWP |
FX-2000iWP |
FX-3000iWP |
| Counting Mode |
Min. Unit
Mass |
0.001g |
0.01g |
# of
Samples |
5, 10, 25, 50 or 100 pieces |
| Percent Mode |
Min. 100%
Ref. Mass |
0.100g |
1.00g |
Min. 100%
Display |
0.01%, 0.1%, 1% (depends on the reference mass stored) |
Repeatability
(Std. Deviation) |
0.001g |
0.01g |
| Linearity |
±0.002g |
±0.02g |
Stabilization Time
(typically set at FAST) |
Approx. 1 second |
Sensitivity Drift
(10°C to 30°C) |
±2ppm / °C |
| Operating Temp |
5°C to 40°C (41°F to 104°F), 85% RH or less (No condensation) |
| Display Type |
Vacuum Fluorescent Display (VFD) |
| Display Refresh Rate |
5 times / second, 10 times / second or 20 times / second |
| Std. Serial Interface |
RS-232C Interface |
| Weighing Pan |
130mm |
150mm |
| External Calibration |
100g
50g |
200g
100g |
300g
200g
100g |
1000g
500g |
2000g
1000g |
3000g
2000g
1000g |
| AC Adaptor |
Confirm that the adaptor type is correct for the local voltage and power receptacle |
| Power Consumption |
Approx. 11VA (supplied to the AC Adaptor) |
| External Dimensions |
193 (W) x 262.5 (D) x 84.5 (H) mm |
| Net Weight |
Approx. 2.5kg |
| Catalog No |
B127-67 |
B127-68 |
B127-69 |
B127-46 |
B127-70 |
B127-71 |
| Model No |
FX-120iWP |
FX-200iWP |
FX-300iWP |
FX-1200iWP |
FX-2000iWP |
FX-3000iWP |
Capacity x
Resolution |
g |
122 x 0.001 |
220 x 0.001 |
320 x 0.001 |
1220 x 0.01 |
2200 x 0.01 |
3200 x 0.01 |
| oz |
4.30 x 0.00005 |
7.76 x 0.00005 |
11.28 x 0.00005 |
43.0 x 0.0005 |
77.6 x 0.0005 |
112.8 x 0.0005 |
| lb |
0.268 x 0.000005 |
0.485 x 0.000005 |
0.705 x 0.000005 |
2.68 x 0.00005 |
4.85 x 0.00005 |
7.05 x 0.00005 |
| lb-oz |
0lb, 4.30oz x 0.01oz |
0lb, 7.76oz x 0.01oz |
0lb, 11.29oz x 0.01oz |
2lb, 11.03oz x 0.01oz |
4lb, 13.60oz x 0.01oz |
7lb, 0.88oz x 0.01oz |
| ozt |
3.92 x 0.00005 |
7.07 x 0.00005 |
10.28 x 0.00005 |
39.2 x 0.0005 |
70.7 x 0.0005 |
102.8 x 0.0005 |
| ct |
610 x 0.005 |
1100 x 0.005 |
1600 x 0.005 |
6100 x 0.05 |
11000 x 0.05 |
16000 x 0.05 |
| dwt |
78.6 x 0.001 |
141.7 x 0.001 |
206.2 x 0.001 |
786 x 0.01 |
1417 x 0.01 |
2062 x 0.01 |
| GN |
1882 x 0.02 |
3395 x 0.02 |
4938 x 0.02 |
18827 x 0.2 |
33951 x 0.2 |
49383 x 0.2 |
