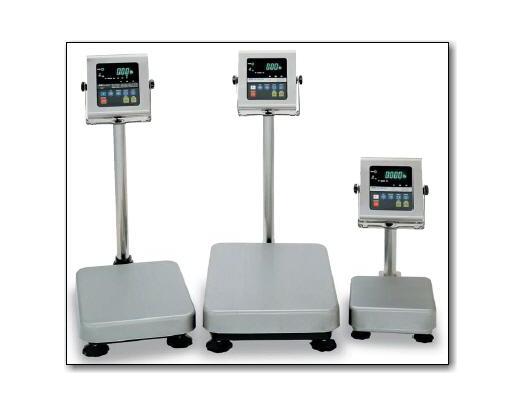

Balances, Single Range Washdown Scale, HW-WP Series, A&D Weighing
HW-WP Series
Ideal for applications requiring enhanced resolution
- Preset Tare Tare values can be digitally stored.
- Comparator Function Sets the high and low weight targets and shows HI/OK/LO on the display.
- Comparator Buzzer Optional comparator output sounds at user defined settings.
- Setpoint Control for Simple Batching The weighing data can be controlled at 3 setpoints Full Flow/Preliminary/Zero Band outputs.
- Weighing Units and Mode By pressing one key, weighing units and mode can be changed.
- Compatible with the AD-8121 Printer
- Standard RS-232C RS-232C bi-directional serial port to connect to a PC.
- Counting and Percentage Modes
- M+ function for totaling weighing data
- Adjustable and Detachable stainless steel display
- Hold Function Holds the current display value.
| Catalog No.
| B144-44
| B144-45
| B144-46
| B144-47
|
| Model No.
| HW-10KWP
| HW-60KWP
| HW-100KWP
| HW-200KWP
|
| Capacity (kg)
| 10 |
60 |
100 |
220 |
| Resolution (kg)
| 0.001 |
0.005 |
0.01 |
0.02 |
| Capacity (lb)
| 20 |
150 |
200 |
500 |
| Resolution (lb)
| 0.002 |
0.01 |
0.02 |
0.05 |
| Capacity (oz)
| 320 |
2400 |
3200 |
8000 |
| Resolution (oz)
| 0.05 |
0.2 |
0.5 |
1 |
| Capacity (lb-oz)
| 20 |
not
available |
not
available |
not
available |
| Resolution (lb-oz)
| 0.1 |
| Max. Count
| 10,000 pieces |
12,000 pieces |
10,000 pieces |
11,000 pieces |
| Operating Temp.
| -10°C ~ 40°C/ 14°F ~ 40°F RH < 85% |
| Linearity
| ±2g |
±10g |
±20g |
±20g |
| PanSize (W x D)
| mm
| 250 x 250 |
330 x 424 |
390 x 530 |
| inch
| 9.8 x 9.8 |
13.0 x 16.7 |
15.4 x 20.9 |
| Phys. Dim. (W x D x H)
| mm
| 250 x 466 x 437 |
330 x 615 x 786 |
390 x 700 x 786 |
| inch
| 9.8 x 18.3 x 17.2 |
13.0 x 24.2 x 30.9 |
15.4 x 27.6 x 30.9 |
| Power
| AC 110 ~ 120 VAC, 60 Hz |
| Weight (approx.)
| 8kg / 17.6lb |
13kg / 28.7lb |
19kg / 41.9lb |
