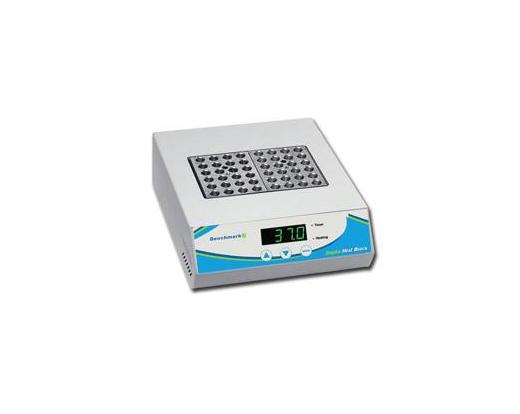

Heating Blocks, Digital Dry Baths, Models BSH1001, BSH1002 and BSH1004, Benchmark

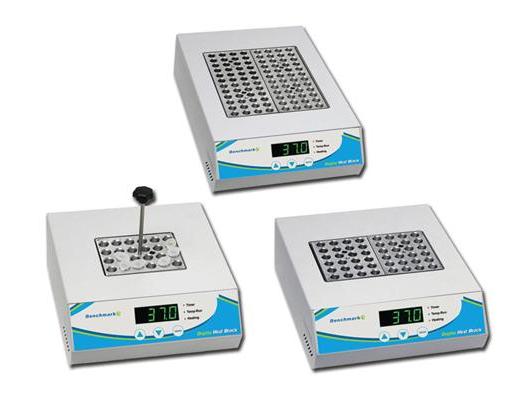

The Benchmark series of digital dry baths offer digital control over both temperature and time, eliminating the need for an external thermometer or timer. Available in three configurations, the digital dry baths offer capacity for up to four blocks. They are extremely space efficient. (The four block model can accommodate up to 96 x1.5ml tubes in less than a square foot of bench space.)
The cavities of the high grade aluminum blocks are precision machined to match the conical size and shape of 0.5, 1.5, 2.0, 15 and 50 mL tube sizes, providing unsurpassed temperature uniformity. Assorted blocks are available for compatibility with nearly all common tube sizes. Custom blocks are also available upon request, please check Benchmark's web site for a list of all available blocks.
All Benchmark dry baths offer a built-in user recalibration function, to guarantee long term temperature accuracy. Each dry bath includes an easy to use block lifter, with a temperature insulated handle for quick, convenient exchange of blocks, even while they’re still hot.
- Digital accuracy and convenience
- Single, double and four block capacity
- Assorted blocks for a wide variety of tube sizes
Temperature Range |
Ambient +5 to 150°C* |
Temperature Accuracy |
±0.2°C |
Temperature Increments |
0.1°C |
Temperature Uniformity |
±0.2°C |
Timer |
1 to 999 minutes |
Dimensions (W x D x H) |
|
Single Position |
7.8 x 9 x 3.2 inch / 20 x 23 x 8 cm |
Dual Position |
8.7 x 10.3 x 3.2 inch / 22 x 26 x 8 cm |
Four Position |
8.7 x 14 x 3.2 inch / 22 x 35.5 x 8 cm |
Block Dimensions (W x D x H) |
3 x 3.75 x 2 inch / 7.6 x 9.5 x 5 cm |
Chamber |
Fast heating aluminum |
Electrical |
115V or 230V, 50-60 Hz
350W (Single)
600W (Dual)
1000W (Four) |
Warranty |
2 Years |
*Temperature range of four position model is ambient +5 to 130°C
Options
Cat No |
Vendor Part No |
Description |
Qty/UOM |
Price |
Qty |
UOM |
H139-7 |
BSW01 |
Solid Block (for slides / machining) |
In Stock |
1 |
$149.04 |
|
EA |
H139-8 |
BSW01-DR |
Custom drilling for BSW01 (sold separately), up to 36 holes |
In Stock |
1 |
$201.16 |
|
EA |
H139-9 |
BSW02 |
Block, 48 x 0.2 mL tubes or 6 PCR strips of 8 tubes each |
In Stock |
1 |
$149.04 |
|
EA |
H139-10 |
BSW1500 |
Block, 24 x 1.5 mL centrifuge tubes (conical) |
In Stock |
1 |
$149.04 |
|
EA |
H139-11 |
BSW1520 |
Block, 24 x 1.5 mL or 2.0 mL centrifuge tubes |
In Stock |
1 |
$149.04 |
|
EA |
H139-12 |
BSW05 |
Block, 24 x 0.5 mL centrifuge tubes |
In Stock |
1 |
$149.04 |
|
EA |
H139-13 |
BSW15 |
Block, 12 x 15 mL centrifuge tubes |
In Stock |
1 |
$149.04 |
|
EA |
H139-14 |
BSW10 |
Block, 20 x 10 mm test tubes or 20 x 2.0 mL centrifuge tubes |
In Stock |
1 |
$149.04 |
|
EA |
H139-15 |
BSW13 |
Block, 20 x 12 mm or 13 mm test tubes |
In Stock |
1 |
$149.04 |
|
EA |
H139-16 |
BSW50 |
Block, 5 x 50 mL centrifuge tubes |
In Stock |
1 |
$149.04 |
|
EA |
H139-17 |
BSW1516 |
Block, 12 x 15 mm or 16 mm test tubes |
In Stock |
1 |
$149.04 |
|
EA |
H139-18 |
BSWPCR1 |
Block, PCR plate 96 x 0.2 mL, skirted or non-skirted For 1-block dry bath only |
In Stock |
1 |
$335.78 |
|
EA |
H139-19 |
BSWPCR2 |
Block, PCR plate 96 x 0.2 mL, skirted or non-skirted For 2 or 4-block dry bath only |
In Stock |
1 |
$323.83 |
|
EA |
H139-20 |
BSWMT |
Block, Micro Titer Plate, skirted or non-skirted For 2 or 4-block dry bath only |
In Stock |
1 |
$245.24 |
|
EA |
