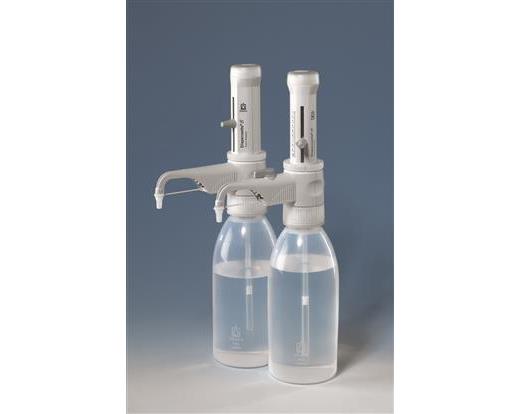

Dispensette TA Bottletop Dispenser
View Larger
Dispensette TA Bottletop Dispenser

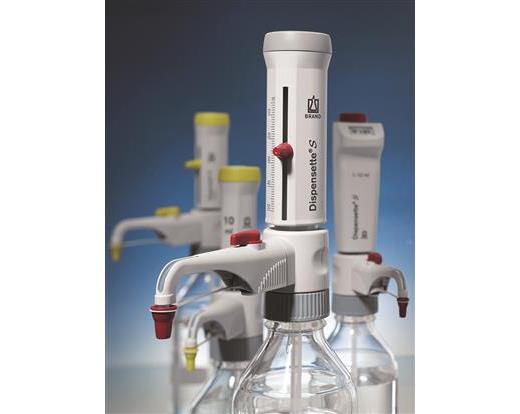

  • Dispensette Bottletop Dispensers

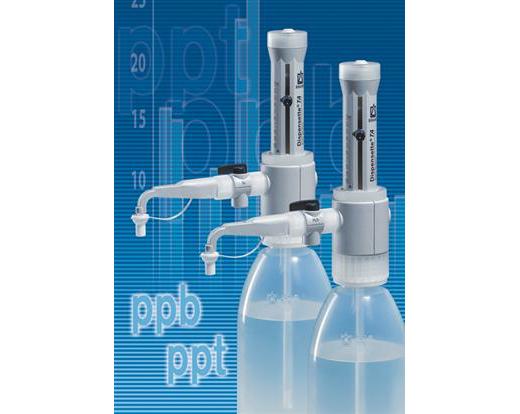

  • Trace Analysis Bottletop Dispenser
  • Dispensette TA Bottletop Dispenser

  • alt view name
  • alt view name
  • alt view name

Bottletop Dispensers, Dispensette® Trace Analysis Bottletop Dispenser, BrandTech®

The Dispensette S Trace Analysis is the next generation bottletop dispenser for precise volume dispensing of high-purity media for trace analysis. It is especially suited for dispensing acids, bases and hydrogen peroxide in the volume range from 1 to 10mL. The components of the fluid path have been selected to only contain the highest purity materials, such as fluoroplastics and sapphire. The result is a trace metal content of dispensed liquid generally in the low ppb range, or even in the low ppt range, depending on the application. Both platinum-iridium and tantalum valve springs are available for application compatibility.

The Dispensette S Trace Analysis bottletop dispenser is supplied with: discharge tube, valve mounting/calibration tool, ETFE and PTFE adapters (GL28, GL32, S40), telescoping filling tube, recirculation tube (optional), performance certificate, operating manual, and one year warranty.

New

Dispensing of high-purity chemicals in trace analysis
  • Plastics in contact with media consist of high-purity materials such as PTFE, ETFE, FEP, and PFA. The purest sapphire is used for replaceable valves. Depending on the application, platinum-iridium or tantalum are available as spring materials.
A field-tested cleaning process before use in trace analysis is described in the operating manual.
  • If contamination of the bottle contents must be avoided, we recommend using the device without the removable SafetyPrime™ recirculation valve
  • The 45mm standard thread plus the included adapters fits most common lab bottles
  • The valve block can be rotated 360° so that the bottle label always faces the user for safety
  • Telescoping filling tube adjusts to different bottle sizes
  • Easy to disassemble for replacement of the dispensing cartridge
New Features:
  • Simple to mount discharge tube available with or without integrated recirculation valve
  • Designed without additional sealing rings for ease of cleaning and maintenance
  • Replaceable discharge valve with safety valve
  • Olive-shaped filling valve for firmer attachment of filling tubes
  • Improved flow technology results in faster priming
  • Scalloped track for secure volume setting on analog dispensers

Replaceable Dispensing Cartridge
If the piston seal is worn after a long period of use, the entire dispensing cartridge can easily be replaced without tools by the user. The cartridge is fully adjusted at the factory, and delivered with a performance certificate. No calibration is required after replacement.

Limitations of Use
This instrument is designed for dispensing liquids, observing the following physical limits:
  • Use between 15°C and 40°C (59°F and 104°F) of instrument and reagent
  • Density up to 3.8 g/cm³
  • Vapor pressure up to max. 600 mbar; aspirate slowly above 300mbar in order to prevent the liquid from boiling
  • Kinematic viscosity up to 500 mm²/s (dynamic viscosity [mPas] = kinematic viscosity [mm²/s] x density [b/cm³])
Operating Exclusions
Never use this instrument with:
  • Liquids attacking Al2O3 sapphire or fluoroplastics like ETFE, FEP, PFA, PCTFA and PTFE (e.g., dissolved sodium azide*)
  • Liquids which are decomposed catalytically by platinum-iridium (e.g. H2O2) or tantalum, depending on the construction of the instrument
  • Organic solvents
  • Trifluoroacetic acid
  • Explosive liquids (e.g., carbon disulfide)
  • Suspensions as solid particles may clog or damage the instrument (e.g., of charcoal)
  • The Dispensette® TA must NOT be autoclaved

*Dissolved sodium azide permitted up to a max. concentration of 0.1%

Ordering Info

Cat No Descriptionw/ Recirculation Valve Qty Price Qty UOM
P321-57 Dispensette TA, Bottletop Dispenser, Analog, with SafetyPrime Valve, Platinum-iridium Valve Spring, 1-10mLNo In Stock 1 $1,417.00 EA
P321-58 Dispensette TA, Bottletop Dispenser, Analog, with SafetyPrime Valve, Tantalum Valve Spring, 1-10mLNo In Stock 1 $1,417.00 EA
P321-59 Dispensette TA, Bottletop Dispenser, Analog, with SafetyPrime Valve, Platinum-iridium Valve Spring, 1-10mLYes In Stock 1 $1,459.00 EA
P321-60 Dispensette TA, Bottletop Dispenser, Analog, with SafetyPrime Valve, Tantalum Valve Spring, 1-10mLYes In Stock 1 $1,459.00 EA

Options

Cat No Description Qty/UOM Price Qty UOM
P319-112 Replacement Parts, Dispensette TA, SafetyPrime Valve, Platinum-iridium Valve Spring In Stock 1 $170.00 EA
P319-113 Replacement Parts, Dispensette TA, SafetyPrime Valve, Tantalum Valve Spring In Stock 1 $170.00 EA
P319-114 Replacement Parts, Dispensette TA, Dispensing Catridge with Safety Ring, Calibrated, includes quality certificate, nominal volume 10mL In Stock 1 $714.00 EA
P319-115 Replacement Parts, Dispensette TA, Discharge Tube with Integrated Valve, Platinum-iridium Valve Spring, length 90mm In Stock 1 $135.00 EA
P319-116 Replacement Parts, Dispensette TA, Discharge Tube with Integrated Valve, Tantalum Valve Spring, length 90mm In Stock 1 $135.00 EA
