Centrifuges, Benchtop, Multifuge X4 Pro, Thermo Scientific™

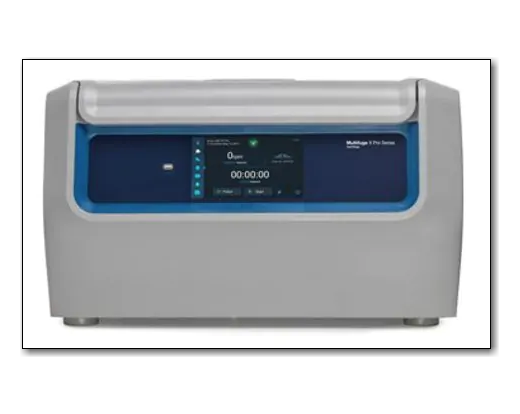

Multifuge X4 Pro Centrifuge
Pro series touch screen enables easier programming for quicker results--plus easily access and track all runs, rotor life and centrifuge health. With capacity up to 4L, including 196-blood tubes and 96-15mL conical tubes, AutoLock for fast rotor exchange.

Thermo Scientific™ Auto-Lock™ III Rotor System

Secure locking system allows easy push-button installation and exchange of rotors
System saves time when switching between applications
Easy access to rotor chamber offers quick cleaning, a healthier working environment and longer unit life

Thermo Scientific ClickSeal™ Bucket Sealing System

Biocontainment solution seals with a snap; eliminates screw caps and complicated clips
System has glove-friendly, one-handed open/close capability
System is certified by CAMR™ in Porton Down, UK

Thermo Scientific SMARTSpin™ Technology

Advanced rotor management system maximizes acceleration, braking and residual load imbalance for each rotor and bucket option
Technology optimizes safety and improves separations

Space-Saving Design

Compact dimensions optimize work area and ergonomic height and curved design ensure easy sample loading and unloading and easy cleaning

Energy Efficient

System offers up to 40% energy consumption savings on industry standard protocols, such as standard blood separation or conical tubes processing

Features
Specifications
Specifications (refrigerated)
Resources

Simple Operation and Design

Full color intuitive touch screen for fast programming, centrifuge health monitoring and up to 100 program storage
Modern industrial design supports continuous improvement in rotor loading ergonomics, user safety and current needed certifications
Detailed operation information, including display of set and actual parameters, maximizes run performance and temperature accuracy for improved sample protection
Easily adjust speed, time and temperature, even during the run, with the convenient keyboard for direct input
Innovative lid-locking technology enables one finger downward motion for easy closing and locking of centrifuge lid, even on tall benches
Double temperature management system displays the air temperature in the chamber as well as the sample temperature, ensuring accurate control of the sample temperature during the run

	C179-124 75009501	C179-125 75009500	C179-132 75009900	C179-136 75016034
Description	Multifuge X4 Pro-MD		Multifuge X4 Pro	Multifuge X4 Pro-MD
Refrigerated	No
Accel/Decel Profiles	Choices of 9 Accel / 10 Decel Rates
Drive System	Direct, Brushless induction low profile motor
Net Weight	89kg			See individual components
Program Storage	Up to 100 Programs, including multi-step programming
Run Time	Up to 99 hrs 59 minutes 59 seconds
Standards	ISO 14971, ISO 13485, ISO 90001
Capacity	Max in TX-1000: 196-5/7mL blood tubes, 148-9/10 mL blood tubes, 96-15mL conical tubes, 40-50mL conical tubes, 6 microplates; 4 x 1000mL BioBottles (with TX-1000 rotors)
Max. RCF	Fixed Angle: 25830 x g (with 30 x 2mL rotor) Swing-Out: 7164 x g (with BIOShield 1000A rotor)
Max. Speed	Fixed Angle: 15,200 x g (with 30 x 2mL rotor) Swing-Out: 6000 x g (with BIOShield 1000A rotor)
Electrical Requirements	120V,50/60Hz,1300W	208-240V, 50/60Hz, 1600W		120V, 60Hz, 1600W
Size Exterior (L x W x H)	27.2 x 22.3 x 14.2 inch (690 x 566 x 362mm)			27.2 x 22.3 x 14.2 inch (690 x 566 x 362mm)
Display	Full Color Touch Screen Interface
Noise Level	<64 dB(A) (Rotor F15-8x50c; 14500 RPM)
Timer	Option to count up or down
Certifications/Compliance	EN/UL/IEC 61010-1EN/UL/IEC 61010-2EN/UL/IEC 61326-1EN/UL/IEC 61326-2FCC part 15			EN/UL/IEC 61010-1EN/UL/IEC 61010-2FCC part 15
Includes	Printed English user manual, USB stick with 28 languages of user manual, corrosion resistance oil, power cord for the according country supply voltage, declaration of conformity
Controller Type	Microprocessor
Material	front, top and sides are out of plastic(PC-ABS) painted with 2K lacquer(PUR based), metal housing is out of cold rolled steel with powder paint(structured), centrifuge bowl is corrosion-resistant high thermal conductivity(STAINLESS STEEL 1.4301 COLD ROLLED). The unit feet are out of rubber.
Rotor Included	No			Yes
Warranty	Centrifuge: 5 Year Limited, Rotor: See Manual
Programmability	Via Touch Screen; Including programmabile Pulse options

	C179-128 75009516	C179-129 75009515	C179-134 75009915	C179-137 75016033
Description	Multifuge X4R Pro-MD		Multifuge X4R Pro	Multifuge X4R Pro-MD
Refrigerated	Yes, CFC-Free, Pre-Temp Available
Temperature Range	-10°C to +40°C, ±2°C
Accel/Decel Profiles	Choices of 9 Accel / 10 Decel Rates
Drive System	Direct, Brushless induction low profile motor
Net Weight	120kg			See individual components
Program Storage	Up to 100 Programs, including multi-step programming
Run Time	Up to 99 hrs 59 minutes 59 seconds
Standards	ISO 14971, ISO 13485, ISO 90001
Capacity	Max in TX-1000: 196-5/7mL blood tubes, 148-9/10 mL blood tubes, 96-15mL conical tubes, 40-50mL conical tubes, 6 microplates; 4 x 1000mL BioBottles (with TX-1000 rotors)
Max. RCF	Fixed Angle: 25830 x g (with 30 x 2mL rotor) Swing-Out: 7164 x g (with BIOShield 1000A rotor)
Max. Speed	Fixed Angle: 15,200 x g (with 30 x 2mL rotor) Swing-Out: 6000 x g (with BIOShield 1000A rotor)
Electrical Requirements	120V,50/60Hz,1450W	220-240V, 50Hz / 230V, 60Hz, 1950W		120V, 60Hz
Size Exterior (L x W x H)	27.2 x 29.4 x 14.2 inch (690 x 746 x 361mm)
Display	Full Color Touch Screen Interface
Noise Level	<64 dB(A) (Rotor F15-8x50c; 14500 RPM)
Timer	Option to count up or down
Certifications/Compliance	EN/UL/IEC 61010-1EN/UL/IEC 61010-2EN/UL/IEC 61326-1EN/UL/IEC 61326-2FCC part 15			EN/UL/IEC 61010-1EN/UL/IEC 61010-2FCC part 15
Includes	Printed English user manual, USB stick with 28 languages of user manual, corrosion resistance oil, power cord for the according country supply voltage, declaration of conformity
Controller Type	Microprocessor
Material	front, top and sides are out of plastic(PC-ABS) painted with 2K lacquer(PUR based), metal housing is out of cold rolled steel with powder paint(structured), centrifuge bowl is corrosion-resistant high thermal conductivity(STAINLESS STEEL 1.4301 COLD ROLLED). The unit feet are out of rubber.
Rotor Included	No			Yes
Warranty	Centrifuge: 5 Year Limited, Rotor: See Manual
Programmability	Via Touch Screen; Including programmabile Pulse options

Ordering Info

Cat No	Vendor Part No	Description	Electrical Requirements	Qty	Price	Qty
C179-124	75009501	Multifuge X4 Pro-MD	120V, 50/60Hz	In Stock	1	$14,400.00	EA
C179-158	75016002	Megafuge ST1R Plus	120V, 50/60Hz	In Stock	1	$13,700.00	EA
C179-125	75009500	Multifuge X4 Pro-MD	208-240V, 50/60Hz	In Stock	1	$14,600.00	EA
C179-128	75009516	Multifuge X4R Pro-MD, Refrigerated	120V, 50/60Hz	In Stock	1	$19,300.00	EA
C179-129	75009515	Multifuge X4R Pro-MD, Refrigerated	220V-240V, 50Hz / 230V, 60Hz	In Stock	1	$19,600.00	EA
C179-160	75009615	Multifuge X4 Pro-MD	220V, 50/60Hz	In Stock	1	$19,600.00	EA
C179-161	75009815	Muyltifuge X4 Pro-MD	220V, 50/60Hz	In Stock	1	$19,200.00	EA
C179-132	75009900	Multifuge X4 Pro	208-240V, 50/60Hz	In Stock	1	$14,300.00	EA
C179-134	75009915	Multifuge X4R Pro, Refrigerated	220V-240V, 50Hz / 230V, 60Hz	In Stock	1	$15,777.00	EA
C179-136	75016034	Multifuge X4 Pro-MD, TX-1000 Blood Tube Package	120V, 60Hz	In Stock	1	$17,100.00	EA
C179-137	75016033	Multifuge X4R Pro-MD, TX-1000 Blood Tube Package, Refrigerated	120V, 60Hz	In Stock	1	$20,000.00	EA
C179-139	75016046	Multifuge X4 Pro-MD, TX-1000 Cell Culture Package	120V, 60Hz	In Stock	1	$17,000.00	EA
C179-140	75016045	Multifuge X4R Pro-MD, TX-1000 Cell Culture Package, Refrigerated	120V, 60Hz	In Stock	1	$19,900.00	EA

Options

Cat No	Vendor Part No	Description	Qty/UOM	Price	Qty
C181-115	75003330	Swinging Bucket Rotor- 16 x 50mL or 36 x 15mL Conical Tubes; 66 x 10mL or 84 x 5/7mL Blood Tubes	In Stock	1	$5,090.00	EA
C181-116	75003338	H-Flex HS4 Spare Bucket	In Stock	2	$2,660.00	PK
C181-117	75003339	H-Flex HS4 Spare Windshield Lid	In Stock	1	$1,160.00	EA
