Centrifuges, Hematocrit Centrifuge, 24-place

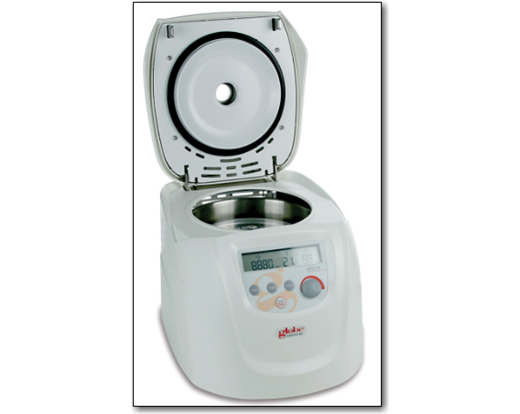

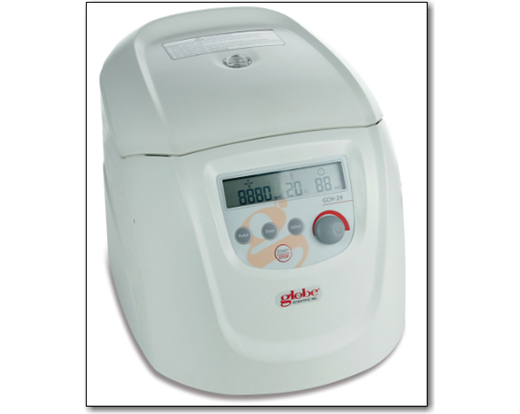

The GCH-24 Hematocrit Centrifuge allows your lab to determine erythrocyte fractions in blood as well as micro solution separations using the included twenty-four (24) place capillary rotor. The included rotor lids enhance user safety and are easy to remove or replace.
Programming is simple with the backlit LCD display, intuitive control buttons and parameter adjustment knob. The timer will not count down until the programmed speed is reached, ensuring accurate results. Setpoint can be set by G-Force or RPM.
Safety Functions
- Door interlock
- Overspeed detector
- Over-temperature detector
- Automatic internal diagnosis
- Automatic rotor identification
- Speed range of 200-14,000rpm, max. RCF 18,620 x G
- Independent control of speed and time
- Easy operation with intuitive menu and easy-to-read display
- Maintenance free brushless DC motor
- Pulse operation for quick spins

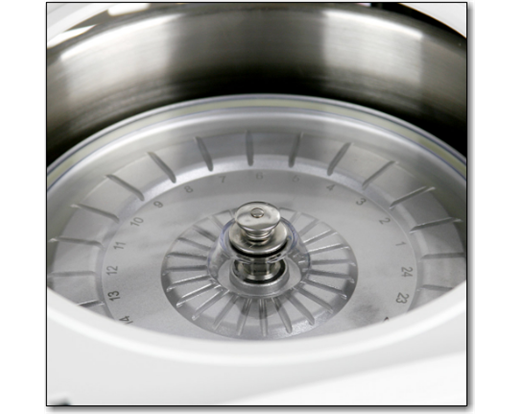

- Included hematocrit rotor- 24 capillary capacity, max. speed of 12,000rpm

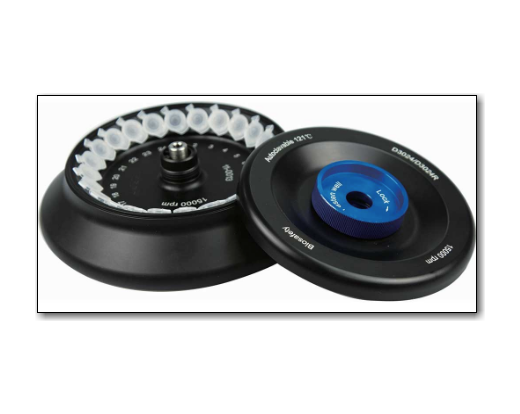

- Optional tube rotor- 24 place 1.5/2mL capacity, max. speed of 14,000rpm
- Includes pulse operation (quick spin)
Advanced Features
- Speed/RCF switch
- Short-time run function
- Audible alert function
| |
GCH-24 (C144-1, 2, 3) |
| Speed |
200-14,000rpm in 10rpm increments |
| Maximum RCF |
18,620 x G |
| Speed Accuracy |
+/- 20rpm |
| Run Time |
30 sec - 99 min or continuous |
| Power |
5A, 500W |
| Display |
Backlit LCD |
| Acceleration Time |
30 second |
| Braking Time |
30 second |
| Dimensions (W x D x H) |
280 x 364 x 266mm (11.0 x 14.3 x 10.5 inch) |
| Weight |
10kg (22lbs) |
| Certifications |
CE, cTÜVus, FCC, MCA |
| Warranty |
2 Years |
