Centrifuges, Multi-function Pro Centrifuge, Frontier™ 5000



You have not viewed any products recently.


Multi Function Pro Centrifuge
View Larger
Multi Function Pro Centrifuge
  • Frontier 5000 Multi Function Pro Centrifuge
  • Multi Function Pro Centrifuge with refrigeration
  • Multi Function Pro frontier 5000 centrifuge
  • Frontier 5000 refrigerated centrifuges
  • Multi Function Pro Centrifuge

  • alt view name
  • alt view name
  • alt view name
  • alt view name
  • alt view name

Centrifuges, Multi-function Pro Centrifuge, Frontier™ 5000

Powerful and Versatile Universal Centrifuges
Virtually Every Lab Application, Frontier 5000 Multi-Pro Centrifuges are designed for universal use in multiple applications in research, industrial, and clinical laboratories and can be combined with our range of rotors and accessories for customized use. Available in 7 models with capacities from 0.2mL to 4 x 750mL, they feature high-speed performance at maximum volume, automatic rotor identification, and safety features.

Rotor Compatibility for Refrigerated Models
Model 5716, C171-3
Swing out 4x750mL ID Sealable; Rotor Angle 4x500mL ID; Angle 6x250mL FB ID; Swing out 4x100mL ID; Swing out 4x100mL ID Sealable; Swing out 2x3MTP ID; Angle 6x85mL RB ID Hi; Angle 6x85mL RB ID; Angle 4x85mL RB ID Hi; Angle 10x50mL FA ID; Angle 6x50mL RB ID Hi; Angle 6x50mL RB/FA ID; Angle 30x15mL RB/FA ID; Angle 20x10mL RB ID Hi; Angle 12x15mL RB/FA ID; Angle 44x1.5/2.0mL ID; Angle 30x1.5/2.0mL ID Sealable; Angle 24x1.5/2.0mL ID Sealable; Angle 24x1.5/2.0mL ID; Angle 12x1.5/2.0mL ID; Angle 64x0.5mL ID; Angle 4x8-w PCR Strip ID

Model 5718, C171-5
Swing out 4x100mL ID; Swing out 4x100mL ID Sealable; Swing out 2x3MTP ID; Angle 6x85mL RB ID Hi; Angle 6x85mL RB ID; Angle 4x85mL RB ID Hi; Angle 10x50mL FA ID; Angle 6x50mL RB ID Hi; Angle 6x50mL RB/FA ID; Angle 30x15mL RB/FA ID; Angle 20x10mL RB ID Hi; Angle 12x15mL RB/FA ID; Angle 44x1.5/2.0mL ID; Angle 30x1.5/2.0mL ID Sealable; Angle 24x1.5/2.0mL ID Sealable; Angle 24x1.5/2.0mL ID; Angle 12x1.5/2.0mL ID; Angle 64x0.5mL ID; Angle 4x8-w PCR Strip ID

Model 5816, C171-7
Swing out 4x250mL ID; Swing out 2x3MTP ID; Swing out 16x50mL ID; Angle 6x250mL FB ID; Angle 6x85mL RB ID; Angle 4x85mL RB ID Hi; Angle 10x50mL FA ID; Angle 6x50mL RB ID Hi; Angle 30x15mL RB/FA ID; Angle 20x10mL RB ID Hi; Angle 44x1.5/2.0mL ID; Angle 24x1.5/2.0mL ID Sealable; Angle 24x1.5/2.0mL ID

Save on purchases made October 22 - December 31, 2024


  • Our multi-purpose centrifuges offer a high-speed centrifugation platform which can be customized to fit workflow needs using a wide variety of rotors and accessories.
  • The intuitive design of the centrifuges and accessories enables easy access to parameter settings and quick rotation between applications. Features include automatic rotor recognition and backlit LCD.
  • The performance of these centrifuges is propelled by German engineering and high quality components for reliable use. Constructed from chemical-resistant stainless steel to ensure durability in lab use.
  C171-1 C171-2 C171-4 C171-6
Speed Range 200 – 14,000rpm 200 – 16,000rpm 200 – 18,000rpm 200 – 15,000rpm
Max Relative Centrifuge Force (x g) 18,624g 24,325g 23,542g 21,379g
Maximum Cap (Rotor) 4 x 100mL 4 x 750mL 4 x 100mL 6 x 250mL
Program memories 99
Rotor In Package Not applicable
Acceleration Gear 10
Deceleration Gear 10
Dimensions (HxLxW) 12.99 x 19.41 x 14.25"
(330 x 493 x 362mm)
15.4 x 26.4 x 21.3"
(390 x 670 x 540mm)
13.82 x 19.65 x 16.06"
(351 x 499 x 408mm)
13.94 x 21.18 x 17.56"
(354 x 538 x 446mm)
Display LCD with backlight 2-line, backlit LCD LCD with backlight
Lid lock Mechanical Motor driven
Net Weight 66 lb (30kg) 187 lb (85kg) 95 lb (43kg) 115 lb (52kg)
Noise Level ≤63±2 dB(A) ≤60±2 dB(A) ≤61±2 dB(A)
Power AC Power (Included)
Power Consumption 300W 680W 475W 520W
Pre-cool time Not applicable
Rotor Compatibility Swing out 4 x 100mL ID; Swing out 4 x 100mL ID Sealable; Swing out 2 x 3MTP ID; Angle 6 x 50mL RB/FA ID; Angle 30 x 15mL RB/FA ID; Angle 12 x 15mL RB/FA ID; Angle 30 x 1.5/2.0mL ID Sealable; Angle 24 x 1.5/2.0mL ID Sealable; Angle 24 x 1.5/2.0mL ID Swing out 4 x 100mL ID; Swing out 4 x 100mL ID Sealable; Swing out 2 x 3MTP ID; Angle 6 x 50mL RB/FA ID; Angle 30 x 15mL RB/FA ID; Angle 12 x 15mL RB/FA ID; Angle 30 x 1.5/2.0mL ID Sealable; Angle 24 x 1.5/2.0mL ID Sealable; Angle 24 x 1.5/2.0mL ID; Angle 12 x 1.5/2.0mL ID; Angle 64 x 0.5mL ID; Angle 4 x 8-w PCR Strip
Rotor Rec Method Auto
Running Time Quickspin; 10 sec to 99 h 59 min 59 sec; Continous
Safety Cert. CE; FCC
Working Environment 36 – 95°F, 80%RH, non-condensing (2 – 35°C, 80%RH, non-condensing)

Ordering Info

Cat No ModelRotorSpeedPower Qty Price Qty UOM

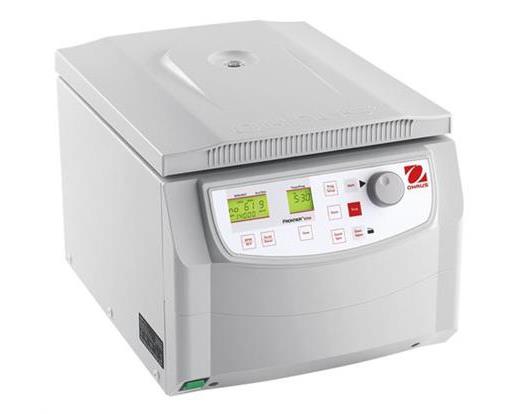

C171-1 MultiPro 57144 x 100mL200-14,000rpm120V / 300W In Stock 1 $3,850.00 $2,695.00 EA

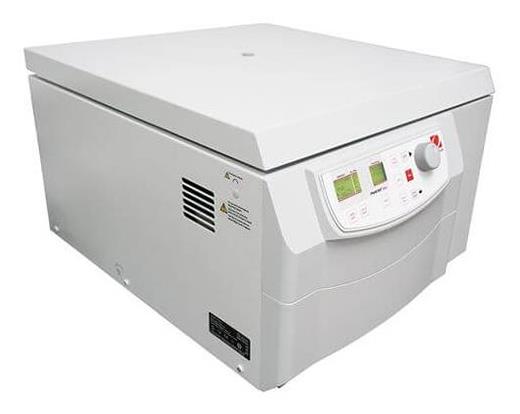

C171-2 MultiPro 57164 x 750mL200-16,000rpm120V / 680W In Stock 1 $8,766.00 $6,136.20 EA

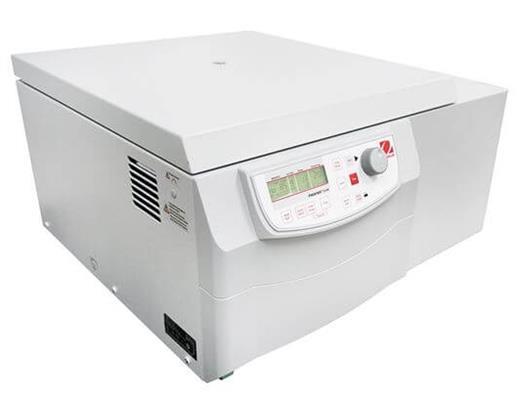

C171-3 MultiPro 5716 Refrigeration4 x 750mL200-16,000rpm120V / 1750W In Stock 1 $12,374.00 $8,661.80 EA
C171-4 MultiPro 57184 x 100mL200-18,000rpm120V / 475W In Stock 1 $5,852.00 $4,096.40 EA
C171-5 MultiPro 5718 Refrigeration4 x 100mL200-18,000rpm120V / 660W In Stock 1 $8,517.00 $5,961.90 EA

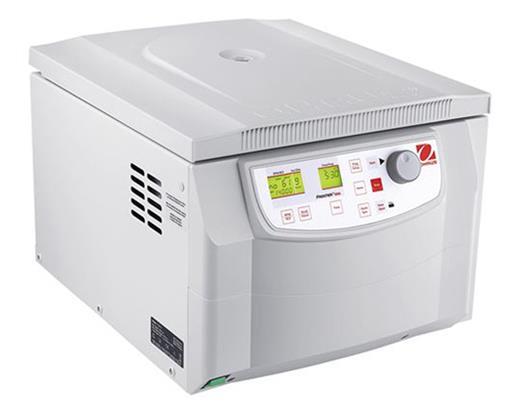

C171-6 MultiPro 58166 x 250mL200-15,000rpm120V / 520W In Stock 1 $6,721.00 $4,704.70 EA

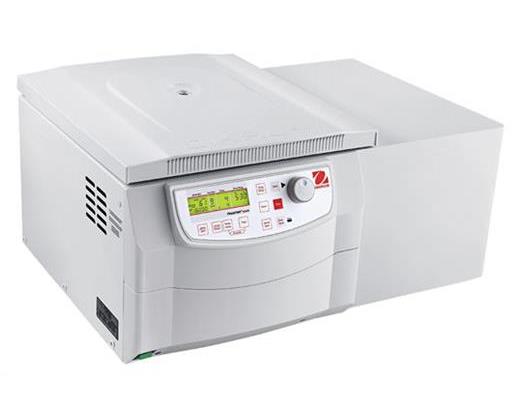

C171-7 MultiPro 5816 Refrigeration6 x 250mL200-16,000rpm120V / 850W In Stock 1 $9,951.00 $6,965.70 EA
