Chillers, DuraChill®, Portable Recirculating Chiller, Positive Displacement Pump

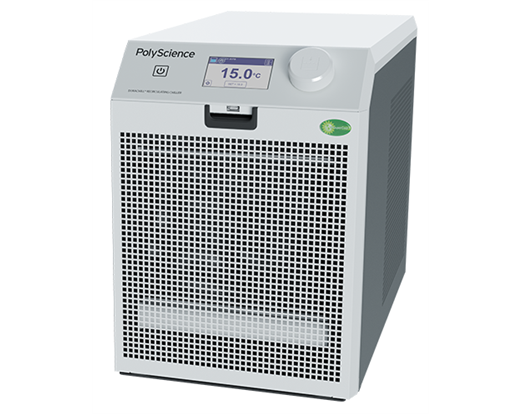

DuraChill® Portable Recirculating Chillers
Optimized refrigeration system ready for future migration to natural refrigerants
A highly optimized refrigeration system allows us to use less refrigerant than ever before, reducing the environmental footprint of the chiller. Everything in the DuraChill line of chillers has been engineered for the future migration to natural, low global warming potential refrigerants: Isolation of power components, non-sparking relays and forward-thinking design go beyond current environmental guidelines.
Intelligent Self Diagnostic System
DuraChill features an Intelligent Self Diagnostic system that allows each DuraChill chiller to store its complete initial operating performance profile in onboard on the day it is built. At any time, users can initiate the Self Diagnostic System to compare current performance against data stored on the day the chiller was first manufactured allowing for quick and definitive troubleshooting of performance issues.
- Working Temperature is -10° to +70°C
- Large, full-color touchscreen display with intuitive interface and support for five different languages
- Compact, portable design takes up less floor space
- Cooling at ambient temperatures as high as 30°C
- Choice of pumps and compressor sizes
- DynamicFilter™ self-cleaning filter system
- Front fill reservoir
- Liquid level monitoring to prevent pump failure
- Ultraviolet anti-biological light system
- User-adjustable temperature, pressure, and flow rate alarms
- Heat up to 70°C, without additional options; ideal for applications, such as lasers, that must be brought to a temperature above ambient before operation can begin
- External temperature tracking and communications capability (optional)
- Cool Command™, WhisperCool®
| |
CA02
W256-171 | 172 |
CA03
W256-173 | 174 |
CA05
W256-175 | 176 |
CA10
W256-177 | 178 |
| Cooling Capacity @ 20°C |
60Hz: 0.85 kW
50Hz: 0.7 kW |
60Hz: 1.4 kW
50Hz: 1.28 kW |
60Hz: 1.74 kW
50Hz: 1.84 kW |
60Hz: 2.9 kW
50Hz: 2.65kW |
| Fluid Temperature Range |
-10 to 70°C / 14 to 158°F |
| Temperature Stability |
±0.1°C |
| Displayable Temperature Units |
°C or °F |
| Displayable Pressure Units |
PSI or kPa |
| Pump Inlet and Outlet |
1/2 inch female NPT |
| Connectivity Options |
RS-232, USB Serial Port Emulation, USB TMC, Dry Contact On/Off/Status |
| Selectable Operating Languages |
English, Spanish, French, German, Mandarin |
| Self Changing Air Filter |
Yes |
| UV Biological Growth Inhibitor |
Yes |
| Optional Remote Temp Probe |
Remote monitoring / Remote Control |
| Ambient Air Temperature Tracking |
Yes |
| Pump Pressure Range |
60Hz: 45 to 100 psi / 310 to 689 kPa
50Hz: 20 to 83 psi / 138 to 572 kPa |
20-100psi/138-689 kPa
20-83 psi/138-572 kPa |
| Max Pump Flow Rate |
60Hz: 2.6 gpm / 9.8L/m
50Hz: 2.0 gpm / 7.6L/m |
3.5 gpm/ 13.2L/m
2.9 gpm/ 11L/m |
| Power Requirements |
120V, 60Hz, 13.6A
240V, 50Hz, 8.2A |
120V, 60Hz, 16.1A
240V, 50Hz, 8.3A |
120V, 60Hz, 17.3A
240V, 50Hz, 8.5A |
230V, 60Hz, 13.4A
240V, 50Hz, 12.0A |
Ordering Info
| Cat No |
Model | HP | Max Flow Rate | Max Pressure | Power |
Qty |
Price |
Qty |
UOM |
| W256-171 |
Durachill CA02 | 1/4HP | 2.6 gpm (9.8L/min) | 100 psi (6.9 bar) | 120V, 60Hz, 850W |
In Stock |
1 |
$6,543.75 |
|
EA |
| W256-172 |
Durachill CA02 | 1/4HP | 2.0 gpm (7.6 l/min) | 83 psi (5.7 bar) | 240V, 50Hz, 700W |
In Stock |
1 |
$6,543.75 |
|
EA |
| W256-173 |
Durachill CA03 | 1/3HP | 2.6 gpm (9.8L/min) | 100 psi (6.9 bar) | 120V, 60Hz, 1400W |
In Stock |
1 |
$6,946.00 |
|
EA |
| W256-174 |
Durachill CA03 | 1/3HP | 2.0 gpm (7.6L/min) | 83 psi (5.7 bar) | 240V, 50Hz, 1280W |
In Stock |
1 |
$6,946.00 |
|
EA |
| W256-175 |
Durachill CA05 | 1/2HP | 2.6 gpm (9.8L/min) | 100 psi (6.9 bar) | 120V, 60Hz, 1742W |
In Stock |
1 |
$7,381.00 |
|
EA |
| W256-176 |
Durachill CA05 | 1/2HP | 2.0 gpm (7.6L/min) | 83 psi (5.7 bar) | 240V, 50Hz, 1836W |
In Stock |
1 |
$7,381.00 |
|
EA |
| W256-177 |
Durachill CA10 | 1HP | 3.5 gpm (13.2L/min) | 100 psi (6.9 bar) | 208-230V, 60Hz, 2900W |
In Stock |
1 |
$8,794.75 |
|
EA |
| W256-178 |
Durachill CA10 | 1HP | 2.9 gpm (11L/min) | 83 psi (5.7 bar) | 240V, 50Hz, 2650W |
In Stock |
1 |
$8,794.75 |
|
EA |
