Condensers, Friedrich Condenser, Full Length Sidearm, Kimble | DWK Life Sciences
KIMAX one piece sealed unit with a ST outer joint at the inlet and a ST inner joint at the outlet. The spiraled cold finger cooling tube is specially shaped to increase the cooling surface area. Sidearm is sealed to the jacket at a 75° angle. Hose connections accept 3/8 inch I.D. flexible tubing.

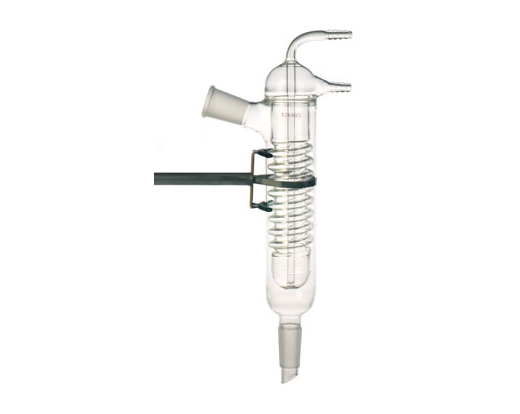

Friedrich Condenser with Standard Taper Sidearm (C721-1)
Friedrich condenser specially designed to provide a long vapor path, good heat transfer and anti-flooding characteristics.
- Molded inner spiral provides surface area for the condensation of the product
- Inclined Standard Taper outer joint on the side
- Water inlet and outlet located above ring-sealed inner condensing tube
- Standard Taper inner drip joint at the bottom
- Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements

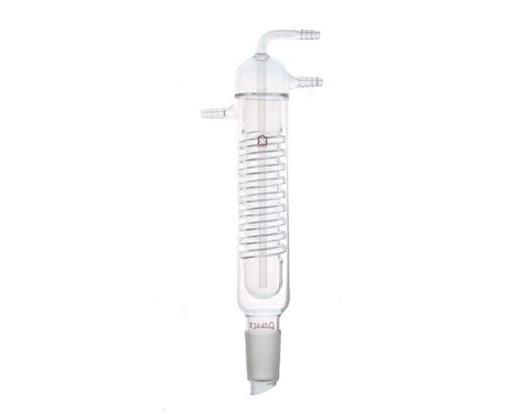

Friedrich Condenser with Hose Connection Sidearm (C721-5, C721-6)
Friedrich condenser used primarily in reflux mode and Soxhlet extractions.
- Water inlet and outlet located above ring-sealed inner condensing tube
- Standard Taper inner drip joint and side outlet for drying tube, etc.
- Molded inner spiral provides surface area for the condensation of the product
- Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
