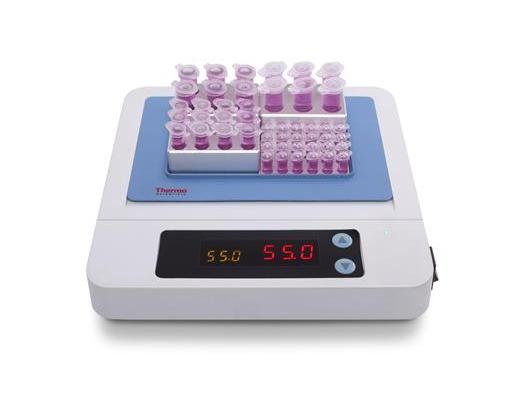

Digital Dry Baths, Block Heaters, Thermo Scientific

Digital Dry Bath Features

DIGITAL controls and display of time and temperature
Built-in temperature-sensing probe for improved temperature accuracy and control
Precise temperature control with PID circuit
Temperature calibration enables to offset the temperature to desired value
Timer enables the user to accurately monitor the heating time

Touch Screen Dry Bath Features

Touch Screen controls and displays time and temperature
10 user setting programs, each supports up to 5 sequential steps of different temperature and duration times
Includes Temperature Probe
Temperature calibration enables to offset the temperature to desired value
Temperature deviation adjustment
Optional External Probe: when the external temperature sensor is connected, the internal temperature sensor will disconnect automatically; the temperature control and display will relay on the external temperature sensor
Timer enables the user to accurately monitor the heating time

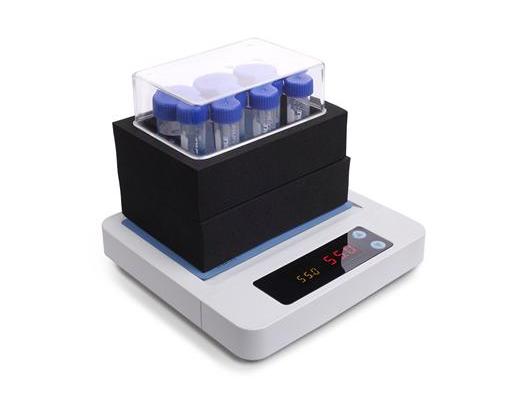

Compact Dry Bath Features

Digital temperature controls and display
Built-in temperature-sensing probe for improved temperature accuracy and control
Precise temperature control
Fast heating rate
Small footprint and light weight; 12V low voltage power input
Includes lid for even better temperature uniformity

Promotional pricing valid on purchases October 21 through December 31, 2024

Features
Specifications
Resources

Temperature range: Ambient 5°C – 130°C (compact – 100°C)
Built-in temperature sensing probe for outstanding temperature accuracy and control
Precise temperature control with PID circuit
Interchangeable aluminum alloy sample blocks provide for maximum tube size versatility and allow for easy cleaning and disinfecting
Powder-coated steel body construction ensures durability
2 year warranty
Blocks sold separately

	H137-30	H137-32	H137-34	H137-36	H137-38	H137-40	H137-42	H137-44
Temperature Range (Metric)	Ambient 5° to 130°C (Ambient at 25°C)						Ambient 2° to 100°C (Ambient at 25°C)
Temperature Uniformity	= ± 1°C						= ± 0.5°C
Temperature Accuracy	= ± 0.5°C
Heating Rate	=20 minute (30° to 130°C		=25 minute (30° to 130°C	=20 minute (30° to 130°C		=25 minute (30° to 130°C	16 minute average heating rate (30° to 100°C, ambient at 25°C, with one 0.2mL block)	20 minute average heating rate (30° to 100°C, ambient at 25°C, with one 0.2mL block)
Certifications/Compliance	CE, cULus, RoHS						CE, cTUVus, RoHS
Electrical Requirements (fuse)	250V, 2.5A	250V, 5A	250V, 8A	250V, 2.5A	250V, 5A	250V, 8A	12V DC, 5A	12V DC, 7A
No. of Blocks (must be ordered separately)	1	2	4	1	2	4	Full block, 2 half blocks, 4 quarter blocks or 1 half and 2 quarter blocks	2 full blocks, 4 half blocks, 8 quarter blocks or a combination of full/half and quarter blocks
Weight (English)	2.9kg (6.39 lbs)	3.3kg (7.28 lbs)	4.7kg (1.036 lbs)	3.4kg (7.5 lbs)	3.7kg (8.16 lbs)	5.1kg (11.24 lbs)	<1kg (2.2 lbs)	<1.5kg (3.3 lbs)
Controller Type	PID Digital						Digital
Warranty	2 Year, Replacement

Ordering Info

Cat No	Vendor Part No	Type	No of Blocks	Power	Dimensions, mm	Includes	Qty	Price	Qty
H137-30	88870001	Digital Dry Bath	1	100-120V / 50/60Hz	288L x 200W x 100Hmm (11.3 x 7.9 x 3.9 inch)	Dry bath, US style plug, Block lifter	In Stock	1	$598.00	EA
H137-31	88870004	Digital Dry Bath	1	200-240V / 50/60Hz	288L x 200W x 100Hmm (11.3 x 7.9 x 3.9 inch)	Dry bath, CN, EU and UK plugs, Block lifter	In Stock	1	$620.00	EA
H137-32	88870002	Digital Dry Bath	2	100-120V / 50/60Hz	318L x 200W x 100Hmm (12.5 x 7.9 x 3.9 inch)	Dry bath, US style plug, Block lifter	In Stock	1	$662.00	EA
H137-33	88870005	Digital Dry Bath	2	200-240V / 50/60Hz	318L x 200W x 100Hmm (12.5 x 7.9 x 3.9 inch)	Dry bath, CN, EU and UK plugs, Block lifter	In Stock	1	$687.00	EA
H137-34	88870003	Digital Dry Bath	4	100-120V / 50/60Hz	450L x 200W x 100Hmm (17.7 x 7.9 x 3.9 inch)	Dry bath, US style plug, Block lifter	In Stock	1	$800.00	EA
H137-34PROMO	88870003PM	Digital Dry Bath	4	100-120V / 50/60Hz	450L x 200W x 100Hmm (17.7 x 7.9 x 3.9 inch)	Dry bath, US style plug, Block lifter	In Stock	1	Inquire	EA
H137-35	88870006	Digital Dry Bath	4	200-240V / 50/60Hz	450L x 200W x 100Hmm (17.7 x 7.9 x 3.9 inch)	Dry bath, CN, EU and UK plugs, Block lifter	In Stock	1	$823.00	EA
H137-36	88870007	Touch Screen Dry Bath	1	100-120V / 50/60Hz	373L x 200W x 100Hmm (14.7 x 7.9 x 3.9 inch)	Dry bath, US style plug, Block lifter	In Stock	1	$872.00	EA
H137-37	88870010	Touch Screen Dry Bath	1	200-240V / 50/60Hz	373L x 200W x 100Hmm (14.7 x 7.9 x 3.9 inch)	Dry bath, CN, EU and UK plugs, Block lifter	In Stock	1	$894.00	EA
H137-38	88870008	Touch Screen Dry Bath	2	100-120V / 50/60Hz	403L x 200W x 100Hmm (15.9 x 7.9 x 3.9 inch)	Dry bath, US style plug, Block lifter	In Stock	1	$992.00	EA
H137-39	88870011	Touch Screen Dry Bath	2	200-240V / 50/60Hz	403L x 200W x 100Hmm (15.9 x 7.9 x 3.9 inch)	Dry bath, CN, EU and UK plugs, Block lifter	In Stock	1	$1,020.00	EA
H137-40	88870009	Touch Screen Dry Bath	4	100-120V / 50/60Hz	535L x 200W x 100Hmm (21.1 x 7.9 x 3.9 inch)	Dry bath, US style plug, Block lifter	In Stock	1	$1,220.00	EA
H137-41	88870012	Touch Screen Dry Bath	4	200-240V / 50/60Hz	535L x 200W x 100Hmm (21.1 x 7.9 x 3.9 inch)	Dry bath, CN, EU and UK plugs, Block lifter	In Stock	1	$1,240.00	EA
H137-42	88871001	Compact Digital Dry Bath	1	100-120V / 50/60Hz	185L x 185W x 25Hmm (7.3 x 7.3 x 1 inch)	Dry bath, US style plug, block lifter, Plastic lid	In Stock	1	$472.00	EA
H137-43	88871003	Compact Digital Dry Bath	1	200-240V / 50/60Hz	185L x 185W x 25Hmm (7.3 x 7.3 x 1 inch)	Dry bath, CN, EU and UK plugs, Block lifter, Plastic lid	In Stock	1	$495.00	EA
H137-44	88871002	Compact Digital Dry Bath	2	100-120V / 50/60Hz	200L x 200W x 25Hmm (7.9 x 7.9 x 1 inch)	Dry bath, US style plug, block lifter, Plastic lid	In Stock	1	$644.00	EA
H137-45	88871004	Compact Digital Dry Bath	2	200-240V / 50/60Hz	200L x 200W x 25Hmm (7.9 x 7.9 x 1 inch)	Dry bath, CN, EU,and UK style plugs, Block lifter, Plastic lid	In Stock	1	$669.00	EA

Options

Cat No	Vendor Part No	Description	Qty/UOM	Price	Qty
H137-46	88870103	Dry Bath Block- 28 x 1.5mL block	In Stock	1	$111.00	EA
H137-47	88870102	Dry Bath Block- 28 x 10mm dia. block	In Stock	1	$121.00	EA
H137-48	88870105	Dry Bath Block- 24 x 13mm dia. block	In Stock	1	$124.00	EA
H137-53	88871103	Dry Bath Block- 6 x 1.5mL Compact block	In Stock	1	$30.90	EA
H137-54	88871104	Dry Bath Block- 6 x 2.0mL, 36 x 54 x 30mm (1.4 x 2.1 x 1.2 inch)	In Stock	1	$30.90	EA
H137-49	88870122	Temperature Probe, PT1000, 130°C, Steel, LED	In Stock	1	$48.00	EA
H137-55	88871110	Plastic Lid, Compact S models, 86 x 122 x 40mm (3.4 x 4.8 x 1.6 inch)	In Stock	1	$12.00	EA
