Centrifuges, Multipurpose, Model 5804 and 5804R, Eppendorf®

home > centrifuge > centrifuges > centrifuges, multipurpose, model 5804 and 5804r, eppendorf®
Print Recently Viewed


You have not viewed any products recently.

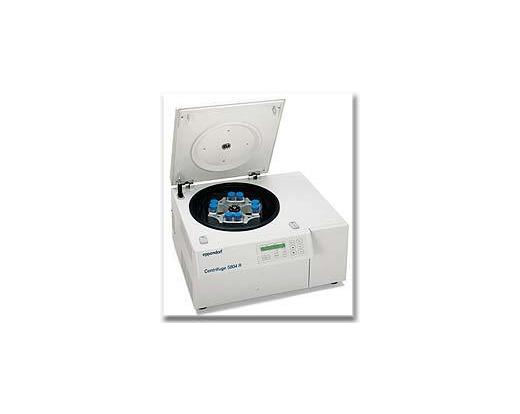

Eppendorf® Multipurpose Centrifuges, Model 5804 and 5804R
View Larger
Eppendorf® Multipurpose Centrifuges, Model 5804 and 5804R
  • Eppendorf® Multipurpose Centrifuges, Model 5804 and 5804R
  • Eppendorf® Multipurpose Centrifuges, Model 5804 and 5804R

  • alt view name
  • alt view name

Centrifuges, Multipurpose, Model 5804 and 5804R, Eppendorf®

Eppendorf centrifuges 5804 and 5804R with their renowned quality and reliability offer you the most cost efficient solutions for your medium to high-throughput applications—now and in the future. Models 5804 and 5804R are ideal for applications in deepwell plates or for molecular applications in large volume tubes up to 100mL (max. 15,500 x g). The optional 4 x 250mL swing-bucket rotor adds flexibility and makes Models 5804 and 5804R winners for medium throughput laboratories.

Deepwell plate Rotor A-2-DWP
  • Maximum speed: 2,250 x g (3,700 rpm)
  • Rotor can handle up to:
    • 2 x 5 MTP
    • 2 x 4 Cell culture plates
    • 2 x 2 DWP
    • 2 x 1 Filtration plate kits
  • Maximum loading height of 89 mm

4 x 250mL swing-bucket rotor for cell culture, bacteria and blood sample centrifugation. Speed up to 3,234 x g (4,200 rpm)

4 x 250mL swing-bucket rotor for cell culture, bacteria and blood sample centrifugation. Speed up to 3,234 x g (4,200 rpm)

Deepwell plate Rotor A-2-DWP
  • Maximum speed: 2,250 x g (3,700 rpm)
  • Rotor can handle up to:
    • 2 x 5 MTP
    • 2 x 4 Cell culture plates
    • 2 x 2 DWP
    • 2 x 1 Filtration plate kits
  • Maximum loading height of 89mm

4 x 250mL swing-bucket rotor for cell culture, bacteria and blood sample centrifugation. Speed up to 3,234 x g (4,200 rpm)

4 x 100mL swing-bucket rotor for cell culture, bacteria and blood sample centrifugation. Speed up to 4,500 x g (5,000 rpm)

Aerosol-tight 6 x 50mL conical tube Rotor C166-108
  • Rotor for high-speed centrifugation of tubes up to 50mL
  • Aerosol-tight2 rotor rid for safe centrifugation of hazardous samples
  • Maximum speed: 16,639 x g (11,000 rpm) or 20,130 x g (12,100 rpm) when used in Model 5810R
  • Rotor features a unique QuickLock™ closure for fast and reliable lid locking
  • Eppendorf’s advanced rotor design minimizes weight for easy lifting and carrying (weight incl. lid: 3.17 kg)
  • 45° borehole angle for compact pellets at the bottom of the tube—minimizes pellets smear along the tube wall
  • Adapters for 15 mL conical and other tubes available
GSA


  • High centrifugation speed up to 20,800 x g (14,000 rpm) for molecular applications in tubes from 0.2 to 250mL
  • Aerosol-tight rotors and covers for all centrifuge applications involving hazardous materials (pathogenic bacteria, viruses, blood samples or radioactive material)
  • The benchmark for ergonomic operation: Low sound level to benefit your work environment
  • Low profile design for ergonomic loading/unloading of rotor
  • Advanced rotor design minimizes fixed-angle rotor weight for easy lifting and carrying
  • Automatic rotor recognition and imbalance detection for maximum operational safety
  • Centrifuge performance you can count on: Outstanding software control guarantees high accuracy of time (±2 s in 5 min), speed (1%) and temperature (±2°C at 6°C) for maximum run reproducibility
  • Temperature range from –9°C to 40°C, with Fast Temp function for rapid cooling of the centrifuge chamber*
  • Standby cooling maintains temperature when not in use
  • Centrifuge lid with soft-touch lid closure and low opening height for stress-free lid locking
  • Optional "At Set RPM" mode starts timer when set speed is reached for maximum run-to-run reproducibility independent of rotor load or acceleration speed setting
  • Possibility for adapter-specific rotor radius adjustment to guarantee maximum RCF accuracy
  • Designed to fit in every lab: Compact footprint saves valuable bench space
  • Low lid opening height and opening angle for use under shelves
  • Short depth and low weight for a multipurpose centrifuge allows placement on standard laboratory benches
  • 120V power supply for use on standard outlets provides maximum placement flexibility
  • Compliant to international safety standards—no need to bolt the unit to the table
  • 2-year warranty
  Centrifuge 5804 Centrifuge 5804R
Max g-force 20,800 rcf 20,800 rcf
Speed range 200-14,000 rpm 200-14,000 rpm
Capacity 4 x 250 mL (SB), 6 x 100 mL (F), 4 x DWP 4 x 250 mL (SB), 6 x 100 mL (F), 4 x DWP
Number of rotors 12 12
Capacity for 1.5mL tubes 104 104
Capacity for 50mL conical tubes 16 16
Capacity for PCR plates 10 10
Refrigeration No Yes
Temperature control range N/A -9°C to 40°C
Power supply 120V, 50/60Hz 120V, 50/60Hz
Required current Standard 15 Amp Standard 15 Amp
Power consumption max. 950W max. 1300W
Acceleration time to max speed Depends on rotor and ramp speed Depends on rotor and ramp speed
Braking time from max speed Depends on rotor and ramp speed Depends on rotor and ramp speed
Timer 1 to 99 min, with cont. mode 1 to 99 min, with cont. mode
Noise level <51 dB(A) <58 dB(A)
Dimensions (W x D x H) 18 x 20 x 13 inch / 47 x 50 x 34cm 25 x 20 x 13 inch / 63 x 50 x 34cm
Height with lid open 29 inch / 74cm 29 inch / 74cm
Weight 121 lb / 55kg 176 lb / 80kg
GSA Link

Ordering Info

Cat No Vendor Part No ModelDescriptionPower Qty Price Qty UOM
C166-1 022622501 5804Centrifuge, without rotor120V / 60Hz In Stock 1 $6,810.00 EA
C166-2 022622552 5804Centrifuge, without motor230V / 50Hz In Stock 1 $6,810.00 EA
C166-17 022629948 5804Centrifuge, with 4 x 100mL
swing-bucket rotor		120V / 60Hz In Stock 1 $8,427.00 EA
C166-147 5804000579 5804Centrifuge, with 4 x 250mL rotor,
round buckets		120V / 50/60Hz In Stock 1 $9,326.00 EA
C166-3 022623508 5804RCentrifuge, refrigerated, without rotor120V / 60Hz In Stock 1 $11,433.00 EA
C166-111 022625080 5804RCentrifuge, refrigerated, without rotor120V / 60Hz
20AMP version		 In Stock 1 $11,433.00 EA
C166-4 022623559 5804RCentrifuge, refrigerated, without rotor230V / 50Hz In Stock 1 $11,433.00 EA
C166-93 022629964 5804RCentrifuge, refrigerated, with
4 x 100mL swing-bucket rotor		120V / 60Hz In Stock 1 $12,267.00 EA
C166-149 022629981 5804RCentrifuge, refrigerated, with
4 x 100mL rotor, rectangular buckets		120V / 50/60Hz In Stock 1 $12,267.00 EA
C166-148 5805000572 5804RCentrifuge, refrigerated, with
4 x 250mL rotor		120V / 50/60Hz In Stock 1 $11,511.00 EA

Options

Cat No Vendor Part No Description Qty/UOM Price Qty UOM
C166-25 022637207 Rotor, F-34-6-38, fixed-angle rotor, 6 x 85mL includes lid In Stock 1 $3,492.86 EA
C166-108 5820715006 Rotor, FA-45-6-30, fixed-angle rotor, 6 × 15/50mL Falcon® tubes or 6 × 10/16/30/35mL Oak Ridge tubes, includes aerosol-tight QuickLock™ rotor lid In Stock 1 $3,574.29 EA
C166-21 022637002 Rotor, F-45-30-11, fixed-angle rotor 30 x 1.5/2mL, includes aluminum lid In Stock 1 $1,638.21 EA
C166-22 022637100 Rotor, FA-45-30-11, fixed-angle rotor 30 x 1.5/2mL, includes aluminum lid, aerosol-tight In Stock 1 $2,213.57 EA
C166-89 022638581 Rotor, F-45-48-PCR, fixed-angle rotor for 6 x 8-tube, 6 x 5-tube strips or 48 x 0.2mL PCR tubes In Stock 1 $2,883.21 EA
C166-87 022638564 Rotor, A-2-DWP, deepwell-plate rotor includes 2 buckets In Stock 1 $2,842.50 EA
C166-33 022637401 Rotor, A-4-44, swing-bucket rotor, includes 4 x 100mL rectangular buckets In Stock 1 $2,328.21 EA
C166-84 022638505 Rotor, T-60-11 Drum rotor, includes lid, for use with 6 adapters In Stock 1 $3,885.00 EA
C166-116 5804746007 Swing Bucket Rotor for volumes up to 250mL. Max speed 3,234 x g (4,200 rpm) In Stock 1 $3,182.14 EA
C166-117 5820772000 Fixed Angle Rotor with 48 sleeves, 40 inserts and 40 mats for 40 x 15mL tubes. Max speed 5,050 x g (5,500 rpm) In Stock 1 $2,101.07 EA
C166-118 5820760001 Fixed Angle Rotor for 48 x 1.5/2mL tubes, with Aerosol-tight QuickLock Lid, Max speed 19,803 x g (13,000 rpm) In Stock 1 $2,437.50 EA
C166-70 5820765003 Fixed Angle Rotor for 48 x 1.5/2mL tubes, with Aerosol-tight QuickLock Lid. Max speed 19,803 x g (13,000 rpm) In Stock 1 $2,437.50 EA
C166-109 022639021 Accessory, Rotor stand, fits all rotors for the Centrifuges 5804 / 5804R and 5810 / 5810R In Stock 1 $182.14 EA
C166-110 022664166 Accessory, Rotor key, fits all rotors for the Centrifuges 5804 / 5804R and 5810 / 5810R (except for rotor A-4-81) In Stock 1 $25.71 EA
C166-155 5821020010 Rolling Cabinet for Centrifuge models 5804/5804R, 5810/5810R, with 4 casters (2 lockable) and drawer In Stock 1 $2,706.00 EA
C166-175 5820770007 Adapter, 1 HPLC tube, for all 5.0mL rotors In Stock 4 $61.07 PK
C166-177 5820721006 Adapter, 1 round-bottom tube 20-30mL In Stock 2 $230.36 PK

Related Items

Centrifuges, Storage Cabinet, Models 5804/R, 5810/R, 5910R, 5910Ri, 5920R, Eppendorf®

Centrifuges, Storage Cabinet, Models 5804/R, 5810/R, 5910R, 5910Ri, 5920R, Eppendorf®

Centrifuge, Swing-bucket Rotor/four 100mL Buckets or four 2x50mL Buckets for Centrifuge Models 5804, 5804R, 5810, 5810R, Eppendorf&reg;

Centrifuge, Swing-bucket Rotor/four 100mL Buckets or four 2x50mL Buckets for Centrifuge Models 5804, 5804R, 5810, 5810R, Eppendorf®

Centrifuges, Aerosol-tight Fixed Angle Rotor/30 Microcentrifuge Tubes for Centrifuge Models 5804, 5804R, 5810, 5810R, Eppendorf&reg;

Centrifuges, Aerosol-tight Fixed Angle Rotor/30 Microcentrifuge Tubes for Centrifuge Models 5804, 5804R, 5810, 5810R, Eppendorf®

Centrifuge Rotors, Increased Capacity Rotor, with 4x250mL round buckets, for models 5804/R and 5810/R Centrifuges, Eppendorf&reg;

Centrifuge Rotors, Increased Capacity Rotor, with 4x250mL round buckets, for models 5804/R and 5810/R Centrifuges, Eppendorf®

Centrifuge Rotors, Increased Capacity Rotor, with 48 sleeves, for models 5804/R and 5810/R Centrifuges, Eppendorf&reg;

Centrifuge Rotors, Increased Capacity Rotor, with 48 sleeves, for models 5804/R and 5810/R Centrifuges, Eppendorf®

Centrifuge Rotors, Increased Capacity Rotor, for 48x1.5/2mL tubes, with QuickLock-AT lid, for models 5804/R and 5810/R Centrifuges, Eppendorf&reg;

Centrifuge Rotors, Increased Capacity Rotor, for 48x1.5/2mL tubes, with QuickLock-AT lid, for models 5804/R and 5810/R Centrifuges, Eppendorf®

Centrifuge, Fixed-angle Rotor/1.5mL to 85mL Tubes for Centrifuge Models 5804, 5804R, 5810, 5810R, Eppendorf&reg;

Centrifuge, Fixed-angle Rotor/1.5mL to 85mL Tubes for Centrifuge Models 5804, 5804R, 5810, 5810R, Eppendorf®
