Filtration, Microfiltration Assemblies, ULTRA-WARE® Microfiltration Assembly with Fritted Glass Support and Ground Joint, Kimble | DWK Life Sciences

The 47mm filtration apparatus with fritted glass support is recommended for routine filtration analysis of corrosive liquids and the removal of particulates from HPLC solvents.
  • The ground joint connection eliminates the phthalate contamination that can occur when using silicone or neoprene stoppers
  • The support base has a 40-60 micron porosity glass frit and an integral vacuum connection that is located above the drip tip to prevent contamination of the vacuum line with filtrate droplets
  • Each apparatus is supplied with a funnel, an anodized aluminum clamp, a 47mm fritted glass support base and a filtration flask
  • Joints are 40/35
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
The 90mm filtration assembly with fritted glass support is designed for large volume filtration analysis of corrosive liquids or samples with high particulate loads that would tend to clog a 47mm diameter filter. This unit is also recommended for filtering large volumes of HPLC solvents.
  • The ground glass connection eliminates the possibility of phthalate contamination that can occur when using silicone or neoprene stoppers
  • Each apparatus is supplied with 1000mL funnel; 90mm, 40-60 micron porosity, fritted glass support base; anodized aluminum clamp; and filtration flask
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements



Ordering Info

Cat No Vendor Part No Funnel CapacityFlask CapacityGround Joint Qty Price Qty UOM
F306-16 953825-0000 300mL1000mL47mm In Stock 1 $658.00 CS
F306-59 953755-0000 300mL1000mL47mm In Stock 1 $277.62 CS
F306-17 953835-0000 500mL2000mL47mm In Stock 1 $850.91 CS
F306-18 953845-0000 1000mL4000mL47mm In Stock 1 $929.46 CS
F306-26 953825-0090 1000mL1000mL90mm In Stock 1 $1,492.20 CS
F306-27 953835-0090 1000mL2000mL90mm In Stock 1 $1,585.33 CS
F306-28 953845-0090 1000mL4000mL90mm In Stock 1 $1,639.63 CS

Options

Cat No Description Qty/UOM Price Qty UOM
F306-19 Fritted Glass Support Base for Microfiltration Assembly, 47mm, 40/35 outer joint In Stock 1 $369.78 CS
F306-20 Fritted Glass Support Base for Microfiltration Assembly, 90mm, 40/35 outer joint In Stock 1 $948.42 CS
F306-23 Flask for Microfiltration Assembly, 1000mL, 40/35 inner joint In Stock 1 $212.26 CS
F306-24 Flask for Microfiltration Assembly, 2000mL, 40/35 inner joint In Stock 1 $346.67 CS
F306-25 Flask for Microfiltration Assembly, 4000mL, 40/35 inner joint In Stock 1 $395.81 CS
F338-8 1000mL Funnel Capacity Microfiltration Assembly with Fritted Glass Support In Stock 1 $947.66 CS

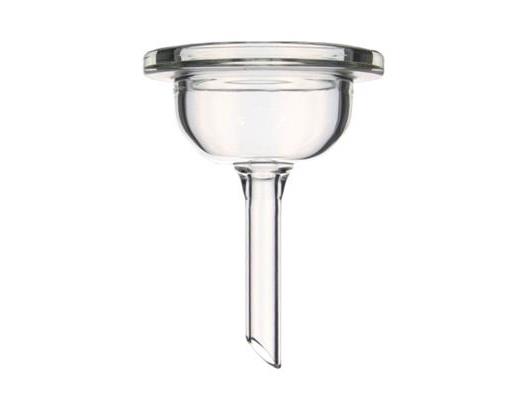

F338-9 90mm Glass Support Base for Microfiltration Assembly In Stock 1 $257.90 CS
