Forma™ 3960 Series Environmental Chambers, Thermo Scientific
You have not viewed any products recently.
View Larger

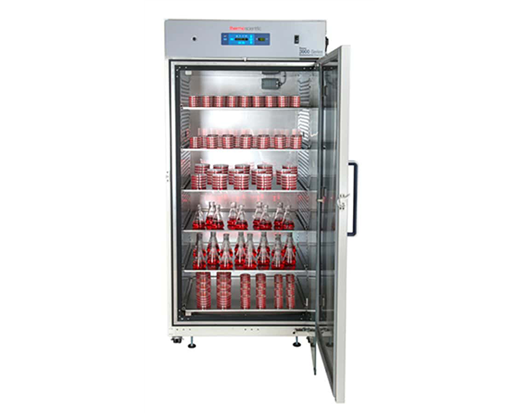

Forma™ 3960 Series Environmental Chambers, Thermo Scientific
Perform many clinical applications, including elevated temperature stability and shelf-life testing with Thermo Scientific™ Forma™ 3960 Series chambers. These chambers feature a horizontal laminar airflow system, stainless-steel interior and microprocessor controls for a high-performance, high-capacity unit.
Features:
- True laminar airflow through side plenums for extremely tight temperature uniformity
- Sophisticated microprocessor controls for constant display of temperature
- Alphanumeric message center for ease of setup and programming
- Access ports, locking casters and alarm contacts
- Capacity: 29 cu.ft. (821.2L) for high volumes and a broad range of products
- Operating temperature range: 5°C above ambient to 60°C (140°F)
Airflow System:
- Directed airflow system promotes an ideal growth environment
- Positive pressure feed plenum and negative pressure return plenum direct air across surface of each solid shelf
- Feed plenum cannot be blocked by chamber contents
Intuitive, Powerful Enviro-Scan™ Control:
- Unit offers precise control without complicated programming
- Operating modes include Run, Setpoint, Calibration and System Configuration
- Easy-to-read display offers convenient, continuous monitoring
- Audible/visual under- and over-temperature alarms offer peace of mind
- Data outputs allow connection to in-house monitor/alarm system to track chamber conditions
Durable Construction:
- Exterior cabinet: 18-gauge. cold-rolled steel, powder coated for durability; resists scratches and chipping
- Heated glass door for minimal condensation and a clear view
- 2″ (5.1cm) thick fiberglass cabinet insulation for maximum product thermal protection
- Solid, stainless-steel interior for long life and minimized equipment costs
- Five heavy-duty, solid stainless-steel shelves, adjustable on 2″ (5.1cm) centers
- Swivel locking casters for easy mobility
- Leveling feet provide stability and added safety
- Thru-wall access ports on right and left chamber sides for probes, sensors, etc.
- Interior GFCI duplex receptacle on 115V Model (single European 230V CEE 7 on 230V Model) for shakers, cell rollers, and other equipment
- Exterior receptacle on upper-right side of control panel for connecting optional recorder or other equipment
| Catalog No |
J146-23 |
J146-24 |
| Voltage 115V |
115V |
230V |
| Hertz |
50/60Hz |
| Door Style |
Heated, triple pane, tempered glass exterior |
| Exterior H x L x W (Metric) |
80 x 33 x 38 inch (203.2 x 83.8 x 78.7 cm) |
| Interior H x L x W (Metric) |
60 x 31 x 27 inch (152.4 x 78.7 x 68.8 cm) |
| Chamber Material |
Type 304, 2B finish, stainless steel |
| Cabinet Material |
Cold-rolled steel, powder coated |
| Amperage |
9A |
5A |
| Wattage |
150W |
| Net Weight (Metric) |
500 lb. (226.8kg) |
| Shipping Weight (Metric) |
660 lb. (299.4kg) |
| Shelves |
5 supplied, 26 max. |
| Shelf Capacity (Metric) |
30 lb. (13.6kg) |
| Temperature Range (Metric) |
5°C above ambient to 60°C |
| Temperature Control |
Enviro-Scan Microprocessor |
| Temperature Sensitivity |
±0.1°C |
| Temperature Uniformity |
±0.4° at 30°C (86°F); ±0.3° at 37°C (98.6°F); ±0.5° at 45°C (113°F) |
| Temperature Sensor |
Precision thermistor (over temperature and control); independent thermostat (over temperature safety) |
| Ports |
Two 2.4 inch (6.1cm) I.D., one on each side |
| Insulation |
2 inch (5.1cm) fiberglass |
| Certifications/Compliance |
UL listed, CE marked |
