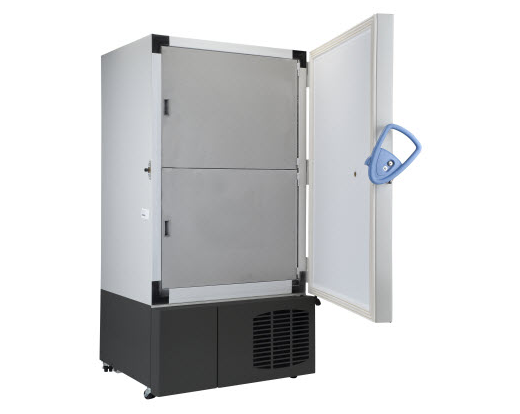

  • Ultralow Freezer door open

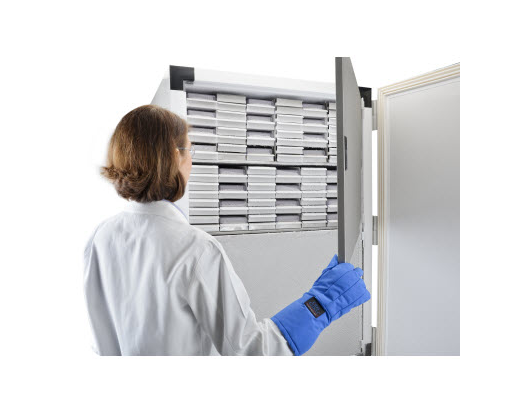

  • Ultralow Freezer innerdoor open
  • Ultralow Freezer closed

  • alt view name
  • alt view name
  • alt view name

Freezer, TSX Series, Ultra-low Temperature, -80°C, Thermo Scientific

This Thermo Scientific Ultra-low Freezer features V-drive technology, the TSX Series Ultra-Low Freezer provides temperature uniformity that adapts to your environment, protecting samples and offering significant energy savings. While conventional ultra-low freezers use single speed compressors that continually cycle on and off, the V-drive runs at variable speeds, adjusting cooling performance to the conditions inside and outside the freezer. When conditions are stable, the V-drive runs at a low speed, reducing energy consumption while maintaining a stable temperature for sample protection. When there are frequent door openings, or samples are added to the freezer, the system detects the activity and increases the drive speed.

GSA

  • Choice of standard mode (8.7kW-hour/day) or high-performance mode (10.2kW-hour/day) offering significant savings over conventional ultra-low freezers
  • Outstanding door-opening recovery time (24 minutes)
  • Peak variation from -80°C set-point: +6.9/+1.8 (standard mode), +4.4/-0.4 (high-performance mode)
  • Warm-up time (from -80°C to -50°C) in 303 minutes
  • Natural refrigerants for lower environmental impact and higher cooling efficiency
  • Water-blown foam insulation, eliminating chemical emissions and reducing the out-gassing common in other foam products
  • Whisper-quiet operation allowing the freezer to be used directly inside the lab
  • 600 box capacity interior design, allowing the storage of up to 60,000 2mL tubes or 101,400 1mL tubes inside a single freezer
  • Intuitive touch-screen user interface featuring alarm status, door-opening status, temperature status, environmental conditions and back-up system status
 Industry Leading Parts and Labor Warranty: 5 years; Industry Leading Compressor Warranty: 10 years
(orders after July 1, 2023)
  R209-1
Capacity (metric) 28.8 cu. ft. (815L)
Capacity Shelf (metric) 125 lb. (56.8kg)
Capacity per Freezer (2mL Vial) 60,000
Holds 600 2-inch boxes
Weight (Metric) 854 lb. (388kg)
Footprint (metric) 11.38 sq. ft. (1.06 sq.meters)
Display Touch Screen LCD
Voltage Compensation Buck/Boost
Electrical Requirements 208-230V 50/60Hz
Power 12/15 Amperage / 208-230V
Energy Usage 8.7kWH/day (standard), 10.2kWH/day (high-performance)
Plug Type NEMA 6-15
Shelves 3
Temperature Range (metric) -50° to -80°C
Door Opening Recovery 24 minutes
Health Monitoring On Screen, Log File
Inner Doors 2
Operating Modes Standard or High-Performance
On-Board Datalogging Standard
Peak Variation at -80C +4.7/-3 (high-performance), +6.9/-1.8 (standard)
Smart View Compatibility Smart-Vue Compatible
Setpoint Security Standard - Individual user names
Backup Systems CO2 or LN2 (Optional)
Access Security KeyLock Standard, Padlock Compatible
Chart Recorder 7-day Ink or Inkless (Optional)
Certifications/Compliance CE
Water Cooled Optional
Product Type Upright ULT
GSA Link

Options

Cat No Vendor Part No Description Qty/UOM Price Qty UOM
R208-39 920090 Rack, Sliding Drawer 2" box, 25 boxes/rack In Stock 1 $299.00 EA
R208-40 1950520 Rack, Side Access 2" box, 25 boxes/rack In Stock 1 $318.00 EA
R208-41 920091 Rack, Sliding Drawer 3" box, 15 boxes/rack In Stock 1 $299.00 EA
R208-42 1950521 Rack, Side Access 3" box, 15 boxes/rack In Stock 1 $318.00 EA
R208-43 RSK600SD4 Rack Kit: 6-sliding drawer racks, 2" boxes, 100 cell dividers In Stock 1 $1,800.00 EA
R208-44 1950642 Rack, Sliding Drawer Microplate In Stock 1 $318.00 EA
R208-45 1950523 Rack, Side Access Microplate, 105 plates In Stock 1 $382.00 EA
R208-46 1950592 Rack, Side Access Microplate- standard/deepwell In Stock 1 $288.00 EA
R208-69 5IDTSX Five-shelf option, factory-installed In Stock 1 $1.40 EA
