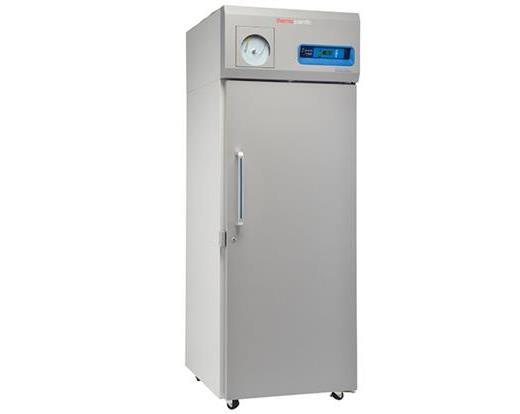

Freezers, TSX Series, High Performance Plasma Freezer, Thermo Scientific
Thermo Scientific™ TSX Series high-performance plasma freezers are designed with features that support sample protection and sustainability objectives for the storage of plasma. The Series’ V-drive technology is designed to provide temperature uniformity that continually adapts to user patterns, offering significant energy savings without compromising protection.
- Designed to meet the strict requirements established by the AABB and FDA for the storage of plasma
- Stores up to 532 plasma boxes (250mL boxes)
- Stores of 1,064 plasma boxes int the 51.1 cu. ft. freezer (250mL boxes)
- Whisper quiet with a sound level of 52 dBA, enabling end users to work alongside the refrigerator without distraction
- Unique V-drive technology is designed to detect usage patterns such as door openings when a higher compressor speed is needed and periods of stability where the compressor runs at a lower speed, saving energy without compromising protection
- Up to 50% less energy usage than conventional refrigerant models
- Natural, R290 refrigerant and water-blown foam make the TSX Series compliant with the U.S. Environmental Protection Agency’s Significant New Alternatives Policy (SNAP)
- Manufactured in an award-winning, zero-waste to landfill facility
- Temperature range of -35° to -15°C, factory setpoint at -30°C

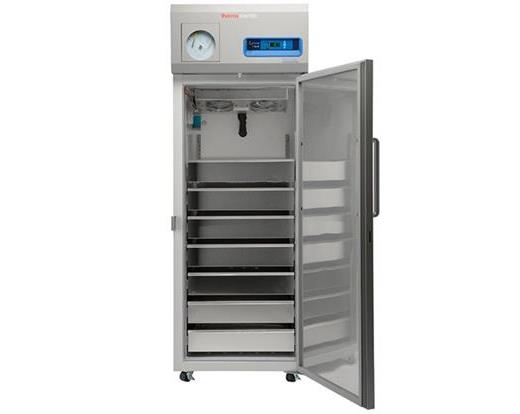

- Convenient, fully extendable and adjustable stainless steel drawers
- Lower HVAC costs as a result of less heat emission into the environment
- Easy to use microprocessor control with interior light, setpoint security and alarms
- Compatible with wireless monitoring systems and remote alarm contacts
- Standard door locks provide comfort and assurance
- Ergonomic door handle
- Standard factory-installed chart recorder
- Warranty varies by country, please contact us for details
Industry Leading Parts and Labor Warranty: 5 years; Industry Leading Compressor Warranty: 10 years
(orders after July 1, 2023) |
| |
R203-172 |
R203-173 |
R208-65 |
R208-66 |
R203-174 |
R203-175 |
R208-29 |
R208-30 |
| Capacity |
11.5cu.ft. / 326L |
23cu.ft. / 650L |
29.2cu.ft. / 827L |
51.1 cu.ft. (1447L) |
| Chart Recorder |
Optional |
Standard |
Optional |
Standard |
| Exterior Dimensions (LxWxH) |
31.1 x 24 x 73 inch
(79 x 61.9 x 185.4cm) |
37 x 28 x 78.6 inch
(94 x 71.1 x 199.6cm) |
37.9 x 34 x 78.5 inch
(96.2x86.4x199.4cm) |
37.8 x 56.5 x 78.5 inch
(96x143.5x199.4cm) |
| Interior Dimensions (DxWxH) |
21.8 x 20 x 52.4 inch
(55.4x50.8x133.1cm) |
28.5 x 24 x 58 inch
(72.3x61x147.3cm) |
28.5 x 30 x 58 inch
(72.3x76.2x147.3cm) |
28.5 x 52.5 x 58 inch
(72.4x133.4x147.3cm) |
| Door Style |
Solid |
Double Solid |
| Temperature Range |
-35°C to -15°C |
| Electrical Requirements |
115V, 60Hz, 15A |
208-230V, 50/60Hz, 15A |
115V, 60Hz, 15A |
208-230V, 50/60Hz, 15A |
115V, 60Hz, 15A |
208-230V, 50/60Hz, 15A |
115V, 60Hz, 20A |
208-230V, 50/60Hz, 15A |
| Weight |
358 lb / 162kg |
461 lb / 209kg |
488 lb / 221kg |
731 lb / 332kg |
| Drawers |
7 |
14 |
| Plug Type |
NEMA 5-15 |
NEMA 6-15 |
NEMA 5-15 |
NEMA 6-15 |
NEMA 5-15 |
NEMA 6-15 |
NEMA 5-20 |
NEMA 6-15 |
| Certification,Compliance |
UL, cUL, FDA, Energy Star |
| Smart View Compatible |
Yes |
| Display |
Microprocessor |
| Refrigerant |
R290 |
| Defrost |
Automatic |
