Funnel, Separatory, Squibb, Pear-Shaped, Plastic Stopper, with PTFE Stopcock, Kimble | DWK Life Sciences
KIMAX funnel is supplied with a closed-bottom linear, high-density polyethylene stopper to fit in the ST ground neck, and a PTFE stopcock. Lower stems have an I.D. large enough that a column of liquid will "break" with the stopcock closed, thereby giving a more complete separation and eliminating the necessity of emptying the funnel. Designed from ASTM Specification E1096, Type 4 requirements.
- KIMAX® funnel is supplied with a PTFE stopcock plug and with a closed-bottom, linear high-density polyethylene stopper to fit in the Standard Taper ground neck
- Lower stems have an ID large enough that a column of liquid will “break” with the stopcock closed, thereby giving a more complete separation and eliminating the necessity of emptying the funnel
- Replacement PTFE stopcock plug available (see Options below)
- Replacement stopper available (see Options below)
- Designed from ASTM Specification E1096, Type IV requirements
- Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Options
| Cat No |
Vendor Part No |
Description |
Qty/UOM |
Price |
Qty |
UOM |
| F834-13 |
28160R-13 |

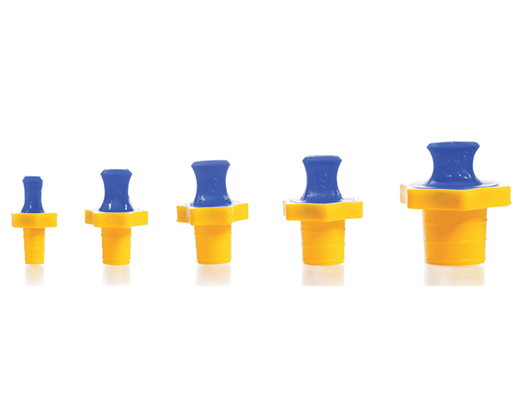

Linear High-Density Polyethylene Stopper, Size 13 |
In Stock |
6 |
$29.88 |
|
CS |
| F834-22 |
28160R-22 |
Linear High-Density Polyethylene Stopper, Size 22 |
In Stock |
6 |
$49.45 |
|
CS |
| F834-27 |
28160R-27 |
Linear High-Density Polyethylene Stopper, Size 27 |
In Stock |
6 |
$49.45 |
|
CS |
| F833-250F |
29048G-250 |
250mL KIMAX® Squibb Separatory Funnels Only, 75mm Max OD |
In Stock |
1 |
Inquire |
|
EA |
| F833-2LF |
29048G-2000 |
2000mL KIMAX® Squibb Separatory Funnels Only, 150mm Max OD |
In Stock |
1 |
$307.53 |
|
CS |
| S606-4 |
821001-0002 |
2mm PTFE Plug-Style Stopcock, 11/25 Plug Size (mm), Nut Washer Size 1, O-ring size 109 |
In Stock |
1 |
$25.00 |
|
CS |
| S606-5 |
821001-0004 |
4mm PTFE Plug-Style Stopcock, 15.2/30 Plug Size(mm), Nut Washer Size 2, O-ring size 5-613 |
In Stock |
1 |
$28.74 |
|
CS |
| S606-6 |
821001-0006 |
6mm PTFE Plug-Style Stopcock, 16/35 Plug Size (mm), Nut Washer Size 2, O-ring size 111 |
In Stock |
1 |
$42.14 |
|
CS |
