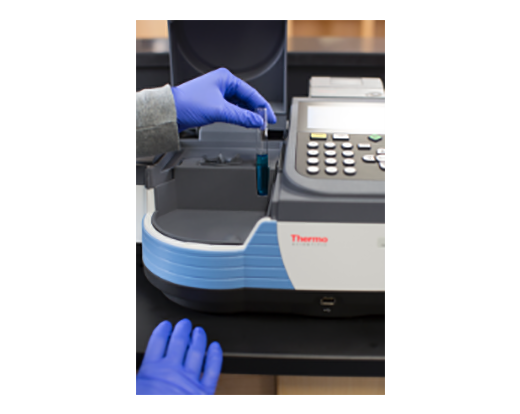

  • Genesys30 Spectrophotometer in use
  • Genesys30 Spectrophotometers

  • alt view name
  • alt view name
  • alt view name

GENESYS 30 Visible Spectrophotometer, Thermo Fisher

The Thermo Scientific™ GENESYS™ 30 is the most thoughtfully designed spectrophotometer available today and meets modern expectations for students, educators and lab technicians. It blends the simplicity to appeal to novice students with the capabilities that labs need for accurate quantitative analysis.

Why GENESYS 30?
  • Better design for usability
    • Large removable and washable sample compartment
    • Big, high resolution color screen that’s easy to read
    • Familiar keypad controls for easy routine use
  • 6-point quant offers higher data confidence
  • Scanning available with onboard software
  • Backed by a 2-year warranty and skilled technical support
    • Quality and dependability from a global leader
  • Data any way you want it
    • USB data export
    • Excellent snap-on thermal printer

Live Display and Concentration Mode
Replicate the familiar display of absorbance or transmittance, and single standard concentration measurements of prior generation instruments in the GENESYS 30 Live Display mode. All your parameters are set and kept in view on a single screen as the calculated concentration updates every two seconds.

Fixed Mode
Apply a factor to an absorbance measurement at one wavelength, or measure at two wavelengths with two factors and perform addition, subtraction or division of the values. Display results for up ten samples then print, save or clear your data before going on to the next sample series.

Go negative!
Some methods call for blanking the instrument on a dark standard and reading absorbance in the negative range. Most single beam instruments cannot measure below -0.3A. GENESYS 30 uses advanced signal processing to deliver stable, reliable results down to -3A.

Quantitative Analysis with up to Six Standards
Go beyond the basic spectrophotometer by recording and storing up to six standards to calibrate your method. Choose a linear fit with an intercept or forced through zero. Name and save your method on the instrument or back it up to a USB memory device. All data are recorded with an index number (S1 – S10) and a time stamp. The result table accommodates up to ten samples for you to print or save before going on to the next sample series or analysis.

PROMO pricing valid on purchases made through December 31, 2024

GSA

  • Entirely new industrial design for better usability
  • High definition 5-inch color screen with rubberized push-button keypad for easy navigation
  • Single cell measurement with removable, washable sample compartment liner
  • Cell holders for standard cell types including test-tubes
  • New onboard software UI; Thermo Scientific™ VISIONlite PC software is optional
    • Data any way you want it
    • USB data export in a text format that’s easy to read and process
  • Excellent snap-on thermal printer
  • Three-year warranty and skilled technical support
Baseline Flatness <0.003A  325nm – 1000nm smoothed
Compartments Accessible from top, front or side
Able to accommodate cells up to 100mm pathlength
Available accessory for test-tubes up to 25mm diameter and 150mm height
Removable, washable sample compartment liner with magnetic placement and hold-down
Connections USB-A on front face supports flash memory devices for method and data storage
USB-B on side supports connection to a Windows™ computer running optional remote control software.
Description GENESYS 30 Visible Spectrophotometer
Detector Type Silicon Photodiode
Dimensions (L x W x H) 35.5cm x 38.5cm x 19.5cm
Display 5" diagonal, 32 bit color display, 800 x 480 pixels
Drift <0.002A/Hr
At 500nm after 2hr warmup. Typical <0.004A/hr after 1hr warmup
Electrical Requirements External AC to DC converter. Voltage and Hz selected automatically, 100-250 volts, 50-60Hz
Keypad Tactile rubber 23 keys with numeric keypad
Lamp 1000 Hrs typical service life
Languages English, Spanish, German, French, Italian, Portuguese, Russian,Chinese, Japanese, Korean, Thai, Arabic
Noise ≤0.001A at 0A
≤0.001A at 1A
≤0.002A at 2A
RMS at 500nm. 60 consecutive measurements
Optical Design Single beam
Photometric Accuracy Instrument ±0.002A (0 - 0.3A)
0.5% of ABS reading (0.301A - 2.5A)
Photometric Display -3A to 3A, 0 to 200 000 %T, 0 to 9 999 999 C
Photometric Range -3A to 3A
Photometric Repeatability ± 0.002A
Measured at 1.0 A @546nm
Printer Thermal printer accessory with 80mm width paper
Spectral Bandwidth 5nm
Stray Light <0.1%T at 340nm and 400nm
Measured using glass cutoff filters or NaNO2 at 340nm
Wavelength Accuracy ± 2nm
Wavelength Data Interval 1nm
Wavelength Range 325nm – 1100nm
Wavelength Repeatability < ±1nm
Wavelength Scan Speed Automatic – up to 1200nm/min
Weight (Metric) 7.5kg
Warranty 2 years standard with one year extension upon registration of the instrument
GSA Link

Ordering Info

Cat No Vendor Part No Description Qty Price Qty UOM
S284-43 840-277000 GENESYS 30 (G30) Visible Spectrophotometer with USA Power Cable In Stock 1 $3,300.00 EA
S284-43-PROMO 840-277000-2PM24 GENESYS 30 (G30) Visible Spectrophotometer with USA Power Cable In Stock 1 $3,003.00 EA

Options

Cat No Vendor Part No Description Qty/UOM Price Qty UOM
S284-44 840-277500 Test-Tube holder for G30 In Stock 1 $249.00 EA
S284-45 840-277600 Tall Test-Tube Cap covers test-tubes up to 15cm/6 inches tall for G30 In Stock 1 $164.00 EA
S284-46 840-277700 Long Path Rectangular Cell Holder for G30 In Stock 1 $226.00 EA
S284-47 840-277800 5-100mm Path Cylindrical Cell Holder for G30 In Stock 1 $203.00 EA
S284-48 840-278100 Film/Filter Holder for G30 In Stock 1 $330.00 EA
S284-49 840-278200 Accessory Kit For Hose Entry/Exit for G30 In Stock 1 $306.00 EA
S284-58 335917-000 Adjustable Filter Holder no baseplate In Stock 1 $594.00 EA
S284-59 335079-000 Thermostatted Square 10mm Pathlength Cuvette Holder In Stock 1 $585.00 EA
S284-60 840-278000 Snap-on Thermal Printer Accessory for G30 In Stock 1 $658.00 EA
S284-61 840-259800 Self Stick Printer Paper In Stock 1 $122.00 EA
S284-62 840-278300 Standard Printer Paper for G30 In Stock 1 $66.00 EA
S284-63 840-278700 Pre-aligned, pre-assembled replacement Tungsten-Halogen lamp for G30 In Stock 1 $140.00 EA
S284-64 840-278400 Dust Cover for G30 In Stock 1 $43.00 EA
s284-65 840-278500 Replacement Sample Compartment Lid for G30 In Stock 1 $147.00 EA
S284-66 840-278600 10mm Square Cell Holder for G30 In Stock 1 $160.00 EA
S284-97 085-820200 USB Cable: USB-A to USB-B, 10 foot In Stock 1 $29.00 EA
