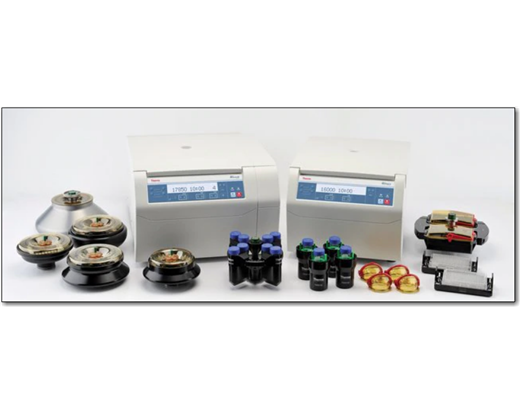

| Small Benchtop Centrifuge |
Megafuge 8 |
Megafuge 8R |
| Max. Speed |
4,500rpm (with TX-150 rotor), 16,000rpm
(with MicroClick 24 x 2 rotor) |
4,500rpm (with TX-150 rotor), 17,850rpm
(with MicroClick 24 x 2 rotor) |
| Capacity |
4 x 145mL (with TX-150 rotor), 6 x 50mL (with HIGHConic III rotor) |
| Refrigerated |
No |
Yes |
| Max. RCF |
3,260 x g (with TX-150 rotor), 24,328 x g
(with MicroClick 24 x 2 rotor) |
3,260 x g (with TX-150 rotor), 30,279 x g
(with MicroClick 24 x 2 rotor) |
| Electrical Requirements |
120V 60Hz; 230V 50/60Hz |
120V 60Hz; 230V 50/60Hz |
| Programmability |
4 protocols via direct access key,
with naming option and password protection available |
3 direct program buttons, plus 96 additional programs accessible via folder, all with alphanumeric program naming |
| Tempearature Range |
N/A |
-10° to 40°C |
| Profile |
(Acceleration/Braking) 2 (standard and soft) |
2 (standard and soft) |
| Control |
Microprocessor |
| Dimensions (LxWxH) Exterior |
18.9 x 14.6 x 12.2 inch (48 x 37 x 31cm) |
26.4 x 18.1 x 12.6 inch (67 x 46 x 32cm) |
| Height Open Cover |
26.8 inch (67cm) |
27.5 inch (70cm) |
| Noise Level |
<58 dBA (with TX-150 rotor); <61 dBA (with MicroClick 24 x 2 rotor) |
| Safety Features |
Auto-Lock rotor exchange system, SMARTSpin imbalance detection system,
certified ClickSeal biocontainment lids |
| Timer |
99 hr 59 min, continuous |
| Wattage |
310W |
750W |
| Certifications/Compliance |
IEC 61010-1, IEC 61010-2-020, IEC 61010-2-101, EN 61326-1; UL Listed / CE marked / IVD compliant / Biocontainment certified by the Public Health England, Porton Down, UK |
| Drive |
Direct, brushless induction |
