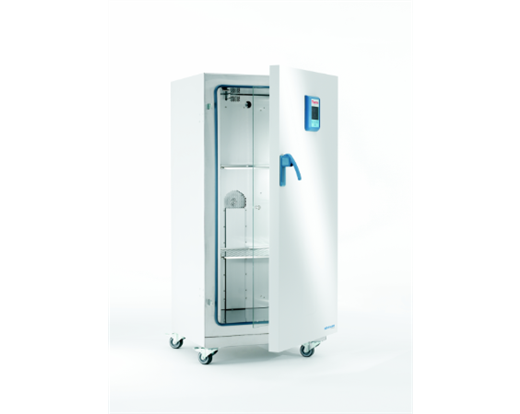

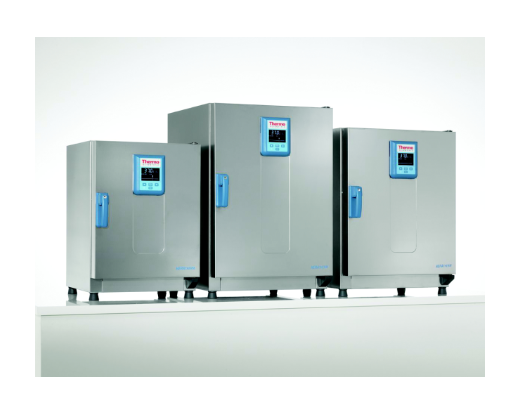

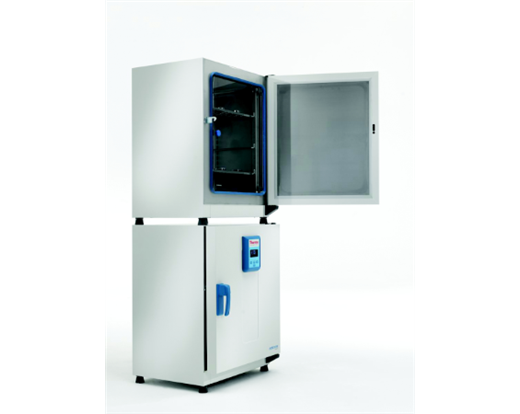

Heratherm™ General Protocol, Gravity Convection, Microbiological Incubators, Thermo Scientific
Perform a range of general applications with Thermo Scientific™ Heratherm™ General Protocol Microbiological Incubators. The Heratherm General Protocol Incubator line is designed with sample safety in mind, for applications in pharmaceutical, medical, food and research laboratories.
Key Features:
- Gravity convection provides gentle air flow and minimal drying out
- Corrosion-resistant stainless-steel chamber (AISI 430)
- Intuitive user interface for setting temperature
- Large, easy to read vacuum fluorescent display
- Exceptionally small footprint Temperature
- Certifications/Compliance: 120V - cCSAus; 230V - CE marked
Security:
- Temperature range from ambient 5° to 75°C
- Temperature uniformity of ±0.6°C (measured at 37°C)
- Temperature stability of ±0.2°C (measured at 37 °C)
- Internal glass door allows sample viewing without impacting temperature
| Catalog No |
J207-12 |
J207-13 |
J207-14 |
J207-38 |
J207-39 |
J207-52 |
J207-30 |
J207-31 |
J207-32 |
| Volume Chamber (Metric) |
2.12 cu.ft.
(60L) |
3.5 cu.ft.
(100L) |
6.4 cu.ft.
(180L) |
2.6 cu.ft.
(75L) |
4 cu.ft.
(117L) |
6.9 cu.ft.
(194L) |
14.13 cu.ft.
(400L) |
14.3 cu.ft.
(405L) |
26.49 cu.ft.
(750L) |
| Voltage / Hertz |
120V / 60Hz |
230V / 50/60Hz |
120V/60Hz |
230V/50/60Hz |
120V/60Hz |
| Height Exterior (Metric) |
28.3 inch
(72cm) |
28.3 inch
(72cm) |
36.2 inch
(92cm) |
28.3 inch
(72cm) |
28.3 inch
(72cm) |
36.2 inch
(92cm) |
60.8 inch
(154.5cm) |
60.8 inch
(154.5cm) |
60.8 inch
(154.5cm) |
| Width Exterior (Metric) |
20.9 inch
(53cm) |
25.2 inch
(64cm) |
25.2 inch
(64cm) |
20.9 inch
(53cm) |
25.2 inch
(64cm) |
25.2 inch
(64cm) |
30.6 inch
(77.8cm) |
30.6 inch
(77.8cm) |
49.7 inch
(126.1cm) |
| Length Exterior (Metric) |
22.2 inch
(56.5cm) |
22.2 inch
(56.5cm) |
29.1 inch
(73.8cm) |
22.2 inch
(56.5cm) |
22.2 inch
(56.5cm) |
29.1 inch
(73.8cm) |
30.3 inch
(77cm) |
30.3 inch
(77cm) |
30.3 inch
(77cm) |
| Height Interior (Metric) |
20 inch
(50.8cm) |
23.9 inch
(60.8cm) |
27.9 inch
(70.8cm) |
20 inch
(50.8cm) |
23.9 inch
(60.8cm) |
27.9 inch
(70.8cm) |
51.5 inch
(130.7cm) |
51.5 inch
(130.7cm) |
51.5 inch
(130.7cm) |
| Width Interior (Metric) |
13.9 inch
(35.4cm) |
18.3 inch
(46.4cm) |
18.3 inch
(46.4cm) |
13.9 inch
(35.4cm) |
18.3 inch
(46.4cm) |
18.3 inch
(46.4cm) |
21.4 inch
(54.4cm) |
21.4 inch
(54.4cm) |
39.5 inch
(100.4cm) |
| Depth Interior (Metric) |
16.3 inch
(41.4cm) |
16.3 inch
(41.4cm) |
23.2 inch
(58.9cm) |
16.3 inch
(41.4cm) |
16.3 inch
(41.4cm) |
23.2 inch
(58.9cm) |
22.4 inch
(56.9cm) |
22.4 inch
(56.9cm) |
22.4 inch
(56.9cm) |
| Weight (Metric) |
88 lb.
(40kg) |
112 lb.
(51kg) |
143 lb.
(65kg) |
88 lb.
(40kg) |
112 lb.
(51kg) |
143 lb.
(65kg) |
320 lb.
(145kg) |
320 lb.
(145kg) |
443 lb.
(201kg) |
| Wattage |
300W |
540W |
720W |
300W |
540W |
710W |
1080W |
1200W |
1500W |
| Amperage |
2.5A |
4.5A |
6A |
1.3A |
2.3A |
3.1A |
9A |
5A |
12.5A |
| Control |
Microprocessor control with vacuum fluorescent display |
| Plug Type |
120V: Nema 5-15 US
230V: Country-specific |
| Temperature Range (Metric) |
Ambient +5° to 75°C |
| Shelves |
2 with/
13 max. |
2 with/
16 max. |
2 with/
19 max. |
2 with/
13 max. |
2 with/
16 max. |
2 with/
19 max. |
2 with/
39 max. |
2 with/
39 max. |
2 with/
39 max. |
