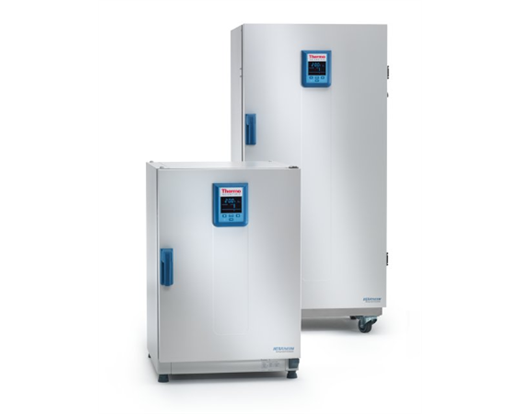

Heratherm™ Refrigerated Incubators, Thermo Scientific
Achieve untapped potential in incubation with the temperature precision you need for applications that demand it
Thermo Scientific™ Heratherm™ refrigerated incubators can help you reach an untapped potential in achieving temperature precision and efficiency– offering a complete package for your refrigerated incubation needs. As with the entire Heratherm family, our equipment is always designed with your samples in mind.
With a temperature range of +5°C to +70°C , Heratherm refrigerated incubators are equipped with Peltier technology to reach the precise temperatures needed to perform your applications and are available in benchtop, and spacious floor models.
Heratherm refrigerated incubators are ideal for applications where results demand precision, including the development process of new products, quality control in the food, beverage and cosmetics industries, water testing, cell culture and microbiological analysis, or any applications with controlled temperature as a process step such as:
- Microbiology, fungi, and yeast studies
- Waste water samples testing
- Vaccine, reagents, antibody storage
- Crystallization
- Cell culture
- Shelf life testing
- Temperature range 5 to 70°C
- Available in 2 sizes: benchtop model 178L / 6.3 cu.ft. and a floor model with casters 381L / 13.5 cu.ft.
- Great temperature uniformity and stability to keep the samples in a safe environment– uniformity as low as ±0.3°C (20°C), stability as low as ±0.1°C
- Energy consumption as low as 80Wh/h (benchtop) / 150Wh/h (floor) at 20°C– Note that comparable compressor cooled units consume up to 6 times this amount
- CFC free / HFC free polyurethane insulation foam for outstanding temperature performance and condensation prevention
- Heated door with intelligent energy control to ensure no condensation– even at low temperatures
- Sophisticated timer function with weekly, daily or real time mode
- Intuitive programmability function for defined temperature ramping, soak/cool and dwell: store up to 10 programs with 10 easy steps
- Adjustable over temperature shut-off for protocols that require setting of over temperature for protection– (class 2 according to norm DIN12880)
- Safe viewing of samples through internal glass door with limited impact on temperature
- Safe containment with automatic over and under temperature alarm
- Standard access port for data monitoring (large diameter of 42mm / 1.65 inch)
- Flexible shelf system for optimal loading, easy to remove for cleaning, with non-tip protection
- Stainless steel interior (1.4301 / ASTM 304) and rounded corners for easy cleaning
| Model |

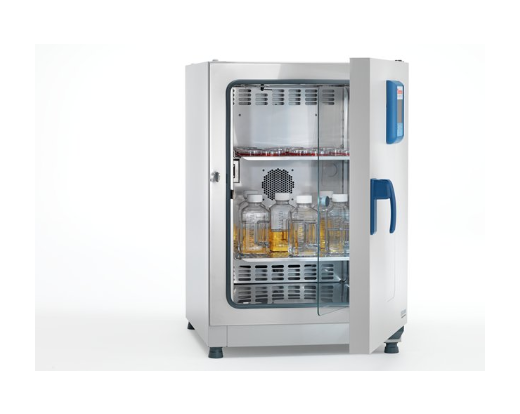

Benchtop |

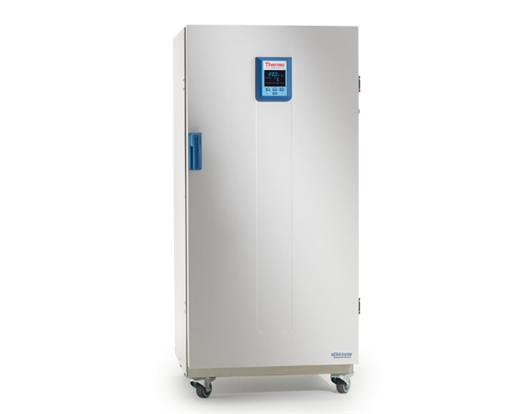

Floor |
| J207-56 |
J207-57 |
J207-58 |
J207-59 |
| Chamber volume |
6.3 cu.ft (178L) |
13.5 cu.ft (381L) |
| Temperature range |
5 to 70°C |
| Temperature deviation over time |
at 20 ≤ ±0.1°C; at 37 ≤ ±0.1°C |
| Spatial temperature deviation |
at 20 ≤ ±0.2°C; at 37 ≤ ±0.5°C |
at 20 ≤ ±0.3°C; at 37 ≤ ±0.7°C |
| External dimensions (W x H x D) |
25.2 x 36.2 x 29.1 inch (640 x 920 x 738mm) |
30.6 x 60.8 x 30.3 inch (778 x 1545 x 770mm) |
| Internal dimensions (W x H x D) |
18.3 x 27.9 x 21.4 inch (464 x 708 x 543mm) |
21.4 x 52.6 x 20.6 inch (544 x 1335 x 524mm) |
| Footprint |
5.1 ft2 (0.47m2) |
6 ft2 (0.56m2) |
| Electrical requirements |
100-240V, 50/60Hz, 1.9-4.5A, 450W |
100V, 60Hz, 5.8A, 700W |
100-240V, 50/60Hz, 3.8-9.0A, 900W |
100V, 60Hz, 9.5A, 1140W |
| Plug type |
Nema 5-15 for US, CEE7/7 for other destinations |
Nema 5-15 for US |
Nema 5-15 for US, CEE7/7 for other destinations |
Nema 5-15 for US |
| Number of shelves: supplied/max |
2 / 9 |
2 / 17 |
| Number of shelf positions |
19 |
39 |
| Shelf size (W x D) |
17.28 x 19.88 inch (439 x 505mm) |
20.79 x 21.06 inch (528 x 498mm) |
| Loading capacity per shelf |
55 lbs (25kg) |
66 lbs (30kg) |
| Loading capacity of unit |
165 lbs (75kg) |
165 lbs (75kg) |
| Weight of unit |
185 lbs (84kg) |
368 lbs (167kg) |
| Shipping weight |
214 lbs (97kg) |
476 lbs (216kg) |
| Peltier modules |
1 unit |
2 units |
| Energy consumption at 20°C |
80 Wh/h |
150 Wh/h |
| Access port diameter |
1.65 inch (42mm) |
| Interior material |
Stainless steel 1.4301/304 |
| Housing material |
Coated sheet metal |
