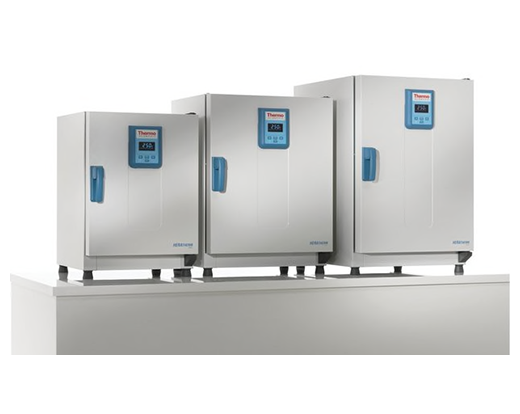

Heratherm™ General Protocol Ovens, Thermo Scientific
Thermo Scientific™ Heratherm General Protocol Ovens are ideally suited for routine applications, with sample safety in mind. The Heratherm General Protocol ovens line is perfect for routine day to day work, providing the ideal heating and drying solution for research, clinical or industrial needs.

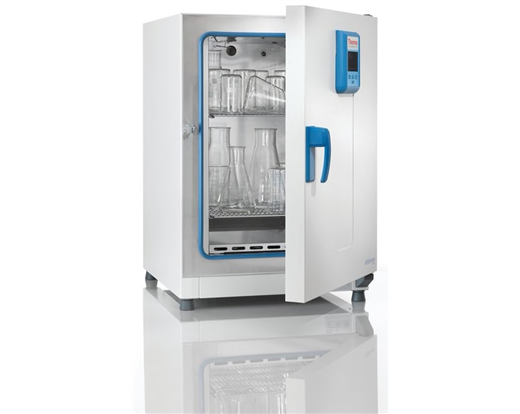

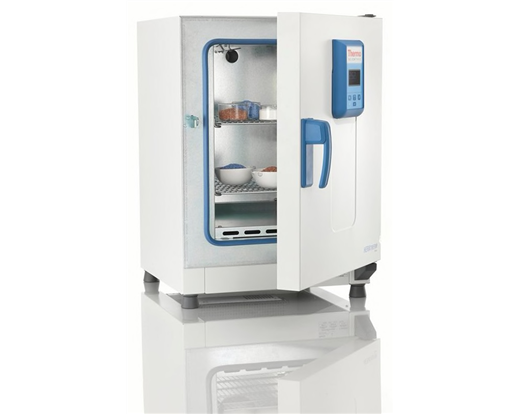

Heratherm General Protocol Ovens provide a choice of gravity convection for gentle drying and heating, or mechanical convection for faster drying and heating, and superior temperature uniformity. Gravity convection units are designed to protect delicate samples while offering temperature uniformity of ±4°C or better, and temperature stability of at least ±0.4°C at 150°C. Mechanical convection models provide temperature uniformity of ±4.0°C or better, and temperature stability of at least ±0.4°C at 150°C.
Promotional pricing valid on purchases October 21 through December 31, 2024
- Three sizes (60, 100, or 180L)
- Operating temperatures from 50° to 250°C
- Automatic over-temperature alarm system to protect samples
- Low overall energy consumption
- Built in timer
- Excellent footprint/volume ratio
- Corrosion-resistant galvanized steel chambers with rounded corners for easy cleaning
- Large, easy to read vacuum fluorescent display
- Easy to use, microprocessor-controlled touch button operation
- Easy to access—doors can be opened to over 180°C
| Controller |
Microprocessor control with vacuum fluorescent display |
| Timer |
ON / OFF |
| Temperature Range |
50° to 250°C (60, 100, 180L) Ambient 10° to 300°C (750L) |
| Max. Shelf Load |
25kg (55 lbs.) (60, 100, 180L)
40kg (88 lbs.) (750L) |
Catalog Number
(Manufacturer No.) |
Chamber Volume |
Footprint |
Temperature Uniformity / Stability at 150°C |
Interior D x W x H |
Exterior L x W x H |
No. of Shelves (Supplied / Max.) |
Rated Voltage; Frequency; Power; Max. Amp |
| Gravity Convection |
N109-1
(51028112) |
65L (2.30 cu. ft.) |
0.3 sq. m (3.2 sq. ft.) |
±4.0°C / ±0.4°C |
415 x 328 x 480mm (16.4 x 12.9 x 18.9 in.) |
565 x 530 x 720mm (22.2 x 20.9 x 28.3 in.) |
2 / 13 |
120V; 60Hz; 1730w; 14.4A |
N109-2
(51028872) |
105L (3.75 cu. ft.) |
0.36 sq. m (3.9 sq. ft.) |
±4.5°C / ±0.4°C |
414 x 438 x 580mm (16.3 x 17.2 x 22.8 in.) |
565 x 640 x 820mm (22.2 x 25.2 x 32.3 in.) |
2 / 16 |
120V; 60Hz; 1680w; 14A |
N109-3
(51028113) |
105L (3.75 cu. ft.) |
0.36 sq. m (3.9 sq. ft.) |
±4.0°C / ±0.4°C |
414 x 438 x 580mm (16.3 x 17.2 x 22.8 in.) |
565 x 640 x 820mm (22.2 x 25.2 x 32.3 in.) |
2 / 16 |
208-240V; 60Hz; 3360w; 14A |
N109-4
(51028874) |
176L (6.20 cu. ft.) |
0.47 sq. m (5.1 sq. ft.) |
±5°C / ±0.4°C |
589 x 438 x 680mm (23.2 x 17.2 x 26.8 in.) |
738 x 640 x 920mm (29.1 x 25.2 x 36.2 in.) |
2 / 19 |
120V; 60Hz; 1680w; 14A |
N109-5
(51028114) |
176L (6.20 cu. ft.) |
0.47 sq. m (5.1 sq. ft.) |
±4.0°C / ±0.4°C |
589 x 438 x 680mm (23.2 x 17.2 x 26.8 in.) |
738 x 640 x 920mm (29.1 x 25.2 x 36.2 in.) |
2 / 19 |
208-240V; 60Hz; 3360w; 14A |
| Mechanical Convection |
N109-6
(51028121) |
66L (2.30 cu. ft.) |
0.3 sq. m (3.2 sq. ft.) |
±3.3°C / ±0.3°C |
368 x 354 x 508mm (14.5 x 13.9 x 20.0 in.) |
565 x 530 x 720mm (22.2 x 20.9 x 28.3 in.) |
2 / 13 |
120V; 60Hz; 1440w; 12A |
N109-7
(51028873) |
104L (3.65 cu. ft.) |
0.36 sq. m (3.9 sq. ft.) |
±3.5°C / ±0.4°C |
368 x 464 x 608mm (14.5 x 18.3 x 23.9 in.) |
565 x 640 x 820mm (22.2 x 25.2 x 32.3 in.) |
2 / 16 |
120V; 60Hz; 1660w; 13.8A |
N109-8
(51028122) |
104L (6.30 cu. ft.) |
0.36 sq. m (3.9 sq. ft.) |
±2.5°C / ±0.3°C |
368 x 464 x 608mm (14.5 x 18.3 x 23.9 in.) |
565 x 640 x 820mm (22.2 x 25.2 x 32.3 in.) |
2 / 16 |
208-240V; 60Hz; 3360w; 14A |
N109-9
(51028875) |
179L (6.30 cu. ft.) |
0.47 sq. m (5.1 sq. ft.) |
±3.5°C / ±0.3°C |
543 x 464 x 708mm (21.4 x 18.3 x 27.9 in.) |
738 x 640 x 920mm (29.1 x 25.2 x 36.2 in.) |
2 / 19 |
120V; 60Hz; 1660w; 13.8A |
N109-10
(51028123) |
179L (6.30 cu. ft.) |
0.47 sq. m (5.1 sq. ft.) |
±3.0°C / ±0.3°C |
543 x 464 x 708mm (21.4 x 18.3 x 27.9 in.) |
738 x 640 x 920mm (29.1 x 25.2 x 36.2 in.) |
2 / 19 |
208-240V; 60Hz; 3360w; 14A |
Ordering Info
| Cat No |
Vendor Part No |
Type | Capacity | Power |
Qty |
Price |
Qty |
UOM |
| N109-1 |
51028112 |
Gravity Convection | 60L | 120V 60Hz |
In Stock |
1 |
$2,790.00 |
|
EA |
| N109-1PROMO |
51028112PM |
Gravity Convection | 60L | 120V 60Hz |
In Stock |
1 |
$1,953.00 |
|
EA |
| N109-2 |
51028872 |
Gravity Convection | 100L | 120V 60Hz |
In Stock |
1 |
$3,220.00 |
|
EA |
| N109-3 |
51028113 |
Gravity Convection | 100L | 208-240VAC 60Hz |
In Stock |
1 |
$3,220.00 |
|
EA |
| N109-4 |
51028874 |
Gravity Convection | 180L | 120V 60Hz |
In Stock |
1 |
$3,870.00 |
|
EA |
| N109-5 |
51028114 |
Gravity Convection | 180L | 208-240VAC 60Hz |
In Stock |
1 |
$3,870.00 |
|
EA |
| N109-38 |
51029328 |
Gravity Convection | 419L | 230V / 50/60Hz |
In Stock |
1 |
$7,120.00 |
|
EA |
| N109-6 |
51028121 |
Mechanical Convection | 60L | 120V 60Hz |
In Stock |
1 |
$3,250.00 |
|
EA |
| N109-7 |
51028873 |
Mechanical Convection | 100L | 120V 60Hz |
In Stock |
1 |
$3,870.00 |
|
EA |
| N109-8 |
51028122 |
Mechanical Convection | 100L | 208-240VAC 60Hz |
In Stock |
1 |
$3,870.00 |
|
EA |
| N109-9 |
51028875 |
Mechanical Convection | 180L | 120V 60Hz |
In Stock |
1 |
$4,510.00 |
|
EA |
| N109-10 |
51028123 |
Mechanical Convection | 180L | 208-240VAC 60Hz |
In Stock |
1 |
$4,510.00 |
|
EA |
