Incubators, Innova® 42, Incubator Shakers, New Brunswick



You have not viewed any products recently.


New Brunswick Innova 42
View Larger
New Brunswick Innova 42
  • Stackable Incubator Shakers
  • Lab Incubator shaker
  • New Brunswick Innova 42

  • alt view name
  • alt view name
  • alt view name

Incubators, Innova® 42, Incubator Shakers, New Brunswick

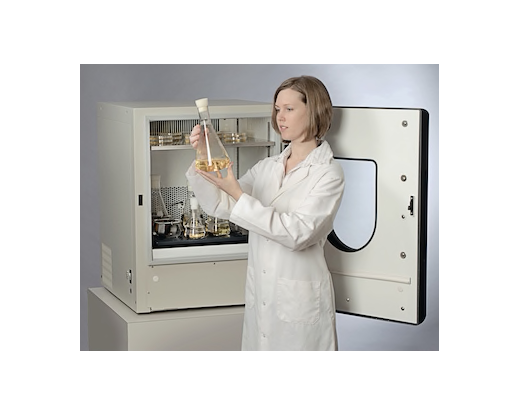

Innova 42/42R Incubator Shakers
The Innova 42 and 42R (refrigerated) shakers are our most versatile incubator shakers in terms of placement and options. They can be stacked up to two units high and can also be placed on or under a standard height laboratory bench. In every scenario, the side opening door/s allow users access right up to the chamber. Options include a static culture drawer, gassing manifold, remote alarm, and humidity monitor and drip pan. Additionally, a photosynthetic light bank and UV germicidal light are available for the 42R.

The cast iron triple-eccentric counterbalanced drive is specifically designed to support high-speed applications and heavy workloads– the design has stood the test of time for over 70 years and continues to enable scientists today. The simple user interface allows for easy programming of speed, temperature, time and when installed, the photosynthetic light bank. The VisioNize box can be added to enhance monitoring and adds notifications functionality. Regular servicing can be carried out in-situ, allowing for minimized downtime.

GSA

  • Continuous, timed or Multi-step programming
  • Programmable Innova controls automatically changes temperature, speed, and optional photosynthetic and UV germicidal lights at timed intervals (Storage up to 4 individual programs with each 15 steps)
  • Large viewing window and internal light provide easy viewing of samples without the need to open the door
  • Integrated sub platforms diverts spills away from drive
  • Built in spill pan catches accidental spills to aid cleaning and protects drive mechanism. Also allows use as a water reservoir to reduce sampe evaporation
  • Platforms (sold separately) accommodates flasks up to 6L (configuration dependant) as well as test tube racks and microplate holders
  • One height adjustable static shelf included. Optional culture drawer sold separately (allowing reduced sample desiccation)
  S171-104 S171-105 S171-107
External depth (with lid/door open) 131cm (51.6 inch)
Timer 0.1 - 99.9h, continuous
Power Supply 120V, 60Hz
Dimensions (W x D x H) 63.5 × 74.5 × 81.8cm (25 × 29.3 × 32.8 inch)
Weight w/o accessories 98.5kg (217 lb) 121kg (267 lb)
Temperature range Ambient +5°C to 80°C 20°C below ambient to 80°C
Audible and visual alarms Yes
Temperature uniformity ±0.25°C at 37°C
Available program modes Constant speed and temperature, Programmable multi-steps, RS-232 communication port
Drive mechanism Triple-eccentric counterbalanced drive
Gassing manifold Yes
Water/Humidity monitoring Yes
In chamber power receptacle Yes
Internal convenience light Yes
Memory Non volatile with automatic power failure restart
Motor Type Solid state, DC brushless motor
Photosynthetic lighting No Yes
Platform Size 46 × 46cm (18 × 18 inch)
Refrigerated No Yes
Speed Range 25 - 400 rpm; 25 - 300 rpm when using flasks >500mL in stacked devices
Multi-step programming Yes
Steps per program 15
Stored programs 4
cETLus and CE marked Yes
Agitation Orbit 1.9cm (0.75 inch) 2.5cm (1 inch)
GSA Link

Ordering Info

Cat No Vendor Part No ModelDescriptionPower Qty Price Qty UOM
S171-104 M1335-0000 Innova 42orbit 1.9cm (0.75 inch)120V / 60Hz In Stock 1 $18,336.36 EA
S171-105 M1335-0004 Innova 42Rorbit 1.9cm (0.75 inch)120V / 60Hz In Stock 1 $20,828.07 EA
S171-107 M1335-0014 Innova 42Rorbit 2.5cm (1 inch)120V / 60Hz In Stock 1 $20,828.07 EA
