Microscopes, Compound Microscope, BioBlue Series
You have not viewed any products recently.
View Larger
Microscopes, Compound Microscope, BioBlue Series
BioBlue Compound Microscopes
Clear and bright images at every magnification. The modern BioBlue compound microscopes are developed for educational purposes with a primary focus on ergonomics and today’s quality standards. These microscopes are supplied with secure eyepieces and adjustable rack stop to prevent damage to sample and objectives.
The DIN WF 10x/18 eyepieces and the semi plan achromatic corrected 45mm DIN objectives of the BioBlue models generate a crisp high-resolution image. When changing magnification, the image remains perfectly in focus and centered. The 130 x 130mm stage with double layered 70 x 28mm X-Y mechanical stage enable a 2µm precision positioning of the specimen.
All microscopes are supplied with power cord, three rechargeable AA batteries, dust cover, a spare fuse, white filter, user manual and 5mL immersion oil for models with S100x objective. All packed in a polystyrene box.
*Item M201-33 microscope bundle includes a CMEX-18 pro digital camera.
- WF 10x/18mm eyepiece(s)
- Binocular and trinocular models
- Model with integrated 7-inch LCD screen
- Integrated X-Y mechanical stage
- Height adjustable Abbe condenser with iris diaphragm and filter holder
- LED models with rechargeable AA batteries and integrated power supply
- Reversed nosepiece for four semi plan objectives
- Coaxial coarse and fine adjustments with rack stop
- Binocular and trinocular models supplied with 1W NeoLED™ illumination for increased light output
- Ergonomic stand
- Provided with APL (Antimicrobial Protection Layer)
- CE certified
- 10-Year warranty
| |
M201-30 |

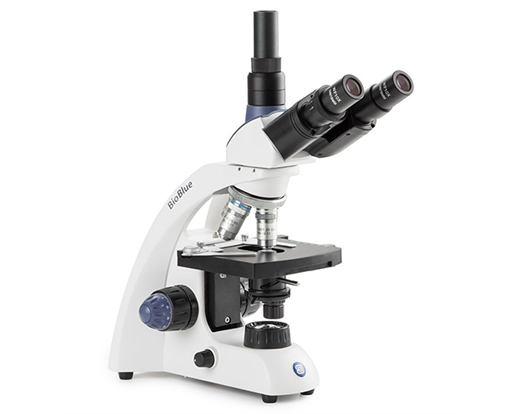

M201-32; M201-33 (w/camera) |

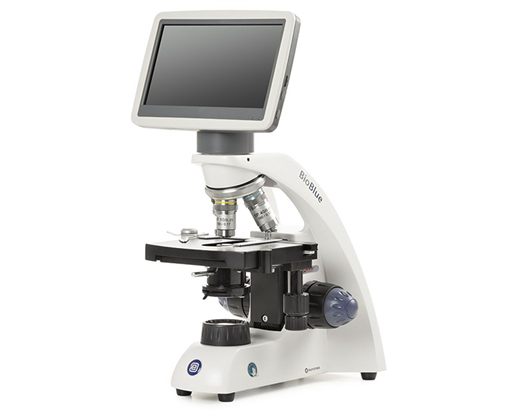

M201-31 |
| Head |
Binocular 30º; 360º rotating; 48-75mm interpupilar; +/- 5mm diopter on left tube |
Trinocular 30º; 360º rotating; 48-75mm interpupilar; +/- 5mm diopter on left tube |
Digital head with LCD 7” LCD screen, 1920x1080 pixels, SD card for images and video |
| Eyepiece |
WF10x/18mm |
None |
| Nosepiece |
Reversed quadruple nosepiece on ball bearings |
| Objective |
Semi Plan 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25, oil immersion objectives |
Semi Plan 4x/0.10, 10x/0.25, S40x/0.65 |
| Stage |
130x130mm; XY 70x28mm |
| Condenser |
Abbe A.N. 1.25 with iris diaphragm |
| Illumination |
1W NeoLED™, rechargeable batteries (cordless) |
1W LED, rechargeable batteries (cordless) |
| LED |
No |
Yes |
| NeoLED |
Yes |
No |
