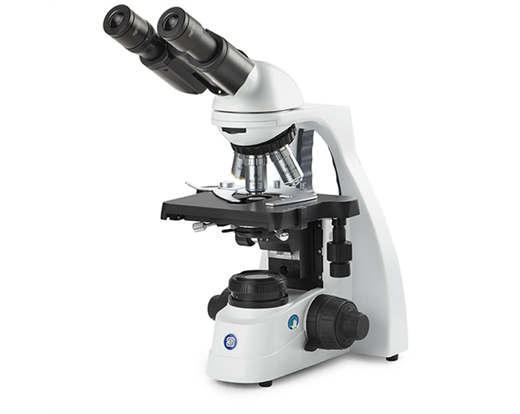

bScope binocular microscope
View Larger
bScope binocular microscope
  • bScope Trinocular microscope with DC18 Camera

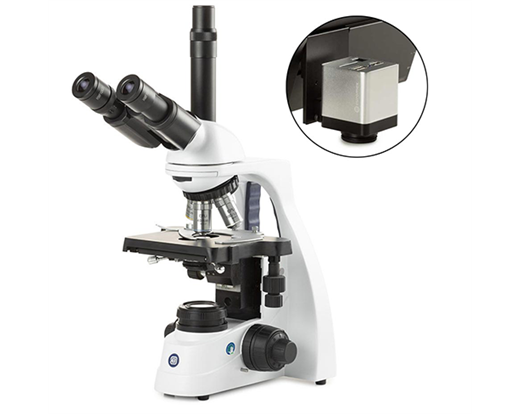

  • bScope Trinocular microscope with mini Camera

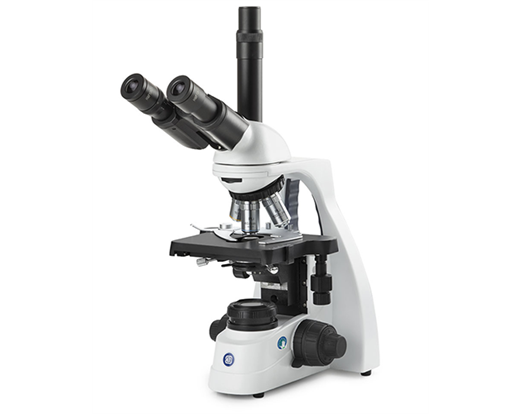

  • bScope trinocular microscopes
  • bScope trinocular microscope for LED, fluorescence
  • bScope binocular microscope

  • alt view name
  • alt view name
  • alt view name
  • alt view name
  • alt view name

Microscopes, Compound Microscope, bScope® Series

bScope® Compound Microscopes
Ergonomic and evolutive, the bScope compound microscope series is extensively used in secondary schools, universities, small and mid-sized laboratories and for veterinary applications. With a compact and ergonomic structure, bScope microscopes include height-adjustable eyepieces and low stage controls that minimize fatigue during long work sessions.

Additional highlights include LED illumination, rackless mechanical stage, cable management system, and cordless functionality for ultimate portability (rechargeable batteries sold separately). The robust and compact size of the bScope series with its cable storage system allows more working space, safe operation and easy storage.


  • Binocular and trinocular models
  • HWF 10x/20mm eyepieces
  • Reversed ball-bearing quadruple or quintuple nosepiece with slot for polarization filter
  • E-Plan IOS, Plan IOS, Plan Phase IOS or Plan Fluarex IOS objectives
  • All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  • Coaxial coarse and fine adjustment with adjustable rack-stop
  • Rackless integrated X-Y mechanical stage
  • 3W NeoLED™ adjustable illumination system
  • Epi-fluorescence illumination and 4 monochromatic LEDs (M201-44/45models)
  • Provided with APL (Antimicrobial Protection Layer)
  • Cable Storage System and anti-theft system
  • Integrated carrying grip
  • CE certified
  • 10-Year warranty
  M201-35*; M201-36 M201-37*; M201-38*;
M201-39*
M201-42; M201-43 M201-44; M201-45
Head Binocular30º Siedentopf; 360º rotating; 48-76mm interpupillary; ±5mm diopter Trinocular 30º Siedentopf; 360º rotating; 48-76mm interpupillary; ±5mm diopter
Eyepiece HWF10x/20mm HWF10x/22mm
Nosepiece Quintuple
Objective Plan IOS 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion objectives *E-plan IOS 4x/0.10, 10x/0.25, S40x/0.65 and S100x/1.25 oil immersion objectives Plan Phase IOS 10x/0.25, 20x/0.40, S40x/0.65 and S100x/1.25 oil immersion objectives Plan Fluarex PLFI 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65 and S100x/0.90
Stage 152/197x131mm; XY 75x36mm; Rackless
Condenser Height adjustable Abbe A.N. 1.25 iris diaphragm Height adjustable Zernike A.N. 1.25 iris diaphragm Height adjustable Abbe A.N. 1.25 iris diaphragm
Illumination 3W NeoLED™ Koehler (Microscope can work with batteries. Batteries not included.)

Ordering Info

Cat No DescriptionHeadEyepieceIllumination Qty Price Qty UOM
M201-35 Binocular Microscope30º, 360º rotating, 48-76mm interpupillaryHWF10x/20mm3W NeoLED Koehler In Stock 1 $1,197.60 EA
M201-36 Binocular Microscope30º, 360º rotating, 48-76mm interpupillaryHWF10x/20mm3W NeoLED Koehler In Stock 1 $1,416.00 EA
M201-37 Trinocular Microscope30º, 360º rotating, 48-76mm interpupillaryHWF10x/20mm3W NeoLED Koehler In Stock 1 $1,240.80 EA
M201-38 Trinocular Microscope w/DC18 Camera30º, 360º rotating, 48-76mm interpupillaryHWF10x/20mm3W NeoLED Koehler In Stock 1 $2,332.80 EA
M201-39 Trinocular Microscope w/Mini Camera30º, 360º rotating, 48-76mm interpupillaryHWF10x/20mm3W NeoLED Koehler In Stock 1 $2,377.20 EA
M201-40 Trinocular Microscope30º, 360º rotating, 48-76mm interpupillaryHWF10x/20mm3W NeoLED Koehler In Stock 1 $1,456.80 EA
M201-41 Trinocular Microscope w/Mini Camera30º, 360º rotating, 48-76mm interpupillaryHWF10x/20mm3W NeoLED Koehler In Stock 1 $2,571.60 EA
M201-42 Trinocular Microscope30º, 360º rotating, 48-76mm interpupillaryHWF10x/20mm3W NeoLED Koehler In Stock 1 $2,349.60 EA
M201-43 Trinocular Microscope w/DC18 Camera30º, 360º rotating, 48-76mm interpupillaryHWF10x/20mm3W NeoLED Koehler In Stock 1 $3,331.20 EA
M201-44 Trinocular Microscope LED30º, 360º rotating, 48-76mm interpupillaryHWF10x/22mm3W NeoLED Koehler In Stock 1 $7,321.20 EA
M201-45 Trinocular Microscope LED w/DC18 Camera30º, 360º rotating, 48-76mm interpupillaryHWF10x/22mm3W NeoLED Koehler In Stock 1 $7,806.00 EA
