Microscopes, Compound Microscope, Trinocular, Delphi-X Observer

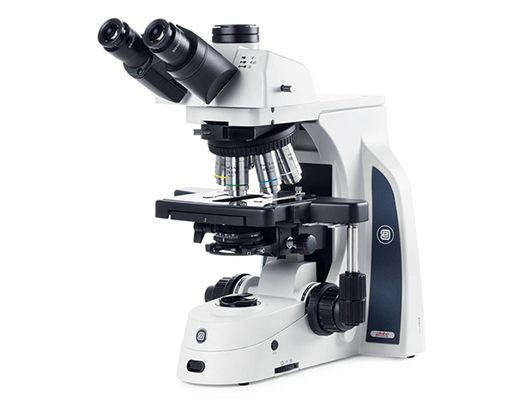

Delphi-X Observer Compound Trinocular Microscopes
The Delphi-X Observer is a state-of-the-art microscope for advanced life science applications. Outstanding optical performance with 25mm field of view and high numerical aperture of the plan 60mm parfocal EIS objectives enable perfect observations, color rendering at high resolving power.
The 200mm focal length tube lens reduces the angle of the light rays passing the optics resulting in a significantly improved chromatic aberration corrections and contrast. The larger diameter objectives enable higher numerical apertures improving the overall resolving power of the optical system.
Delphi-X Observer for anatomopathology, trinocular microscope with SWF 10x/25mm Ø 30mm eyepieces, plan PLi 4/10/20/S40x IOS objectives, EIS 60mm parfocal, 190 x 152mm stage with 78 x 32mm mechanical stage and 3W NeoLED™ illumination.
- Trinocular model
- Sextuple reversed nosepiece with slot for optional DIC prism(s)
- Super wide field SWF 10x/25mm eyepieces, Ø 30mm tubes
- Enhanced infinity corrected EIS optical system
- 60mm parfocal plan EIS objectives
- M25 objective thread mounting
- 3W NeoLED™ illumination
- Differential Interference Contrast (DIC)
- iCare sensor for energy saving
- Integrated carrying grip and tool holder
- CE certified
- 10-year warranty
| |
M201-34 |
| Head |
Trinocular 30º Siedentopf. 47-78mm interpupillary, +/-5mm adjustment on both eyepieces tube. Vertical tuve light path 100/0 - 80/20 - 0/100 |
| Eyepiece |
SWF10x/25mm |
| Nosepiece |
Sextuple |
Objective
(60mm parafocal) |

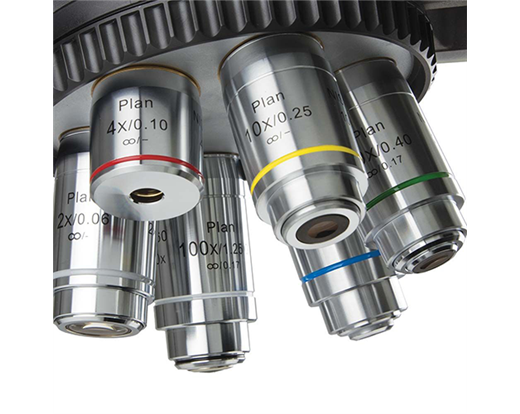

Plan Achromatic 4x/0.10, 10x/0.25, 20x/0.40 and S40x/0.65 oil immersion infinity corrected EIS objectives |
| Stage |
190x152mm. XY 78x32mm. Scratch-resistant Gorilla Glass |
| Condenser |
Height adjustment ABBE swing-out A.N. 0,90/1.25 iris diaphragm and slot for sliders (PH or DF) |
| Illumination |
3W NeoLed™ Koehler and push-in/out neutral density filter |
