Microscopes, Inverted Microscope, Trinocular, Delphi-X Inverso

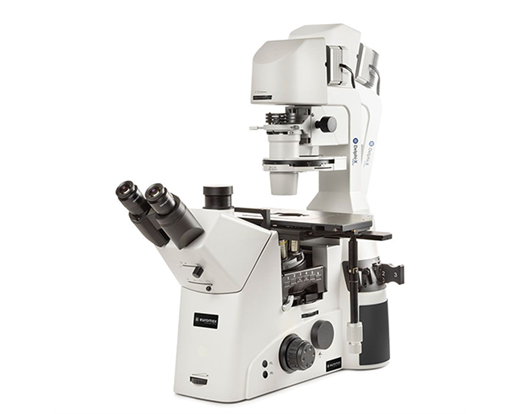

Delphi-X Inverso Inverted Microscopes
Delphi-X Inverso is an inverted microscope for professionals with demanding applications of living cell cultures and stained samples. It is available in two configurations:
- for phase contrast plus DIC (differential interference contrast) equipment
- for fluorescence application
Super contrast semi-apochromatic objectives with collar adjustment ring assure perfect observation of cells or tissues in 1.2mm thick Petri dishes or flasks.
Supplied with metal insert for Ø 38mm cell culture dish and a metal insert for Ø 54mm cell culture dish with 76 x 26mm slides, metal insert for multiwell plates, metal insert for Teraski plates, blue and green interference Ø 38mm filters, power cords, dust cover, green filter and alignment telescope and user manual.
- Observation of tissue cultures, living cells
- Brightfield, phase contrast
- Long working distance IOS plan semi apochromatic objectives
- 5W LED illumination
- Easy placement of large objects
- DIC (differential interference contrast)
- Revolving sextuple nosepiece
- Backwards tilting condenser arm
- CE certified
- 10-year warranty
| |
M201-19 |
| Head |
Trinocular 45º inclined, 47-78mm interpupillary, Diopter adjustment on both eye tubes |
| Eyepiece |
HWF plan 10x/25mm |
| Nosepiece |
Sextuple |
Objective
(60mm parafocal) |
Plan phase Fluarex™ PLPHFi 10x/0.30, 20x/0.45, S40x/0.60 IOS objectives |
| Stage |
340x230mm, XY 185x85mm, Metal insert Ø38mm and Ø54mm, Multiwell plates, Slides plate, Teraski plate |
| Condenser |
Rotating N.A. 0.55 condenser, iris diaphragm and PH rings for 10/20 and 40, Three filter holders, Tilting arm to backwards |
| Illumination |
10W LED |
| Lens Changer |
Extra 1.5x lens changer to increase 1.5 the magnification |
