Molecular Biology, Automated DNA Extraction, Nucleic Acid, IsoPure™
Magnetic Bead-based Purification for Isolating DNA

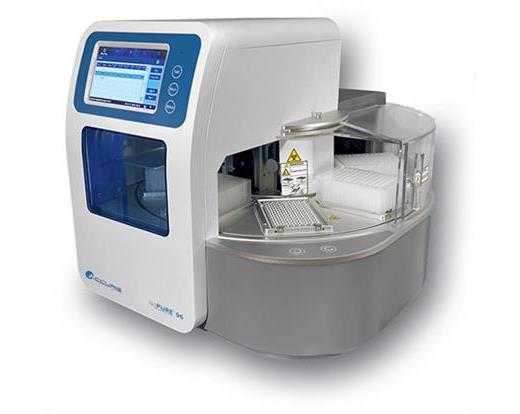

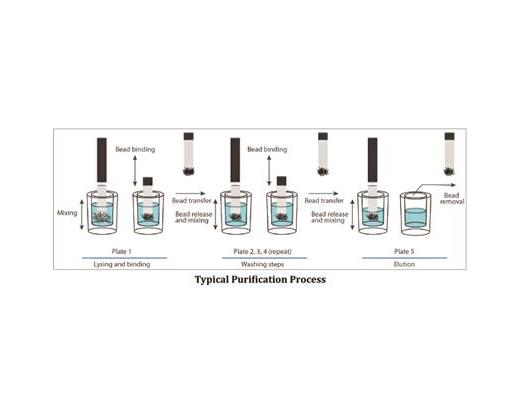

Magnetic bead-based purification has become the preferred method for isolating DNA, RNA, and other target molecules from a variety of biological sample types. The quality and quantity of the extracted molecules can be significantly higher than other methods, such as spin columns, while the cost per sample can be lower. The IsoPure™ models from Accuris Instruments is a compact, automated purification system that improves efficiency and reproducibility using the magnetic bead-based method. Capable of processing up to 96 samples at one time, the instrument is easy to set up, program, and operate. Mixing, magnetic bead transfer, washing, and elution steps are performed automatically, saving valuable hands-on time. The purification process can be completed within 10 to 60 minutes depending on the type of reagent kit used and the complexity of the program.

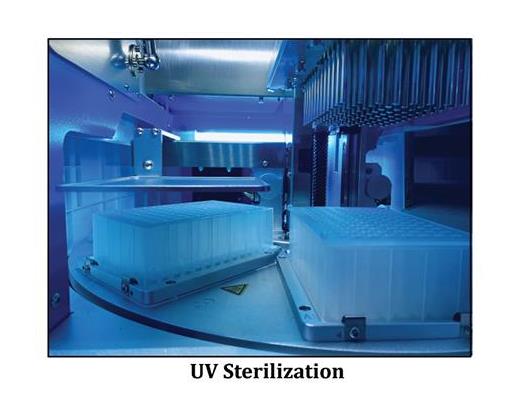

Built-in UV Sterilization
An ultraviolet sterilization lamp (UVC) inside the processing chamber provides effective elimination of most bacterial, viral and stray genomic DNA contaminants. This additional safeguard reduces the possibility of unwanted DNA/RNA contamination of critical samples that could be amplified downstream in a PCR detection assay. UV sterilization time can be adjusted based on specific program requirements to ensure a sterile environment prior to purification.

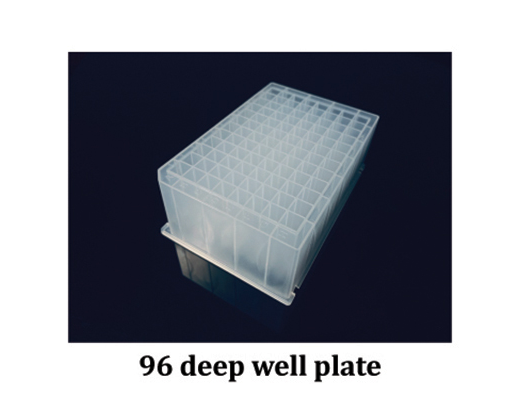

*Includes a FREE starter kit- 1- 96 deep-well plate (E121-62) and 1- 8 place magnetic tip comb (E121-65).
- Fast, reliable, and reproducable results
- Compatible with all popular magnetic bead kits
- Touch screen panel for on-board programming and operation
- Process up to 96 samples in deep-well plates
- 8-position carousel with 2 heating blocks
- Sample volume 50 – 1000µl

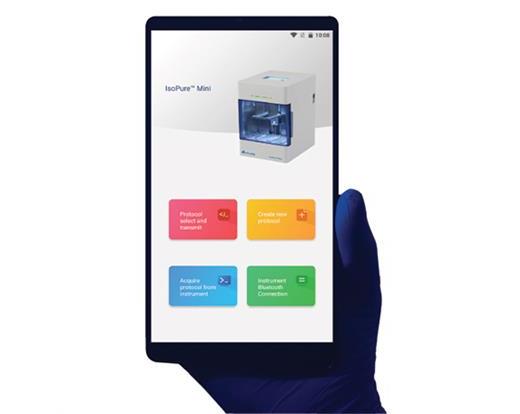

- Programmable with PCR software or Android app (IsoPure Mini)
|
IsoPure Mini |
IsoPure 96 |
Capacity / sample volume |
16 samples / 50 to 1000µL |
96 samples / 50 to 1000µL |
Display |
7.0 inch-color touch screen |
Plate positions |
8 Plate positions |
Lysis temperature range |
Ambient 5 to 120°C |
Elution temperature range |
Ambient 5 to 120°C |
Mixing speed |
Variable, 10 levels |
Programming control |
Bluetooth Android Device or PC (not included) |
Touch screen/mouse or PC connection |
Program memory |
100 programs (internal memory) |
Communication ports |

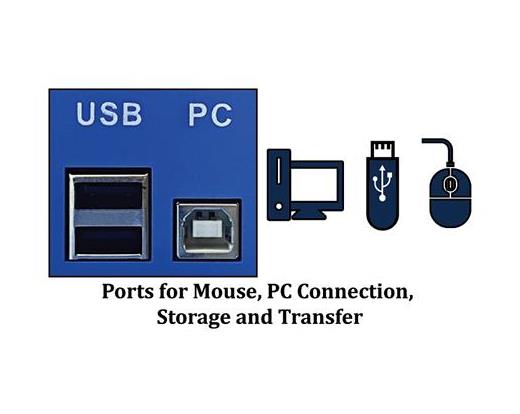

USB for mouse, flash drive storage/transfer |
USB, LAN, & PC |
Magnetic bead recovery rate |
>95% |
Internal lighting |
LED |
Contamination control |
UV lamp (3W, 253.7nm UVC wavelength) |
Scanner |
QR Code Scanner Included |
N/A |
Dimensions |
7.9 x 10.2 x 11.8 inch (20 x 26 x 30cm) |
21.6 x 24.4 x 18.9 inch (55 x 62 x 48cm) |
Weight |
7.0kg / 15.4 lbs |
54kg / 119 lbs |
Electrical input |
Universal 120 to 240VAC |
Warranty |
2 years |
