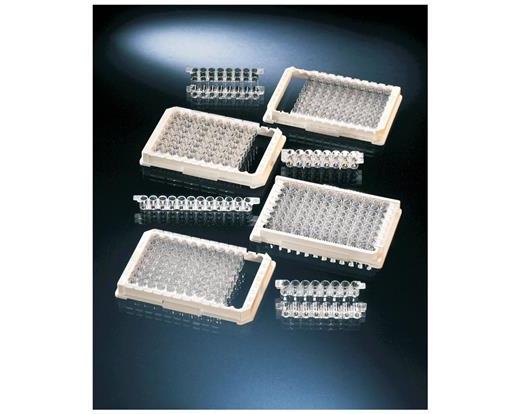

Plates, Multiwell, Immuno Modules, NUNC™
Perform applications which are delivering well-to-well reproducibility with Thermo Scientific™ Immuno Clear Standard Modules, which feature Nunc™, Immulon™ and Microtiter™ module plates developed for ELISA techniques. Manufactured to fit standard equipment, modules provide flexible use of components with small sample sizes. They are backed by industry-leading quality standards and certifications.
- Developed for ELISA techniques
- Hydrophilic MaxiSorp™ surface recommended for use in assays where glycoproteins, such as antibodies are adsorped to the plastic surface
- Hydrophobic PolySorp® surface recommended for adsorption of certain antigens
- A variety of well shapes and configurations are available
- Available in 96-well frames or as individual strips and frames
- Modules assembled in frame are standard 96-well format (86x128mm) to fit standard equipment
- Modules remain in frame when inverted
- Lids, sealing tape and strip caps are available
- Free-standing modules
- High optical quality
- Alphanumeric orientation
- Unifrom reading and washing
- With StarWell™ Modules incubation time can be reduced by more than 50% or the sensitivity similarly increased
- Several strip formats: Eight-well strip, 12-well strip, 16-well strip (two columns of eight wells)
- Several well shapes: flat bottom, C-bottom (radius edge), U-shape wells, StarWells (wells have fins to increase the surface area and enhance performance)
- Several surfaces to maximize assay performance
- Modules that remain in frame when inverted
- Stackable frame marked for lid orientation
- Polystyrene wells in polyethylene frame
- Exterior Dimensions: 128 × 86mm
Nunc-Immuno™ StarWell™ Modules
Polystyrene, 96 wells per frame
| Catalog No |
T465-33* |
| Model No |
441653* |
| Well configuration |
C8 StarWell |
| Surface |
MaxiSorp™ |
| Total Surface Area |
3.0cm2 |
| Total Volume/well |
380µL |
| Working Volume/well |
250µL |
Nunc-Immuno™ Modules 96 wells per frame, Polystyrene
| Catalog No |
T465-17* |
T465-32* |
T465-18 |
T465-19* |
T465-20 |
T465-28* |
T465-29 |
| Model No |
468667* |
434797* |
469078 |
473709* |
473717 |
445101* |
444865 |
| Well configuration |
F8 |
F8 |
F8 |
C12 |
C12 |
C8 |
C8 |
| Surface |
MaxiSorp |
MaxiSorp |
PolySorp |
MaxiSorp |
PolySorp |
MaxiSorp |
PolySorp |
| Total Surface Area/well |
2.7cm2 |
2.7cm2 |
2.7cm2 |
2.5cm2 |
2.5cm2 |
2.5cm2 |
2.5cm2 |
| Total volume/well |
400µL |
400µL |
400µL |
350µL |
350µL |
350µL |
350µL |
| Working Volume/well |
350µL |
350µL |
350µL |
250µL |
250µL |
250µL |
250µL |
Nunc-Immuno™ Modules 96 wells per frame, Polystyrene
| Catalog No |
T465-13* |
T465-14 |
T465-15* |
| Model No |
475078* |
475086* |
467466* |
| Well configuration |
U8 |
U8 |
F16 |
| Surface |
MaxiSorp |
PolySorp |
MaxiSorp |
| Total Surface Area/well |
2.0cm2 |
2.0cm2 |
2.7cm2 |
| Total volume/well |
300µL |
300µL |
400µL |
| Working Volume/well |
250µL |
250µL |
350µL |
Nunc-Immuno Modules, Individual Strips and Frame Polystyrene
| Catalog No |
T465-21* |
T465-23* |
T465-24 |
T465-25* |
T465-26 |
T465-27 |
| Model No |
469264* |
469914* |
469922* |
469949* |
469957 |
460348 |
| Well configuration |
U16 |
F16 |
F16 |
F8 |
F8 |
Frames |
| Surface |
MaxiSorp |
MaxiSorp |
PolySorp |
MaxiSorp |
PolySorp |
-- |
| Total Surface Area/well |
2.0cm2 |
2.7cm2 |
2.7cm2 |
2.7cm2 |
2.7cm2 |
-- |
| Total volume/well |
300µL |
400µL |
400µL |
400µL |
400µL |
-- |
| Working Volume/well |
250µL |
350µL |
350µL |
350µL |
350µL |
-- |
*with certificate F8= flat-bottom, 1x8 well strip; C8=C-bottom, 1x8 well strip; U8=round bottom, 1x8 well strip; C96=C-bottom, 96 well plate, etc...
