Ovens, Forced Air Laboratory Oven
These units have a turbo blower-assisted airflow design and heavy duty motors that offers excellent temperature uniformity and fast temperature recovery. There are several models to choose from in the forced air product line, with varying sizes and control features. The N106-3/3E & N106-7/7E models have a triple wall construction that keeps laboratories and oven surfaces cool. The N106-8E & N106-9E models are large capacity units and perfect for high volume sample and drying applications, including production processes.
Applications include
- Batch Testing
- Aging Tests
- Sterilizing
- Electronic Burn-in
- Conditioning
- Preheating Process
- Components Processing
- Stability Testing
- Glassware Drying
- Asphalt Testing
- Three-inch adjustable exhaust port
- Independent overtemperature safety
- High temperature silicone door seal
- Thermometer and clip supplied
- Stainless steel shelves adjustable on 1⁄2" increments
- No exposed heating elements
- Wrap around insulation for excellent heat retention
- Durable powder coat paint exterior finish
- 24 Month Limited Warranty
| |
N106-2/2E |
N106-5/5E |
N106-6/6E |
N106-3/3E |
N106-7/7E |

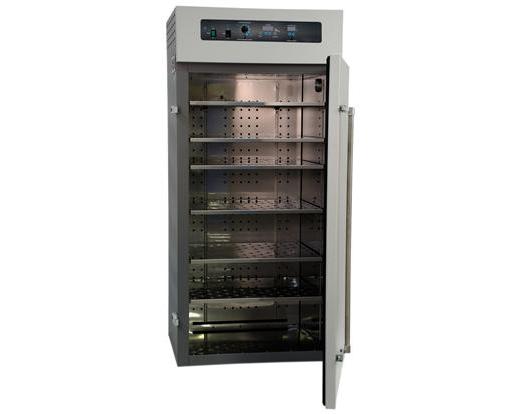

N106-8E |
N106-9E |
| Weight |
60 lbs |
85 lbs |
113 lbs |
83 lbs |
93 lbs |
280 lbs |
390 lbs |
| Heat-up Time |
22 minutes to 100°C |
36 minutes to 150°C |
30 minutes to 150°C |
24 minutes to 150°C |
| Shelving |
2 Supplied |
2 Supplied (8 maximum) |
3 Supplied (8 maximum) |
6 Supplied (16 maximum) |
| Temperature Uniformity |
±3.5°C at 100°C |
±2.0°C at 150°C |
±2.5°C at 150°C |
±3.0°C at 150°C |
±3.5°C at 150°C |
| Temperature Range |
40°C to 200°C |
15°C above ambient to 225°C |
15°C above ambient to 260°C |
| Exterior Dimensions WxDxH inch (WxDxHcm) |
21.8 x 19 x 24 (55.3 x 48.3 x 61.0) |
20.5 x 26 x 31.7 (52.1 x 66.1 x 80.7) |
24 x 36.3 x 38.3 (61 x 92.1 x 97.2) |
26.0 x 27.0 x 35.5 (66.1 x 68.6 x 90.2) |
30.5 x 27.5 x 40.0 (77.5 x 69.9 x 101.6) |
37.8 x 34.0 x 48.0 (95.9 x 86.4 x 122.0) |
37.5 x 35.0 x 78.3 (95.3 x 88.9 x 198.8) |
| Interior Dimensions WxDxH inch (WxDxHcm) |
17 x 10.5 x 16.7 (43.1 x 26.6 x 42.5) |
17.5 x 15.7 x 22 (44.4 x 40 x 55.8) |
20 x 17.5 x 28 (50.8 x 44.4 x 71.1) |
16.5 x 19.2 x 16.5 (41.9 x 48.9 x 41.9) |
21.0 x 19.2 x 21.0 (53.3 x 48.9 x 53.3) |
30.7 x 24.7 x 31.0 (78.1 x 62.8 x 78.7) |
30.7 x 25.0 x 62.0 (78.1 x 63.5 x 157.4) |
| Capacity |
1.7 Cu.Ft. (49L) |
3.5 Cu.Ft. (99L) |
5.6 Cu.Ft. (158L) |
3.0 Cu.Ft. (85L) |
5.0 Cu.Ft. (141L) |
13.7 Cu.Ft. (387L) |
27.5 Cu.Ft. (781L) |
| Maximum Energy Consumption |
115V,660W / 230V,720W |
115V,900W / 230V,840W |
115V / 230V |
115V,1150W / 230V,1955W |
115V,1495W / 230V,2300W |
230V |
230V |
