Pacific™ TII Water Purification System, Barnstead®
View Larger

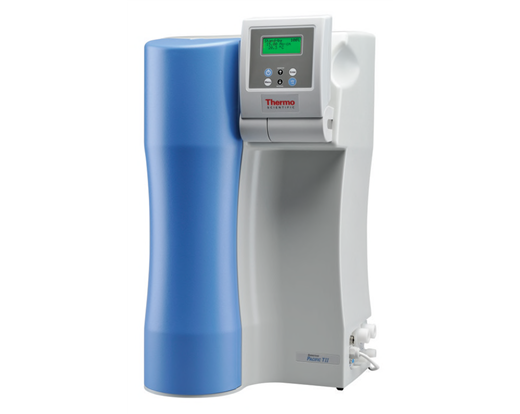

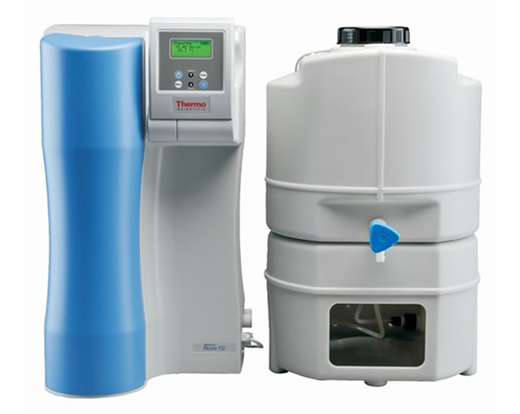

Pacific™ TII Water Purification System, Barnstead®
Thermo Scientific® Barnstead® Pacific™ TII converts tapwater into 15 - 10MΩ.cm high purity water. The Barnstead Pacific TII water purification system converts tap water into high purity water. The ultimate system for the automatic and economical production of Type 2 water, the Pacific TII system supports daily requirements from 20 to 200 liters.
Multiple options for Type 2 water
- Five system options with permeate flows of 3, 7, 12, 20, or 40L/hr
- Future system upgrades accommodate greater capacities to meet growing water demands
- Space-saving design permits bench-top installation or wall mounting with integrated mounting bracket
Operational reliability
- Microprocessor controlled for automatic operation with continuous monitoring of all critical parameters
- Automatic return to “operating” mode ensures recirculation during standstill periods
- Optional UV lamp prevents biological contamination
Easy-to-operate
- Resistivity/conductivity clearly displayed on large back-lit control panel that tilts for optimum viewing
- Status of current operating mode clearly indicating “production”, “stand-by”, “cleaning” modes
- Reservoir fill-level shown as %
- System parameters are code-protected to prevent accidental changes to set points
- Water is dispensed directly from storage tank
GLP-Compliant documentation
- Optional printer connects to RS-232 port for data recording and traceability
- Cell constant of 0.01cm-1 ensures precise conductivity measurements
- Temperature compensation for the conductivity measurement has an accuracy of ±0.1°C (in conformity with USP 645)
Optional Hand Dispenser
- Gain increased flexibility by adding a hand dispenser with 3 meter cord which connects to tank. Use only with a tank equipped with a pressure pump (D607-34, D607-35, D607-36). Ships with a 0.2 micron final filter. (Part #D626-92)
|
Operating pressure, min/max
| 2 to 6 bar |
Conductivity
| 0.067 to 0.1µS/cm |
Resistance at 25°C
| 15 to 10MWxcm |
TOC
| <30ppb |
Bacterial retention
| 99% |
Silica removal
| >99% |
Electrical requirements
| 90-240V/50Hz |
Power consumption
| 0.08kW |
Feedwater connector
| 3/4 inch NPT |
Dimensions (D x W x H)
| 330 x 372 x 613mm |
Weight
| 25kg |
Temperature min./max.
| 2° - 35°C |
