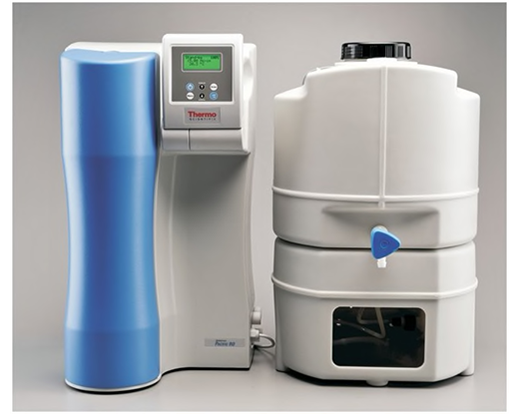

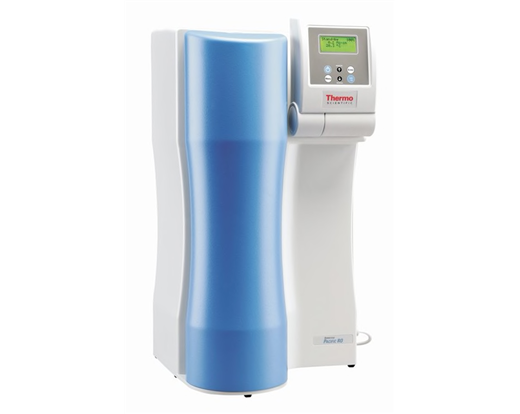

Pacific™ RO Water Purification System, Barnstead®
View Larger
Pacific™ RO Water Purification System, Barnstead®
Thermo Scientific® Barnstead® Pacific™ RO features flexible configurations for your RO water needs. The Barnstead Pacific RO is a modularly designed laboratory reverse osmosis system specifically developed for functional and economical production of high-purity water.
Product Features
- Five system options with permeate flows of 3, 7, 12, or 20, or 40L/hr.
- Space-saving design allows system to sit on the laboratory bench or be mounted on the wall
- Simple system upgrade accommodates future pure water capacity requirements
Reliable operation
- Microprocessor control offers automatic operation with continual monitoring of all important parameters
- Required filling level of the reservoir can be customized
- Automatic return to operating mode ensures recirculation during periods of standstill
Easy-to-operate clear display
- Resistivity/conductivity clearly displayed on large back-lit control panel that tilts for optimum viewing
- Status of current operating mode clearly indicates “production”, “stand-by”, “cleaning” modes
- Reservoir fill-level shown as %
Integrated feed water monitoring
- Good quality feed water is a prerequisite for high purity water and extends cartridge service life
GLP-compliant documentation
- Real-time clock records system errors and faults
- Ongoing data storage collects four weeks information displayed in clear text
- Operating system is code-protected to prevent unauthorized changes to system settings
- RS-232 interface with adjustable sender interval allows for customized timing of data transmission of measured values and faults to a PC or data printer
- Cell constant of 0.16 cm-1 ensures precise conductivity measurements
Pacific RO pretreatment
- Two 10 in. (25.4cm) cartridge filter housings with a 5µm prefilter + activated carbon to prevent entry of particles >5µm and high concentrations of free chlorine—includes hardness stabilizer cartridge which binds calcium and prevents its precipitation.
Worry-free pure water storage
- Reservoir are constructed of pigment-free polyethylene
- Conical bottom allows for easy cleaning, disinfecting and complete emptying
Optional Hand Dispenser
- Gain increased flexibility by adding a hand dispenser with 3 meter cord which connects to tank. Use only with a tank equipped with a pressure pump (D607-34, D607-35, D607-36). Ships with a 0.2 micron final filter. (Part #D626-92)
Specifications |
Operating pressure min./max.
| 1.5 to 6 bar |
Bacterial retention
| 99% |
Electrical requirements
| 230V, 50/60Hz |
Power consumption
| 0.1kW |
Feedwater Connector
| 3/4 inch NPT |
Dimensions (D x W x H)
| 330 x 372 x 603mm |
Weight
| 21kg |
Temperature min./max.
| 2° - 35°C |
Options
Cat No |
Vendor Part No |
Description |
Qty/UOM |
Price |
Qty |
UOM |
D607-9 |
22.0046 |
RO Membrane for Pacific RO 3, 7, 12 and 20L/hr. models |
In Stock |
1 |
$678.00 |
|
EA |
D607-10 |
22.0087 |
RO Membrane for Pacific RO 40L/hr. models (must order 2) |
In Stock |
1 |
$190.00 |
|
EA |
D607-32 |
06.5063 |
60L Bench-top Storage Tank with Level Display |
In Stock |
1 |
Inquire |
|
EA |
D607-33 |
06.5083 |
100L Bench-top Storage Tank with Level Display |
In Stock |
1 |
Inquire |
|
EA |
D626-85 |
06.5001 |
Sterile Overflow for Storage Tank, 30-100L |
In Stock |
1 |
$235.00 |
|
EA |
D607-37 |
50135142 |
Sterile Vent Filter for Storage Tank, 30-100L |
In Stock |
1 |
$409.00 |
|
EA |
D626-87 |
06.5015 |
Wall-mounting for Storage Tank, 30L |
In Stock |
1 |
$432.00 |
|
EA |
D626-88 |
06.5016 |
Wall-mounting for Storage Tank, 60L |
In Stock |
1 |
$432.00 |
|
EA |
D613-15 |
CMX25 |
Cleaning Syringe |
In Stock |
1 |
$70.50 |
|
EA |
D607-39 |
06.5201 |
Combi Cartridge, 5µm + Activated Carbon - 10" (required for hard feed water) |
In Stock |
1 |
$175.00 |
|
EA |
D607-30 |
06.5452 |
Hardness Stabilizing Unit - 10" (for Pre-treatment #D607-38) |
In Stock |
1 |
$207.00 |
|
EA |
D607-38 |
09.4000 |
Double Pre-treatment System with two 10" Housings, Combi Cartridge (5µm filter with activated carbon), and Hardness Stabilizer Cartridge |
In Stock |
1 |
$950.00 |
|
EA |
D626-92 |
50138221 |
Remote Dispenser |
In Stock |
1 |
$1,460.00 |
|
EA |
