PCR Chambers

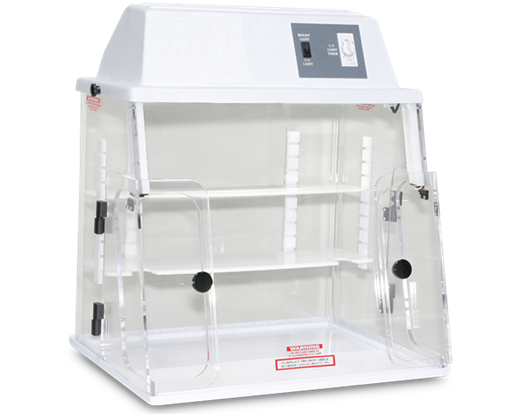

The 825-UVC model (P825-1) is designed to help improve the accuracy of P.C.R. and general tissue culture procedures. The chance for air borne contamination during D.N.A. sequencing is greatly reduced.
The chamber is a “still air enclosure” which contains both our “Bright Light” illumination system and a U.V. germicidal lamp. The U.V. germicidal system is rated at 254nm and will decontaminate all exposed surfaces in the interior. The lamp timer should be activated 15 minutes before and 15 minutes after each use. The front viewing panel and main housing are .375 inch (9.5mm) thick optically clear material. This thickness helps to prolong the service life (about 2,500 operating hours) of the unit. The front viewing panel is attached by six (6) screws and is easily and quickly replaced, if needed. Access to the interior of the chamber is gained by pulling swinging doors outward.
New self closing hinges have eliminated the need for locks. The doors are removable, therefore do not take up valuable lab counter space. If a corner door is accidently opened, proximity sensors turn off the U.V. system for operator safety.

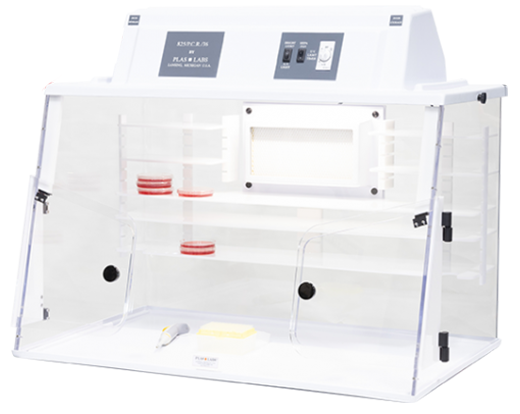

The new PCR Chamber. The 36" wide 825-PCR/HEPA/36 is latest product to the line of PCR Chambers. The 825-PCR/HEPA/36 (P825-3) includes many of the same features as our standard PCR Chambers, but includes nine (9) cubic feet of capacity, eight (8) adjustable interior shelves, larger HEPA filter, and extra large U.V. emiting light for increased sterilization.
