Pumps, Chemistry-Hybrid Pump, BrandTech®
Chemistry-HYBRID Pumps

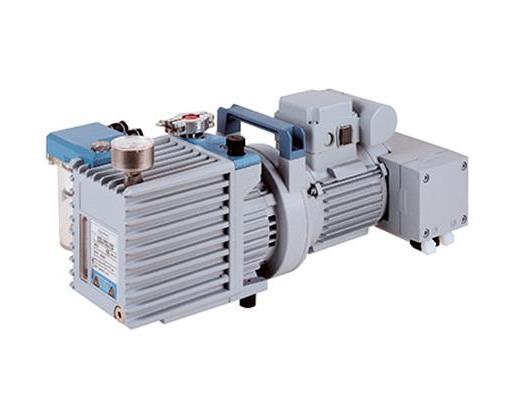

The RC 6 chemistry-HYBRID Vacuum Pump combines rotary vane and diaphragm vacuum pump technology to support applications in the fine vacuum range with dramatically reduced service demands. In the RC 6, a chemistry-design diaphragm pump is used to back the rotary vane pump. This arrangement keeps the pump oil under vacuum, reducing oil changes by as much as 90% when compared with traditional rotary vane pumps. A vacuum gauge at the pump outlet provides visual confirmation. The RC 6 can often reduce bi-weekly oil changes to semi-annual or even annual changes! Reduced service costs and pump downtime offer dramatic lifetime operating cost savings.
- Full chemistry-design diaphragm backing pump
- Gauge to indicate proper function of backing pump
- Restriction-free, high-flow inlet to ensure high flow rates under vacuum
- Integrated oil-mist filter
|
Model
|
Ultimate Vacuum
mbar
|
Free Air Capacity
at 60Hz
|
Flange Inlet
Connection
|
Outlet Connection
(hose barb)
|
Power
|
|
w/o gas ballast
|
w/ gas ballast
|
cfm
|
lpm
|
|
RC 6
|
2 x 10-3
|
1 x 10-2
|
4.1
|
115
|
KF 16
|
10mm
|
120V, 60Hz
|
