Refrigerator, Chromatography, General Purpose, GP Series, Thermo Scientific™

home > refrigerators & freezers > refrigerator, chromatography, general purpose, gp series, thermo scientific™
Print Recently Viewed


You have not viewed any products recently.

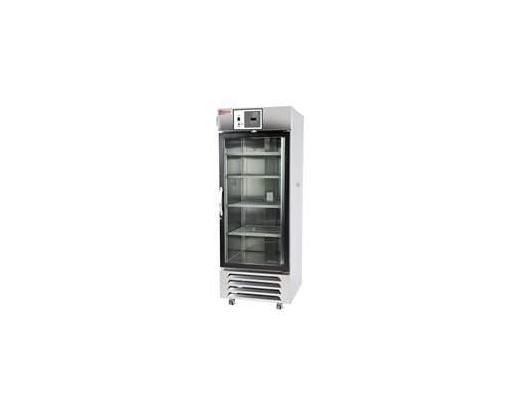

r230-73 -90 gp chromatography refrigerators 2
View Larger

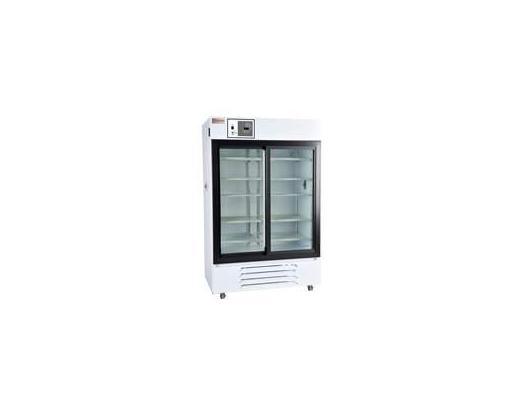

r230-73 -90 gp chromatography refrigerators 2
  • r230-73 -90 gp chromatography refrigerators 1
  • r230-73 -90 gp chromatography refrigerators 2

  • alt view name
  • alt view name

Refrigerator, Chromatography, General Purpose, GP Series, Thermo Scientific™

Thermo Scientific™ General Purpose (GP) Series Chromatography Refrigerators combine performance and security required for everyday chromatography applications.
  • Capacities from 27 cu.ft to 72 cu.ft
  • Range of sizes: from single-door to large-capacity, three-door uprights
  • Choice of painted or stainless interior
GSA



Capped 2 inch I.D. (5.1cm) access portholes in each side wall permit the insertion of thermocouples and other wiring without disturbing temperature settings. Push-button lights and circuit breaker-protected duplex electrical receptacles simplify equipment operation and allow observation of ongoing separations.

Performance
  • Refrigerator cabinet temperature range: 1° to 12°C (factory setpoint 4°C)
  • Excellent temperature stability of ±3°C
  • Bright digital display
  • Automatic defrost
Security
  • Optional chart recorder
  • High/low temperature alarms
  • Keyed on/off switch
  • Door ajar alarm (except sliding glass door models)
Quality
  • Painted, high-quality steel exterior
  • Choice of painted or stainless steel interior
  • Two 2-inch side access ports
  • Energy-efficient, double pane, argon-filled glass doors
  • Interior duplex outlet
  • Certifications: UL listed

Ordering Alerts: For 115V 60Hz. Equipped with NEMA 5-20P line cord plug; require a NEMA 5-20R receptacle.

Specifications
Style Upright
Temperature Range 1° to 12°C
Refrigerant R-134A
Condenser Type Fin and Tube
Defrost Automatic
Casters No
Insulation Polyurethane foam
Plug Type NEMA 5-15
Electrical Requirements 115V 60Hz







Cat. No. Capacity Interior D x W x H Exterior L x W x H Monitoring Options Door[s]/Shelves Amperage Shipping Weight
Stainless-steel cabinet with stainless-steel liner
R230-73 27 cu. ft. 28.5x27x61.75 in. 32x30x78  in. (Add 1 3/4" to Depth for handle) Alarms Only Glass door, single/Gray – 4 Wire 5.8A 300 lb.
R230-74 27 cu. ft. 28.5x27x61.75 in. 32x30x78  in. (Add 1 3/4" to Depth for handle) Alarms and Recorder Glass door, single/Gray – 4 Wire 5.8A 300 lb.
R230-75 45 cu. ft. 27x48.63x61.75 in. 32x52x78 in. Alarms Only Sliding glass door, double/Gray – 8 Wire 8.8A 561 lb.
R230-76 45 cu. ft. 27x48.63x61.75 in. 32x52x78 in. Alarms and Recorder Sliding glass door, double/Gray – 8 Wire 8.8A 561 lb.
R230-77 49 cu. ft. 28.5x48.63x61.75 in. 32x52x78  in. (Add 1 3/4" to Depth for handle) Alarms Only Glass door, double/Gray – 8 Wire 8.8A 597 lb.
R230-78 49 cu. ft. 28.5x48.63x61.75 in. 32x52x78  in. (Add 1 3/4" to Depth for handle) Alarms and Recorder Glass door, double/Gray – 8 Wire 8.8A 597 lb.
R230-79 72 cu. ft. 28.5x72x61.75 in. 32x75x78  in. (Add 1 3/4" to Depth for handle) Alarms Only Glass door, triple/Gray – 12 Wire 9.9A 730 lb.
R230-80 72 cu. ft. 28.5x72x61.75 in. 32x75x78  in. (Add 1 3/4" to Depth for handle) Alarms and Recorder Glass door, triple/Gray – 12 Wire 9.9A 730 lb.
White painted cabinet with white liner
R230-81 27 cu. ft. 28.5x27x61.75 in. 32x30x78 in. Alarms Only Glass door, single/White – 4 Wire 5.8A 300 lb.
R230-82 27 cu. ft. 28.5x27x61.75 in. 32x30x78 in. Alarms and Recorder Glass door, single/White – 4 Wire 5.8A 300 lb.
R230-83 38 cu. ft. 27x40.5x61.75 in. 32x43.5x78 in. Alarms Only Sliding glass door, double/White – 8 Wire 8.8A 524 lb.
R230-84 38 cu. ft. 27x40.5x61.75 in. 32x43.5x78 in. Alarms and Recorder Sliding glass door, double/White – 8 Wire 8.8A 524 lb.
R230-85 45 cu. ft. 27x48.63x61.75 in. 32x52x78 in. Alarms Only Sliding glass door, double/White – 8 Wire 8.8A 561 lb.
R230-86 45 cu. ft. 27x48.63x61.75 in. 32x52x78 in. Alarms and Recorder Sliding glass door, double/White – 8 Wire 8.8A 561 lb.
R230-87 49 cu. ft. 28.5x48.63x61.75 in. 32x52x78 in. Alarms Only Glass door, double/White – 8 Wire 8.8A 597 lb.
R230-88 49 cu. ft. 28.5x48.63x61.75 in. 32x52x78 in. Alarms and Recorder Glass door, double/White – 8 Wire 8.8A 597 lb.
R230-89 72 cu. ft. 28.5x72x61.75 in. 32x75x78 in. Alarms Only Glass door, triple/White – 12 Wire 9.9A 730 lb.
R230-90 72 cu. ft. 28.5x72x61.75 in. 32x75x78 in. Alarms and Recorder Glass door, triple/White – 12 Wire 9.9A 730 lb.




GSA Link

Ordering Info

Cat No Vendor Part No CapacityInterior FinishChart RecorderDoor(s)/ShelvesPower Qty Price Qty UOM
R230-74 MH30SS-GARE-TS 27 cu.ftStainless SteelYesSingle Glass Door / 4 Shelves115V, 60 Hz In Stock 1 $11,875.00 EA
R230-75 MH45SS-GAEE-TS 45 cu.ftStainless SteelNoDouble Sliding Glass Door / 8 Shelves115V, 60 Hz In Stock 1 $10,058.00 EA
R230-76 MH45SS-GARE-TS 45 cu.ftStainless SteelYesDouble Sliding Glass Door / 8 Shelves115V, 60 Hz In Stock 1 $13,109.00 EA
R230-77 MH49SS-GAEE-TS 49 cu.ftStainless SteelNoDouble Glass Door / 8 Shelves115V, 60 Hz In Stock 1 $11,147.00 EA
R230-78 MH49SS-GARE-TS 49 cu.ftStainless SteelYesDouble Glass Door / 8 Shelves115V, 60 Hz In Stock 1 $13,124.00 EA
R230-79 MH72SS-GAEE-TS 72 cu.ftStainless SteelNoTriple Glass Door / 12 Shelves115V, 60 Hz In Stock 1 $16,530.00 EA
R230-80 MH72SS-GARE-TS 72 cu.ftStainless SteelYesTriple Glass Door / 12 Shelves115V, 60 Hz In Stock 1 $17,814.00 EA
R230-81 MH30PA-GAEE-TS 27 cu.ftWhite PaintedNoSingle Glass Door / 4 Shelves115V, 60 Hz In Stock 1 $7,342.00 EA
R230-82 MH30PA-GARE-TS 27 cu.ftWhite PaintedYesSingle Glass Door / 4 Shelves115V, 60 Hz In Stock 1 $10,111.00 EA
R230-83 MH38PA-GAEE-TS 38 cu.ftWhite PaintedNoDouble Sliding Glass Door / 8 Shelves115V, 60 Hz In Stock 1 $8,427.00 EA
R230-84 MH38PA-GARE-TS 38 cu.ftWhite PaintedYesDouble Sliding Glass Door / 8 Shelves115V, 60 Hz In Stock 1 $9,516.00 EA
R230-85 MH45PA-GAEE-TS 45 cu.ftWhite PaintedNoDouble Sliding Glass Door / 8 Shelves115V, 60 Hz In Stock 1 $8,972.00 EA
R230-86 MH45PA-GARE-TS 45 cu.ftWhite PaintedYesDouble Sliding Glass Door / 8 Shelves115V, 60 Hz In Stock 1 $10,197.00 EA
R230-87 MH49PA-GAEE-TS 49 cu.ftWhite PaintedNoDouble Glass Door / 8 Shelves115V, 60 Hz In Stock 1 $9,377.00 EA
R230-88 MH49PA-GARE-TS 49 cu.ftWhite PaintedYesDouble Glass Door / 8 Shelves115V, 60 Hz In Stock 1 $12,356.00 EA
R230-89 MH72PA-GAEE-TS 72 cu.ftWhite PaintedNoTriple Glass Door / 12 Shelves115V, 60 Hz In Stock 1 $11,828.00 EA
R230-90 MH72PA-GARE-TS 72 cu.ftWhite PaintedYesTriple Glass Door / 12 Shelves115V, 60 Hz In Stock 1 $15,246.00 EA
